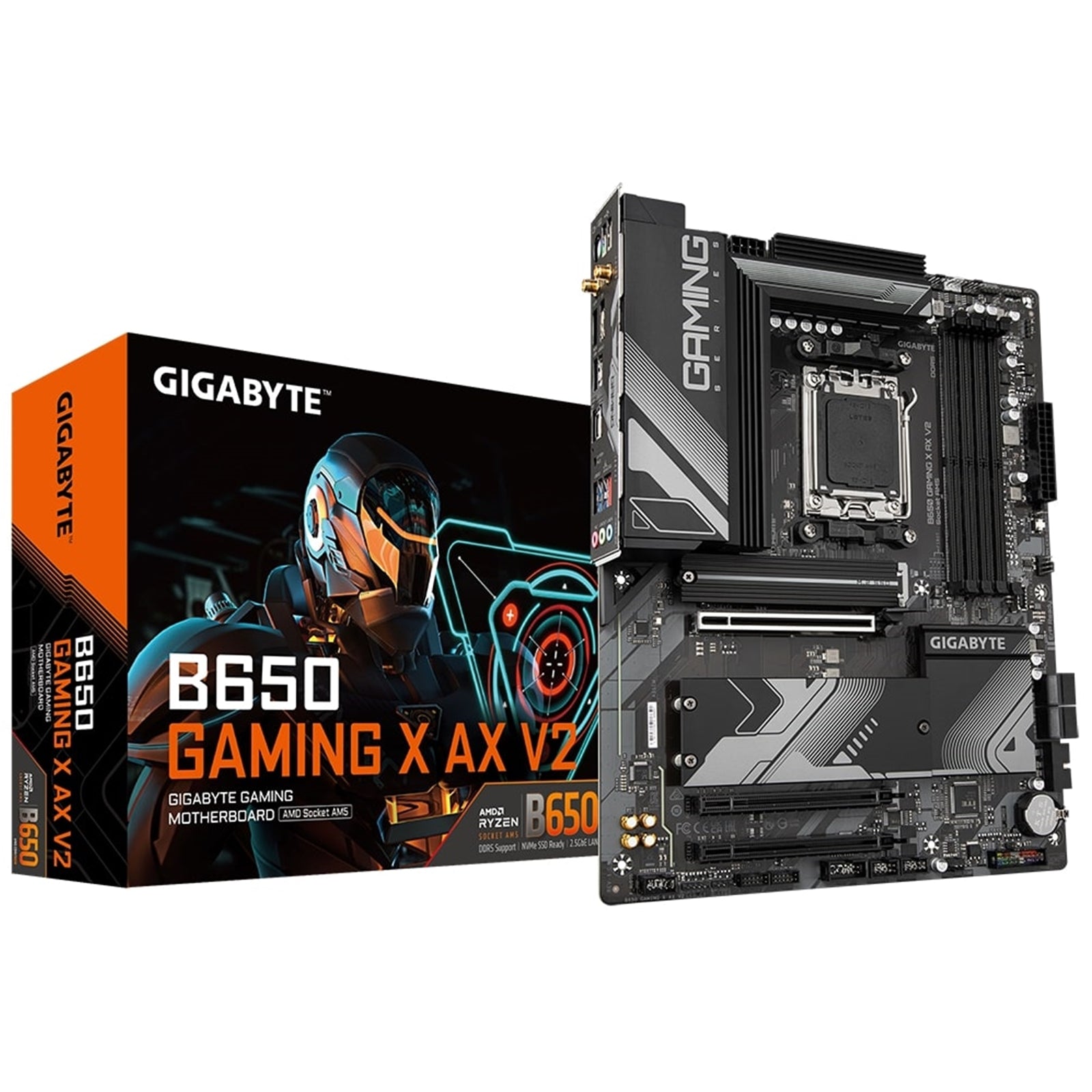

Gigabyte B650 GAMING X AX V2 AMD AM5 Socket Motherboard, ATX, 4x DDR5 Slots, 3x M.2 Sockets, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port
Future Connectivity: The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage Hi-Fi Audio: High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard: GIGABYTE motherboards feature an audio noise guard that essentially separates the boards sensitive analog audio components from potential noise pollution at the PCB level. Smart Fan 6: Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard H/W Monitoring: Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control Unique Features: Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash Plus Bundled Software: Norton Internet Security (OEM version)LAN bandwidth management software
Specs
Processor
| Chipset | AMD B650 |
| Memory | Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor AMD Radeon Graphics support:1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
Memory
| EXPO & XMP Support | DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond |
BIOS
| Smart Fan 6 BIOS UI | Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.Manual Input: For advanced users, we provide fan speed manual input for more precise control.EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Expansion Slots
| PCIe 4.0 Hardware Design | GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. |
Network
| 802.11ax Wi-Fi 6E | The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. |
| 2.5GbE LAN | Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition. |
| Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 modeThe PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices |
Rear Panel I/O Ports
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header2 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x reset button1 x reset jumper1 x Clear CMOS jumper |
| Back Panel Connectors | 2 x SMA antenna connectors (2T2R)1 x Q-Flash Plus button1 x DisplayPort1 x HDMI port1 x USB Type-C port, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red)3 x USB 3.2 Gen 1 ports3 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
Other
| Digital VRM Design | 8+2+2 Phases Digital VRM Solution |
| Thermal | Fully Covered MOSFET Heatsink |
| Cooling Features | High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current ProtectionPrecision Control: Multiple temperature/fan speed control points for precise fan curveDual Curve Mode: Slope/Stair dual mode for different user scenarioFan Stop: Fan can stop completely below users' specified temperature point |
