Key Features
- Supports Intel 14th, 13th & 12th Gen Processors
- Intel B760 Express Chipset
- PCIe 5.0 x16 Graphics Slot with EZ-Latch Design
- 4 x DDR4 DIMM Slots Supporting up to 128GB
- DDR4 Memory Support up to 5333MHz (OC)
- Dual PCIe 4.0 x4 M.2 Connectors
- 2.5GbE High-Speed LAN
- Front USB-C 10Gb/s Connectivity
Product Description
Built for Modern Intel Gaming Systems

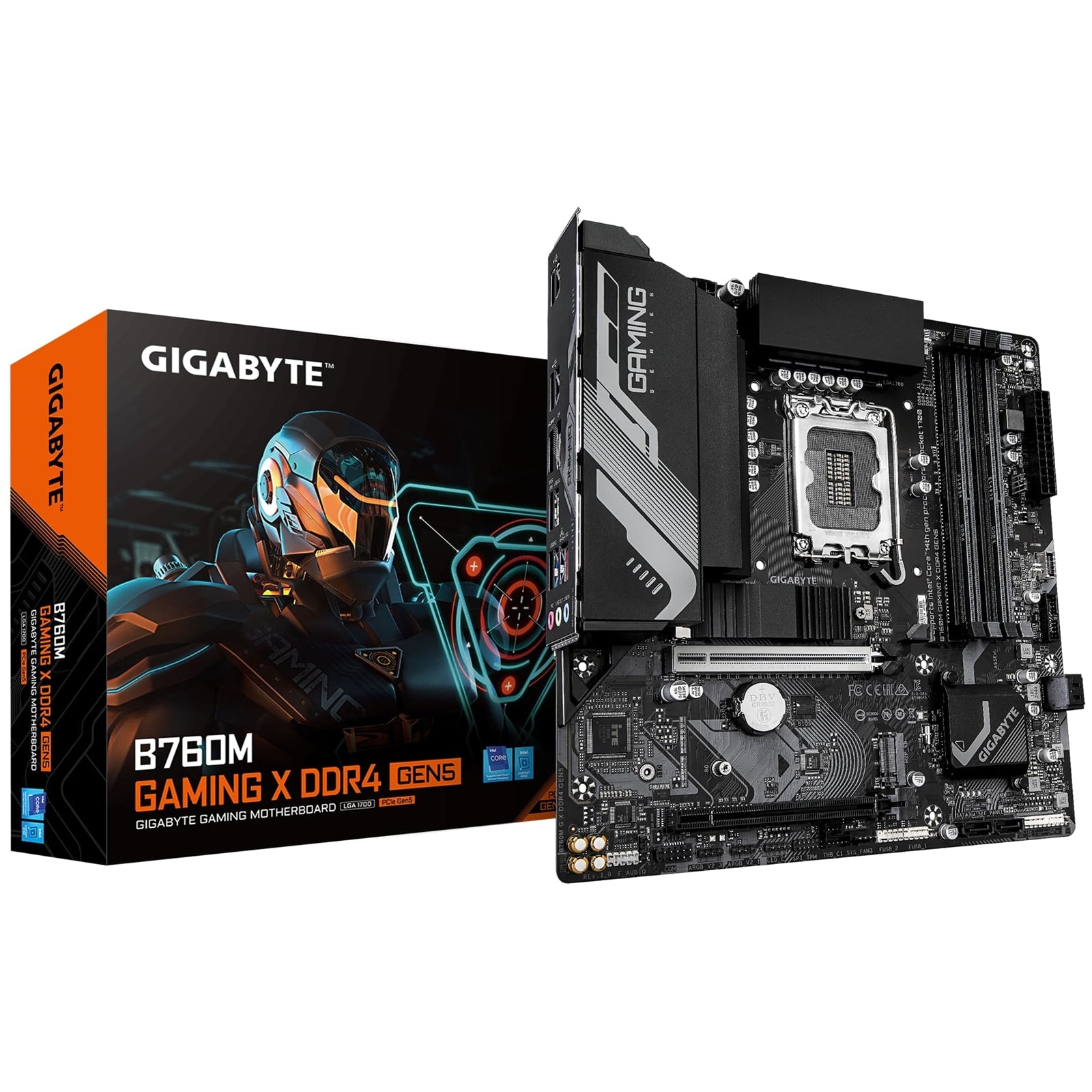

The Gigabyte B760M Gaming X DDR4 Gen5 delivers a powerful platform for gaming, content creation and productivity. Built around the Intel B760 chipset and featuring support for Intel's latest 14th, 13th and 12th Generation processors, it combines reliable power delivery, next-generation connectivity and PCIe Gen5 support in a compact Micro ATX form factor.
PCIe Gen5 Ready
Equipped with a reinforced PCIe 5.0 x16 slot and EZ-Latch quick release design, the motherboard is ready for modern high-performance graphics cards. Gigabyte's PCIe UD Slot armour enhances durability and provides improved support for larger GPUs.
High-Speed DDR4 Memory Support
Support for up to 128GB of DDR4 memory and memory overclocking up to 5333MHz allows users to maximise performance while maintaining excellent value when compared to newer DDR5 platforms.
Advanced Cooling Design
The VRM Thermal Armor, M.2 Thermal Guard and Smart Fan 6 technologies work together to help maintain stable temperatures under load, ensuring reliable system operation during gaming and intensive workloads.
Fast Storage & Connectivity
Dual PCIe 4.0 M.2 slots, 2.5Gb Ethernet networking and USB-C 10Gb/s connectivity provide fast storage access, low-latency networking and modern peripheral support.
Main Benefits
-
Intel LGA1700 Support: Ready for 14th, 13th and 12th Gen CPUs.
-
PCIe 5.0 Graphics Slot: Supports modern graphics cards.
-
DDR4 Platform: Excellent balance of performance and value.
-
Dual M.2 PCIe 4.0: Fast NVMe SSD support.
-
2.5GbE LAN: High-speed wired networking.
-
Smart Fan 6: Intelligent cooling management.
-
Q-Flash Plus: BIOS updates without CPU installation.
-
Micro ATX Form Factor: Compact build compatibility.
General Specifications
| Specification |
Details |
| Manufacturer |
Gigabyte |
| Model |
B760M Gaming X DDR4 Gen5 |
| Chipset |
Intel B760 Express |
| CPU Socket |
LGA1700 |
| Form Factor |
Micro ATX |
| Dimensions |
244 x 244 mm |
Processor Support
| Specification |
Details |
| 14th Gen Intel Core |
Supported |
| 13th Gen Intel Core |
Supported |
| 12th Gen Intel Core |
Supported |
| Intel Pentium Gold |
Supported |
| Intel Celeron |
Supported |
Memory Specifications
| Specification |
Details |
| Memory Type |
DDR4 |
| Memory Slots |
4 x DIMM |
| Maximum Capacity |
128GB |
| Channel Support |
Dual Channel |
| Maximum Speed |
DDR4-5333MHz (OC) |
| XMP Support |
Yes |
Expansion Slots
| Specification |
Details |
| PCIe 5.0 x16 |
1 |
| PCIe 3.0 x16 (x4 Mode) |
1 |
| EZ-Latch Quick Release |
Yes |
| PCIe UD Armour |
Yes |
Storage Specifications
| Specification |
Details |
| M.2 PCIe 4.0 Slots |
2 |
| SATA 6Gb/s Ports |
4 |
| RAID Levels |
0 / 1 / 5 / 10 |
| NVMe Support |
Yes |
Networking Specifications
| Specification |
Details |
| LAN Controller |
Realtek 2.5GbE |
| Ethernet Speeds |
2.5Gbps / 1Gbps / 100Mbps |
| Wireless LAN |
Not Included |
Audio Specifications
| Specification |
Details |
| Audio Codec |
Realtek HD Audio Codec |
| Audio Channels |
2 / 4 / 5.1 / 7.1 Channel |
| S/PDIF Support |
Yes |
Graphics Outputs
| Connection |
Specification |
| HDMI |
Up to 4096 x 2160 @ 60Hz |
| DisplayPort |
Up to 4096 x 2304 @ 60Hz |
| Integrated Graphics |
CPU Dependent |
Rear Panel Connectivity
| Connection |
Quantity |
| USB 3.2 Gen 1 |
3 |
| USB 2.0 |
5 |
| HDMI |
1 |
| DisplayPort |
1 |
| 2.5Gb LAN |
1 |
| Audio Jacks |
3 |
Internal Connectivity
| Specification |
Details |
| 24-Pin ATX Power |
1 |
| 8-Pin CPU Power |
1 |
| USB-C 3.2 Gen2 Header |
1 |
| USB 3.2 Gen1 Header |
1 |
| USB 2.0 Headers |
2 |
| System Fan Headers |
3 |
| CPU Fan Header |
1 |
| RGB Headers |
1 |
| Addressable RGB Headers |
3 |
Special Features
- PCIe Gen5 Graphics Support
- Hybrid 8+1+1 Digital VRM Design
- VRM Thermal Armor
- M.2 Thermal Guard
- Smart Fan 6 Cooling Control
- Q-Flash Plus BIOS Update Utility
- EZ-Latch PCIe Release Mechanism
- Front USB-C 10Gb/s Connectivity
Package Contents
- Gigabyte B760M Gaming X DDR4 Gen5 Motherboard
- User Documentation
- SATA Cables
- Installation Accessories
Operating System Support
| Operating System |
Support |
| Windows 11 64-bit |
Supported |
| Windows 10 64-bit |
Supported |
Product Identifiers
| Identifier |
Value |
| Brand |
Gigabyte |
| Model |
B760M Gaming X DDR4 Gen5 |
| Chipset |
Intel B760 |
| Socket |
LGA1700 |
| Memory Support |
DDR4 up to 5333MHz (OC) |
| Network |
2.5GbE LAN |
| Storage |
2 x PCIe 4.0 M.2, 4 x SATA |
| Form Factor |
Micro ATX |
