Description

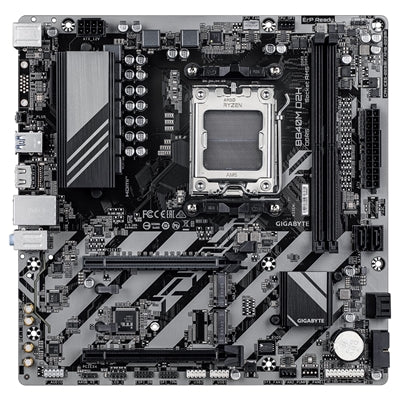

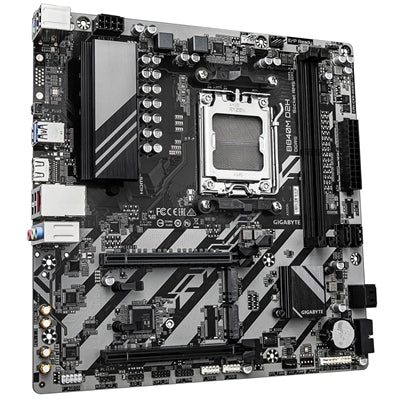

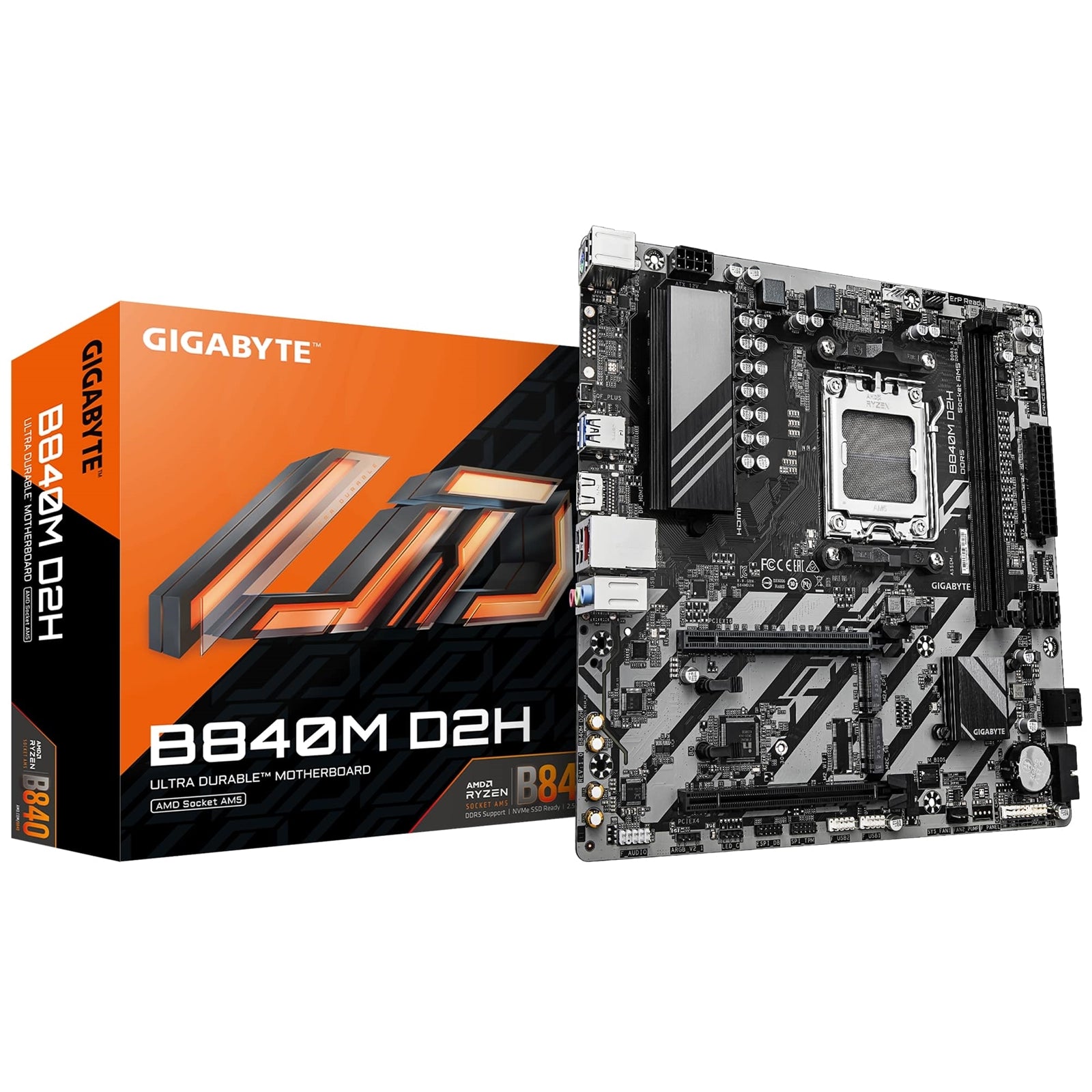

GIGABYTE B840M D2H AMD AM5 Micro-ATX Motherboard, 2x DDR5, 2x M.2, 2.5GbE LAN, 1x HDMI
GIGABYTE B840M D2H AMD AM5 Micro-ATX Motherboard Overview The GIGABYTE B840M D2H is a compact Micro-ATX motherboard built for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform. With X3D Turbo Mode support, a 5+2+2 phase digital VRM, dual DDR5 slots with EXPO and XMP support up to 7600MHz (OC), and two M.2 slots including one PCIe 4.0 x4, it delivers capable performance in a small footprint. Fast 2.5GbE networking, a clean BIOS with multi-theme UI, AIO fan control, and Q-Flash Auto Scan make this an excellent choice for compact builds that don't compromise on essentials. Key Features - AMD AM5 socket — Ryzen 7000 / 8000 / 9000 Series- X3D Turbo Mode for AMD Ryzen X3D CPUs- 5+2+2 Phase Digital VRM- 2x DDR5 DIMM slots, up to 128GB, up to 7600MHz (OC)- AMD EXPO & XMP memory support- 1x PCIe x16 slot with EZ-Latch- 2x M.2 slots (1x PCIe 4.0 x4)- Realtek 2.5GbE LAN- 1x HDMI display output (AMD Radeon integrated graphics)- AMI UEFI BIOS — 256Mbit flash- Multi-theme BIOS UI with AIO fan control & Q-Flash Auto Scan What's Included - GIGABYTE B840M D2H Motherboard- SATA cables- M.2 screws- Quick installation guide Processor & Chipset Socket AMD AM5 Chipset AMD B840 Compatible CPUs AMD Ryzen 7000 / 8000 / 9000 Series VRM 5+2+2 Phase Digital Form Factor Micro-ATX BIOS AMI UEFI — 256Mbit flash Memory Memory Type DDR5 Dual-Channel Memory Slots 2x DIMM Max Memory 128GB (64GB per slot) Max Speed (OC) DDR5-7600 Profile Support AMD EXPO & XMP Storage & Expansion PCIe x16 Slot 1x (EZ-Latch) M.2 Slots 2x (1x PCIe 4.0 x4) Connectivity & I/O LAN Realtek 2.5GbE Display Output 1x HDMI (AMD Radeon iGPU) Other OS Support Windows 10 / 11 (64-bit) SKU B840M D2H
