Description
GIGABYTE B840M EAGLE WIFI6 AMD AM5 Micro-ATX Motherboard, 2x DDR5, 2x M.2, Wi-Fi 6, 2.5GbE LAN

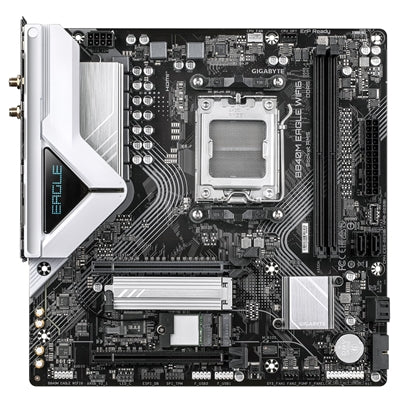

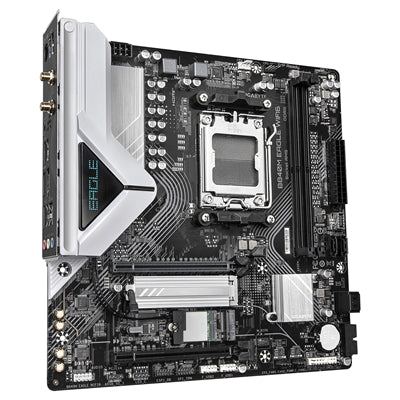

GIGABYTE B840M EAGLE WIFI6 AMD AM5 Micro-ATX Motherboard Overview The GIGABYTE B840M EAGLE WIFI6 is a Micro-ATX motherboard built for AMD Ryzen 7000, 8000, and 9000 Series processors on the AM5 platform. With X3D Turbo Mode, a 5+2+2 phase digital VRM, dual DDR5 slots with EXPO and XMP support up to 7600MHz (OC), Wi-Fi 6, and 2.5GbE LAN, it packs a strong feature set into a compact form factor. EZ-Latch on both the PCIe x16 slot and M.2 heatsinks enables screwless, tool-free installation. VRM Thermal Armor Advanced and M.2 Thermal Guard keep temperatures in check, while Q-Flash Auto Scan and a multi-theme BIOS UI make setup and tuning straightforward. Key Features - AMD AM5 socket — Ryzen 7000 / 8000 / 9000 Series- X3D Turbo Mode for AMD Ryzen X3D CPUs- 5+2+2 Phase Digital VRM with VRM Thermal Armor Advanced- 2x DDR5 DIMM slots, up to 128GB, up to 7600MHz (OC)- AMD EXPO & XMP memory support- 1x PCIe x16 UD Slot (10x strength, EZ-Latch)- 2x M.2 slots with EZ-Latch & M.2 Thermal Guard- Realtek 2.5GbE LAN- Wi-Fi 6 (802.11ax)- 1x HDMI & 1x DisplayPort rear output (AMD Radeon iGPU)- Fitted I/O shield- AMI UEFI BIOS — 256Mbit, multi-theme UI, Q-Flash Auto Scan What's Included - GIGABYTE B840M EAGLE WIFI6 Motherboard- Fitted I/O shield- Wi-Fi antenna- SATA cables- M.2 screws- Quick installation guide Processor & Chipset Socket AMD AM5 Chipset AMD B840 Compatible CPUs AMD Ryzen 7000 / 8000 / 9000 Series VRM 5+2+2 Phase Digital Form Factor Micro-ATX BIOS AMI UEFI — 256Mbit flash Memory Memory Type DDR5 Dual-Channel Memory Slots 2x DIMM Max Memory 128GB (64GB per slot) Max Speed (OC) DDR5-7600 Profile Support AMD EXPO & XMP Storage & Expansion PCIe x16 Slot 1x PCIe UD Slot (10x strength, EZ-Latch) M.2 Slots 2x (EZ-Latch, M.2 Thermal Guard) Networking & Wireless LAN Realtek 2.5GbE Wi-Fi Wi-Fi 6 (802.11ax) Rear I/O Display Output 1x HDMI, 1x DisplayPort (AMD Radeon iGPU) I/O Shield Fitted (pre-installed) Other OS Support Windows 10 / 11 (64-bit) SKU B840M EAGLE WIFI6
