Description

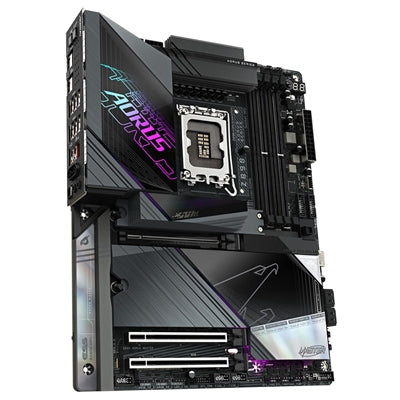

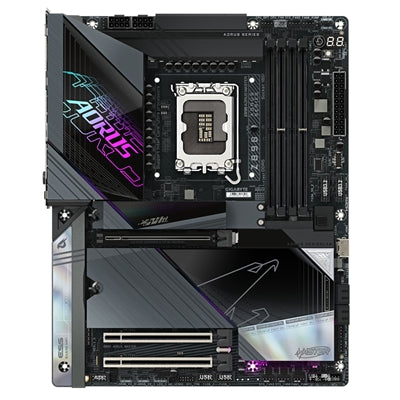

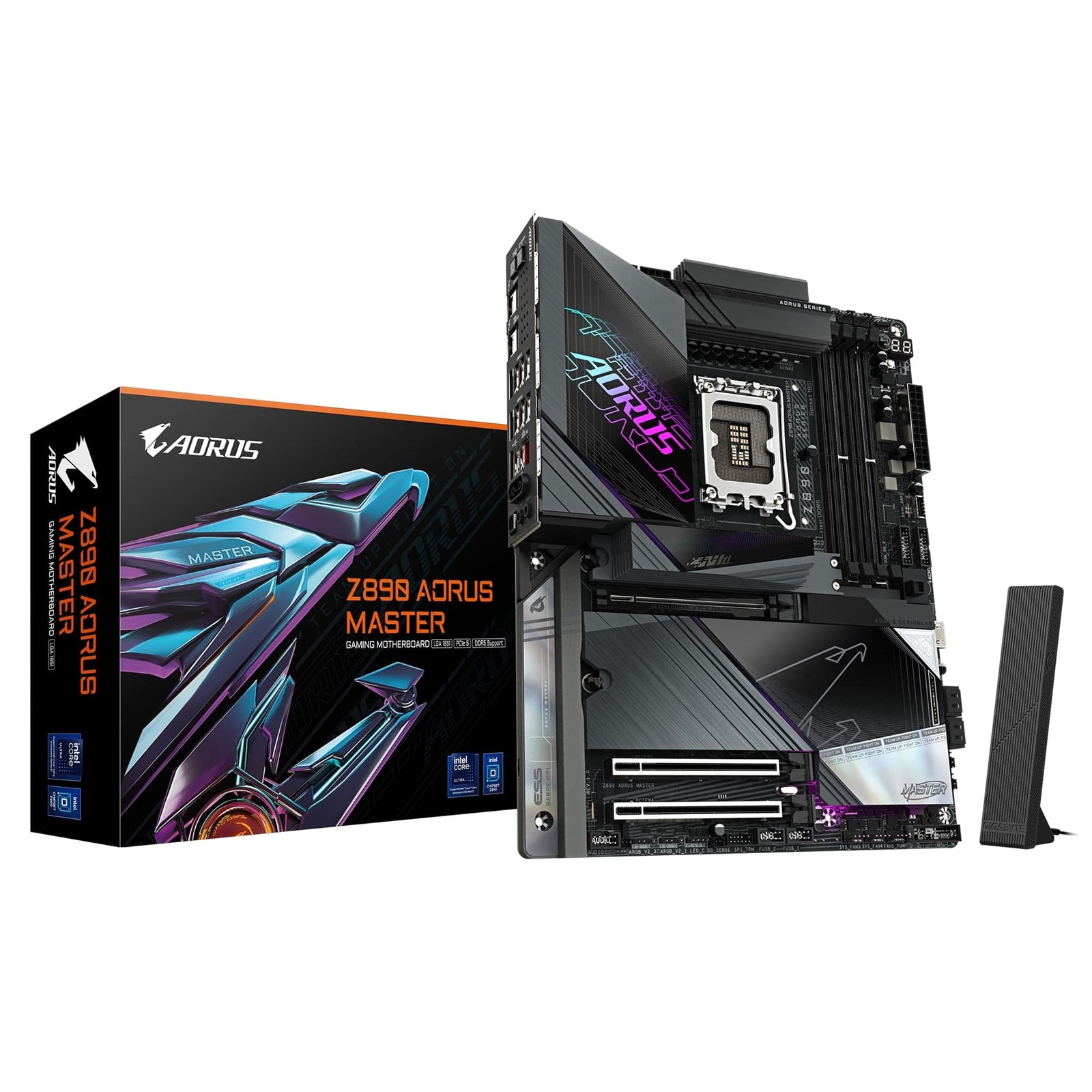

GIGABYTE Z890 AORUS MASTER Intel LGA1851 ATX Motherboard, 4x DDR5, 5x M.2, 2x PCIe 5.0, Wi-Fi 7, 10GbE LAN
Z890 AORUS MASTER
Specs
Processor
| Chipset | - Intel® Z890 Express Chipset |
| Memory | Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesSupport CUDIMM memory module |
BIOS
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputsWhen a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
Network
| Wireless LAN | Intel® Wi-Fi 7 BE200NGW- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 320MHz wireless standard |
| Slots | CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| Chipset: | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1) |
Rear Panel I/O Ports
| Connector | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers4 x system fan/water cooling pump headers4 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header5 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x HDMI port (Note)1 x power button1 x reset button1 x reset jumper1 x Clear CMOS jumper2 x temperature sensor headersVoltage Measurement Points |

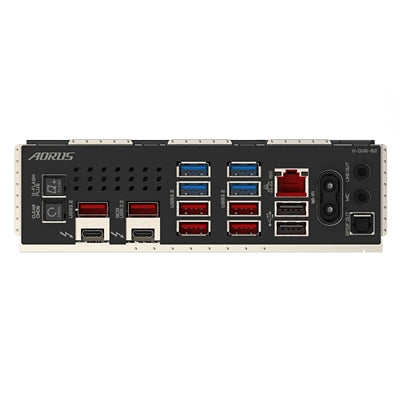

| Rear Panel I/O | 1 x Q-Flash Plus button1 x Clear CMOS button2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)6 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| OS | Support for Windows 11 64-bit |
