MSI GT 710 2GD3H LP — 2GB GDDR3
Overview
The MSI GT 710 2GD3H LP is a compact, low-profile graphics card designed for basic multimedia, office, and low-power systems. Featuring NVIDIA GeForce GT 710 architecture, 2GB of GDDR3 memory, and passive cooling, it is ideal for silent PCs and small form factor builds.
Key Features
All Solid Capacitors: Designed for durability with up to 10-year lifespan under full load, improved efficiency, and low ESR.
Passive Cooling: Large heatsink ensures silent operation — perfect for quiet builds.
Low Profile Design: Saves space and fits easily into compact systems.
Afterburner Utility: Supports video capture, mobile control, and DirectX 12 testing tools.
Performance & Usage
With 192 CUDA cores and a 954 MHz core clock, the GT 710 is suited for everyday tasks such as HD video playback, office workloads, and light graphical applications. It supports resolutions up to 4096×2160, enabling 4K output for modern displays.
Connectivity

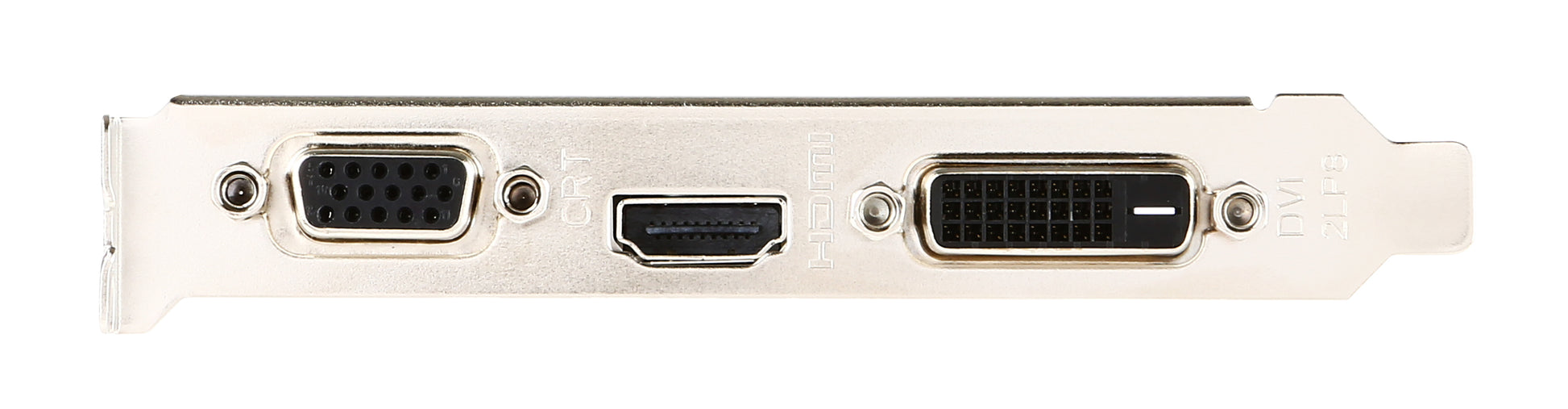

Includes HDMI, DVI-D, and VGA outputs, allowing flexible connectivity for multiple display types. Uses PCI Express x16 2.0 interface for compatibility with a wide range of systems.
Cooling & Design
Equipped with passive cooling (fanless), this GPU operates silently. The low-profile form factor makes it ideal for slim and HTPC builds.
Technical Specifications
Processor
| GPU Family | NVIDIA |
| Graphics Processor | GeForce GT 710 |
| CUDA | Yes |
| CUDA Cores | 192 |
| Core Clock | 954 MHz |
| Max Resolution | 4096 × 2160 |
Memory
| VRAM | 2 GB |
| Memory Type | GDDR3 |
| Memory Bus | 64-bit |
| Memory Clock | 1600 MHz |
Connectivity
| Interface | PCI Express x16 2.0 |
| HDMI | 1 (v1.4a) |
| DVI-D | 1 |
| VGA | 1 |
| DisplayPort | 0 |
Performance & API
| DirectX | 12.0 |
| OpenGL | 4.5 |
| HDCP | Yes |
| TV Tuner | No |
Power
| Min PSU | 300 W |
| Power Consumption | 19 W |
Design & Dimensions
| Cooling | Passive |
| Form Factor | HH/HL Low Profile |
| Colour | Black |
| Length | 146 mm |
| Height | 69 mm |
| Depth | 19 mm |
| Weight | 178 g |
