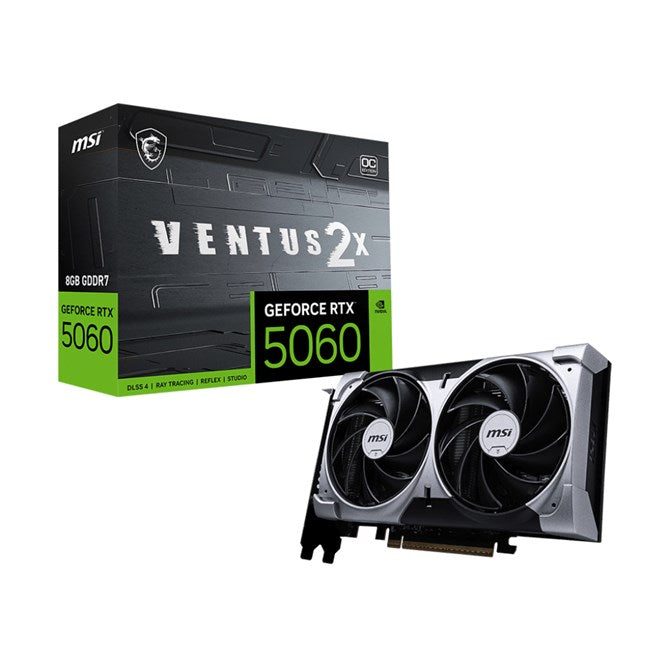

MSI GeForce RTX 5060 8G VENTUS 2X OC Graphics Card (8GB GDDR7)
Overview
The MSI GeForce RTX 5060 VENTUS 2X OC is a next-generation graphics card designed to deliver high-performance gaming and content creation. Built with advanced NVIDIA architecture and GDDR7 memory, it combines powerful processing, efficient cooling, and a compact design ideal for a wide range of PC builds.
Key Features
- NVIDIA GeForce RTX 5060 GPU
- 8GB next-generation GDDR7 memory
- Dual TORX FAN 5.0 cooling system
- PCIe 5.0 interface for maximum bandwidth
- Supports up to 4 displays
- 8K resolution output (7680 × 4320)
- Compact SFF-ready design
- MSI Afterburner and MSI Center support
Performance & Gaming
Featuring 3840 CUDA cores and boost speeds up to 2527 MHz, the RTX 5060 is engineered to handle modern games and demanding workloads. With support for DirectX 12 Ultimate, it delivers advanced graphical effects and smooth performance.

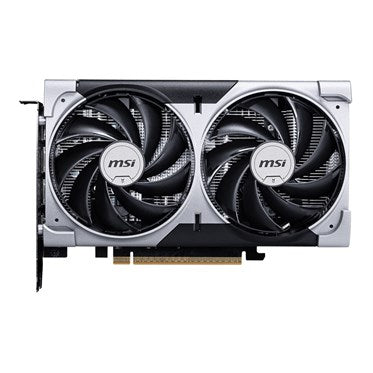

Cooling & Design
The VENTUS 2X design focuses on efficient thermal performance using dual TORX FAN 5.0 fans. Its compact full-height, half-length form factor allows easy integration into small form factor builds while maintaining stable cooling performance.
Technical Specifications
Processor
| GPU Family | NVIDIA |
| GPU | GeForce RTX 5060 |
| CUDA Cores | 3840 |
| Boost Clock | 2527 MHz |
| Maximum Resolution | 7680 × 4320 |
| Max Displays | 4 |
Memory
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128-bit |
| Data Rate | 28 Gbit/s |

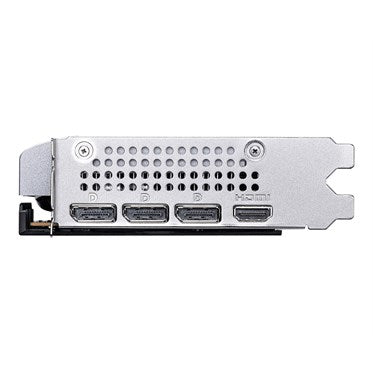

Interface & Ports
| Interface | PCIe 5.0 x16 |
| HDMI | 1 (v2.1b) |
| DisplayPort | 3 (v2.1b) |
APIs & Features
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| G-SYNC | Yes |
| Overclocked Edition | Yes |
Design & Cooling
| Cooling Type | Active |
| Cooling Technology | MSI TORX FAN 5.0 |
| Fans | 2 |
| Fan Size | 120 mm |
| Form Factor | Full Height / Half Length (FH/HL) |
| Colour | Silver |
Power
| Recommended PSU | 550 W |
| Power Consumption | 145 W |
| Power Connector | 1 × 8-pin |
Dimensions & Weight
| Length | 197 mm |
| Depth | 41 mm |
| Height | 120 mm |
| Weight | 511 g |
Packaging
| Package Weight | 829 g |
| Package Type | Box |
| Included Cables | Power |
Logistics
| Items per Case | 1 pc |
