Key Features
- AC1200 Dual-Band Wi-Fi Performance
- Up to 867Mbps on 5GHz and 300Mbps on 2.4GHz
- Integrated Bluetooth 5.0 Connectivity
- PCI Express Interface for Desktop PCs
- MU-MIMO Technology for Improved Efficiency
- WPA3 Wireless Security Support
- Dual High-Gain Omni-Directional Antennas
- Ideal for Streaming, Gaming and Productivity
Product Description
Upgrade Your Desktop with Fast Wireless Connectivity

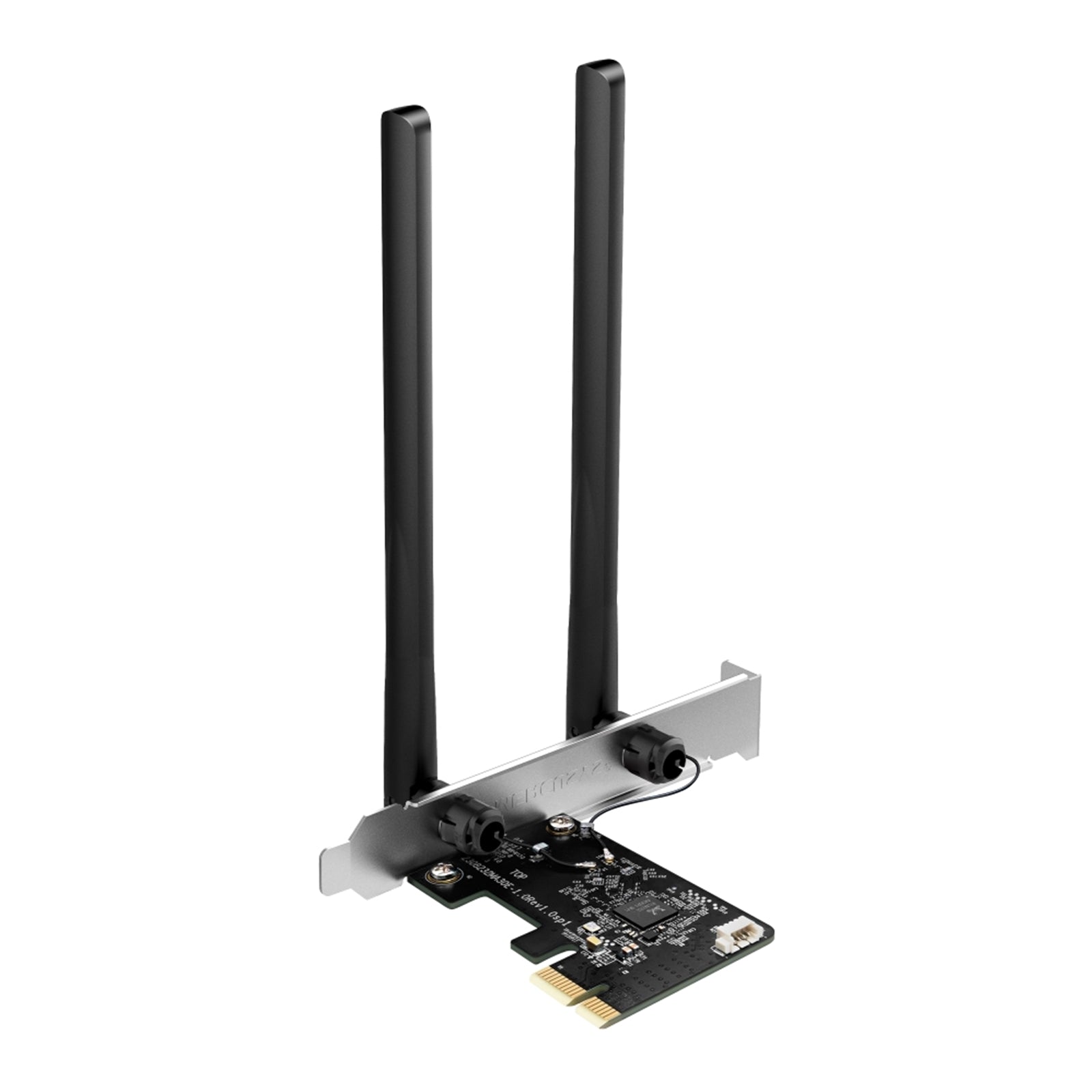

The Mercusys MA30E is a high-performance AC1200 PCIe wireless adapter that provides fast dual-band Wi-Fi and Bluetooth 5.0 connectivity for desktop PCs. Designed for users seeking reliable wireless networking, it offers fast download speeds, stable connections and enhanced wireless coverage for demanding online activities.
Dual-Band AC1200 Wi-Fi
Supporting Wi-Fi 5 (802.11ac), the MA30E delivers speeds of up to 867Mbps on the 5GHz band and up to 300Mbps on the 2.4GHz band. The dedicated 5GHz frequency provides reduced interference and improved performance for streaming, gaming and video conferencing.
Bluetooth 5.0 Technology
Integrated Bluetooth 5.0 provides faster connectivity, improved reliability and extended range compared to older Bluetooth versions. Connect wireless headphones, keyboards, mice, game controllers, printers and other Bluetooth-enabled devices with ease.
Enhanced Wireless Coverage
Two fixed high-performance omni-directional antennas help improve wireless reception and coverage throughout your home or office, ensuring a stronger and more stable signal.
Modern Security & Efficiency
With support for MU-MIMO technology and WPA3 security protocols, the MA30E delivers greater network efficiency and enhanced protection against wireless threats while maintaining compatibility with existing network standards.
Main Benefits
-
AC1200 Wireless Speed: Up to 1200Mbps combined throughput.
-
Dual-Band Connectivity: Flexible 2.4GHz and 5GHz operation.
-
Bluetooth 5.0 Built In: Connect multiple wireless peripherals.
-
MU-MIMO Support: Improved multi-device performance.
-
Enhanced Coverage: Dual external antennas improve reception.
-
WPA3 Security: Stronger wireless protection.
-
PCIe Installation: Stable desktop integration.
-
Ideal for Streaming & Gaming: Low-latency 5GHz performance.
General Specifications
| Specification |
Details |
| Manufacturer |
Mercusys |
| Model |
MA30E |
| Product Type |
PCIe Wi-Fi & Bluetooth Adapter |
| Wireless Class |
AC1200 |
| Wi-Fi Standard |
Wi-Fi 5 (802.11ac) |
| Interface |
PCI Express |
Wireless Specifications
| Specification |
Details |
| 2.4GHz Speed |
Up to 300Mbps |
| 5GHz Speed |
Up to 867Mbps |
| Combined Wireless Speed |
Up to 1200Mbps |
| Wi-Fi Bands |
Dual-Band |
| Wi-Fi Standards |
802.11a/b/g/n/ac |
Bluetooth Specifications
| Specification |
Details |
| Bluetooth Version |
Bluetooth 5.0 |
| Wireless Peripheral Support |
Yes |
| Improved Range |
Yes |
| Enhanced Transfer Speeds |
Yes |
Wireless Technologies
| Technology |
Benefit |
| MU-MIMO |
Better performance with multiple devices |
| Dual-Band Operation |
Reduced wireless congestion |
| Wi-Fi 5 (802.11ac) |
Higher speeds and improved efficiency |
| Bluetooth 5.0 |
Faster wireless peripheral connectivity |
Security Features
| Security Standard |
Support |
| WPA-PSK |
Supported |
| WPA2-PSK |
Supported |
| WPA3-SAE |
Supported |
| Advanced Wireless Encryption |
Yes |
Antenna Specifications
| Specification |
Details |
| Antenna Type |
2 x Fixed High-Performance Antennas |
| Antenna Direction |
Omni-Directional |
| Coverage Enhancement |
Improved Signal Strength |
Compatibility
| Category |
Support |
| Windows 10 64-bit |
Supported |
| Windows 11 64-bit |
Supported |
| Desktop PCs |
Supported |
| PCI Express Slots |
Required |
Environmental Specifications
| Specification |
Details |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% |
| Storage Humidity |
5% to 90% |
Certifications
| Certification |
Status |
| FCC |
Certified |
| CE |
Certified |
| RoHS |
Compliant |
Physical Specifications
| Specification |
Details |
| Width |
226.3 mm |
| Depth |
120.8 mm |
| Height |
21.5 mm |
| Colour |
Black |
Ideal Applications
- 4K Video Streaming
- Online Gaming
- Video Conferencing
- Remote Working
- Desktop Wi-Fi Upgrades
- Bluetooth Headsets & Speakers
- Wireless Controllers & Accessories
- General Home Networking
Package Contents
- Mercusys MA30E AC1200 PCIe Wi-Fi Adapter
- Bluetooth Header Cable
- Quick Installation Guide
- Resource CD
Product Identifiers
| Identifier |
Value |
| Brand |
Mercusys |
| Model |
MA30E |
| Product Type |
PCIe Wi-Fi & Bluetooth Adapter |
| Wireless Standard |
Wi-Fi 5 (802.11ac) |
| Maximum Speed |
AC1200 (867Mbps + 300Mbps) |
| Bluetooth Version |
5.0 |
| Interface |
PCI Express |
| Security |
WPA/WPA2/WPA3 |
