Key Features
- BE6500 Tri-Band Wi-Fi 7 Performance
- Up to 2882Mbps on 6GHz and 5GHz Bands
- Bluetooth 5.4 Connectivity
- PCI Express Desktop Installation
- Dual High-Performance External Antennas
- WPA3 Wireless Security Support
- Advanced Wi-Fi 7 Technologies
- Optimised for High-Speed Gaming, Streaming and Productivity
Product Description
Unlock Next-Generation Wireless Performance

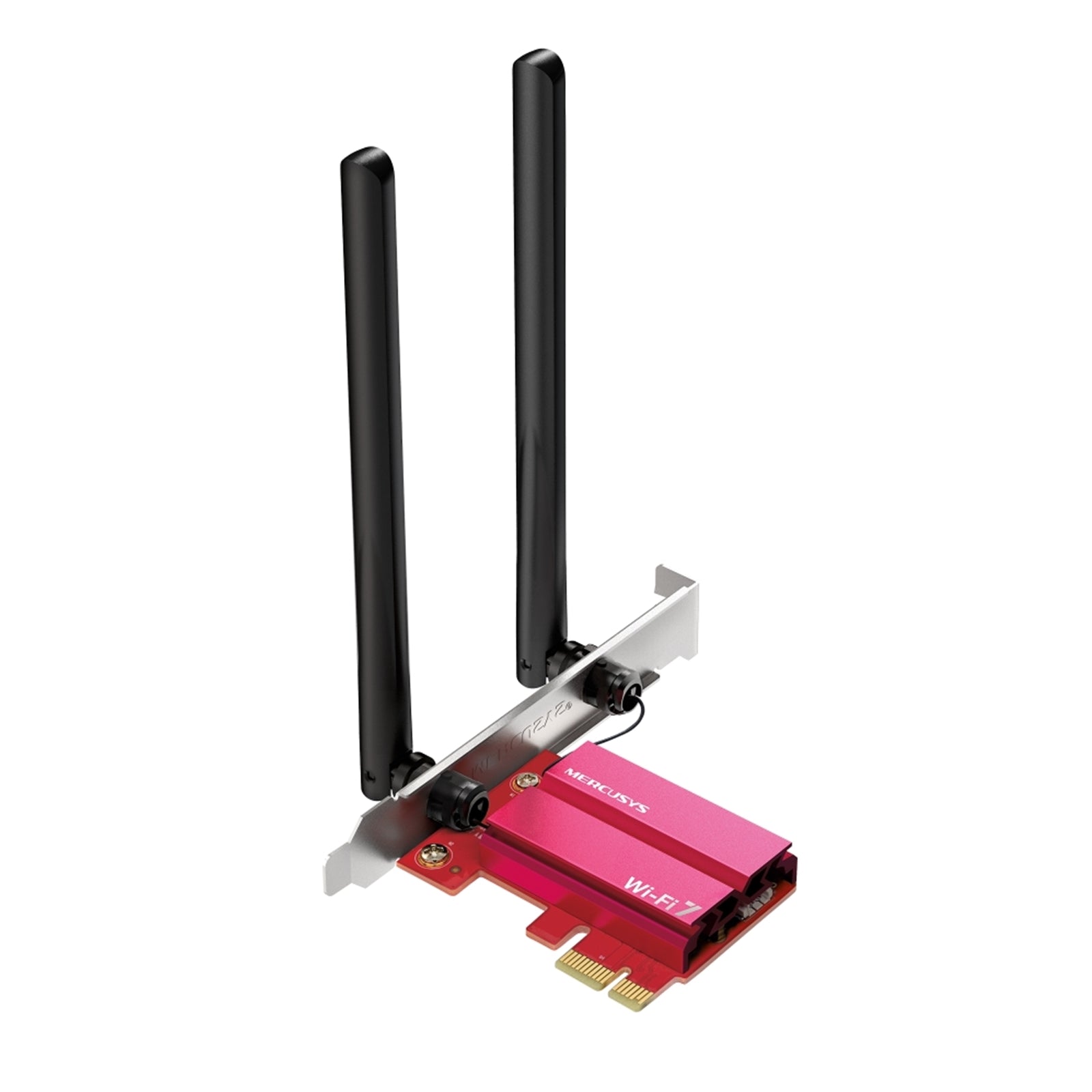

The Mercusys MA37BE brings cutting-edge Wi-Fi 7 technology to your desktop PC, delivering exceptional wireless speeds and ultra-low latency for demanding online activities. Designed for modern homes and high-performance systems, it supports tri-band connectivity, Bluetooth 5.4 and advanced wireless technologies that maximise network efficiency.
BE6500 Tri-Band Wi-Fi 7 Speeds
Experience combined wireless speeds of up to 6452Mbps across three frequency bands. With up to 2882Mbps available on both the 6GHz and 5GHz bands and up to 688Mbps on the 2.4GHz band, the MA37BE is ideal for 4K and 8K streaming, competitive gaming, large file transfers and cloud computing.
Advanced Wi-Fi 7 Technology
Supporting the latest IEEE 802.11be standard, the adapter benefits from improved efficiency, lower latency and greater capacity compared with previous Wi-Fi generations. It is designed to support environments with multiple connected devices while maintaining exceptional responsiveness.
Bluetooth 5.4 Integration
Bluetooth 5.4 provides faster speeds, improved reliability, stronger security and enhanced wireless range when connecting compatible peripherals such as keyboards, mice, headsets, controllers and smart devices.
Enhanced Signal Strength
Two high-performance omni-directional antennas help maximise wireless coverage and signal stability, ensuring strong and reliable reception even in challenging wireless environments.
Main Benefits
-
Wi-Fi 7 Ready: Supports the latest wireless networking standard.
-
Tri-Band Connectivity: Dedicated 2.4GHz, 5GHz and 6GHz operation.
-
Ultra-Fast Performance: Up to 6452Mbps combined wireless speed.
-
Bluetooth 5.4: Enhanced peripheral connectivity.
-
Lower Latency: Improved responsiveness for gaming and streaming.
-
WPA3 Security: Increased wireless protection.
-
Strong Coverage: High-performance external antennas.
-
Future-Proof Upgrade: Ideal for modern Wi-Fi 7 networks.
General Specifications
| Specification |
Details |
| Manufacturer |
Mercusys |
| Model |
MA37BE |
| Product Type |
PCIe Wi-Fi & Bluetooth Adapter |
| Wireless Class |
BE6500 |
| Interface |
PCI Express |
| Component For |
Desktop PC |
Wireless Specifications
| Specification |
Details |
| Top Wi-Fi Standard |
Wi-Fi 7 (802.11be) |
| Wireless Bands |
Tri-Band (2.4GHz / 5GHz / 6GHz) |
| 6GHz Speed |
Up to 2882Mbps |
| 5GHz Speed |
Up to 2882Mbps |
| 2.4GHz Speed |
Up to 688Mbps |
| Total Combined Performance |
BE6500 Class |
Supported Wireless Standards
| Standard |
Support |
| Wi-Fi 7 (802.11be) |
Yes |
| Wi-Fi 6 (802.11ax) |
Yes |
| Wi-Fi 5 (802.11ac) |
Yes |
| Wi-Fi 4 (802.11n) |
Yes |
| 802.11a/b/g |
Yes |
Bluetooth Specifications
| Specification |
Details |
| Bluetooth Version |
5.4 |
| Wireless Peripheral Support |
Yes |
| Improved Security |
Yes |
| Enhanced Wireless Reliability |
Yes |
Security Features
| Security Standard |
Support |
| WPA-PSK |
Supported |
| WPA2-PSK |
Supported |
| WPA3-SAE |
Supported |
| Enhanced Password Protection |
Yes |
Antenna Specifications
| Specification |
Details |
| Antenna Quantity |
2 |
| Antenna Type |
Fixed Omni-Directional |
| Design |
External High-Performance Antennas |
| Signal Enhancement |
Improved Coverage & Reception |
Connectivity
| Feature |
Details |
| Host Interface |
PCI Express |
| Connectivity Type |
Wireless |
| Network Functions |
Wi-Fi & Bluetooth |
| Desktop Installation |
Yes |
Operating System Compatibility
| Platform |
Support |
| Windows 11 (64-bit) |
Supported |
| Windows 10 |
Not Supported |
| Windows 11 Desktop PCs |
Supported |
Performance Benefits
| Feature |
Benefit |
| Tri-Band Architecture |
Reduced congestion and more bandwidth |
| Wi-Fi 7 Technology |
Higher throughput and lower latency |
| Bluetooth 5.4 |
Improved wireless peripheral performance |
| External Antennas |
Enhanced signal quality |
| WPA3 Security |
Stronger wireless protection |
Environmental Specifications
| Specification |
Details |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% Non-Condensing |
| Storage Humidity |
5% to 90% Non-Condensing |
Physical Specifications
| Specification |
Details |
| Width |
228 mm |
| Depth |
120.8 mm |
| Height |
21.5 mm |
| Antenna Design |
External Fixed Antennas |
| Low Profile Support |
Not Compatible |
Ideal Applications
- Wi-Fi 7 Network Upgrades
- Online Gaming
- 8K & 4K Video Streaming
- Cloud Computing
- Workstation Connectivity
- Bluetooth Accessories
- High-Speed Downloads
- Multi-Device Wireless Environments
Package Contents
- Mercusys MA37BE BE6500 Wi-Fi 7 PCIe Adapter
- Bluetooth Header Cable
- Quick Installation Guide
- Resource CD
