Description

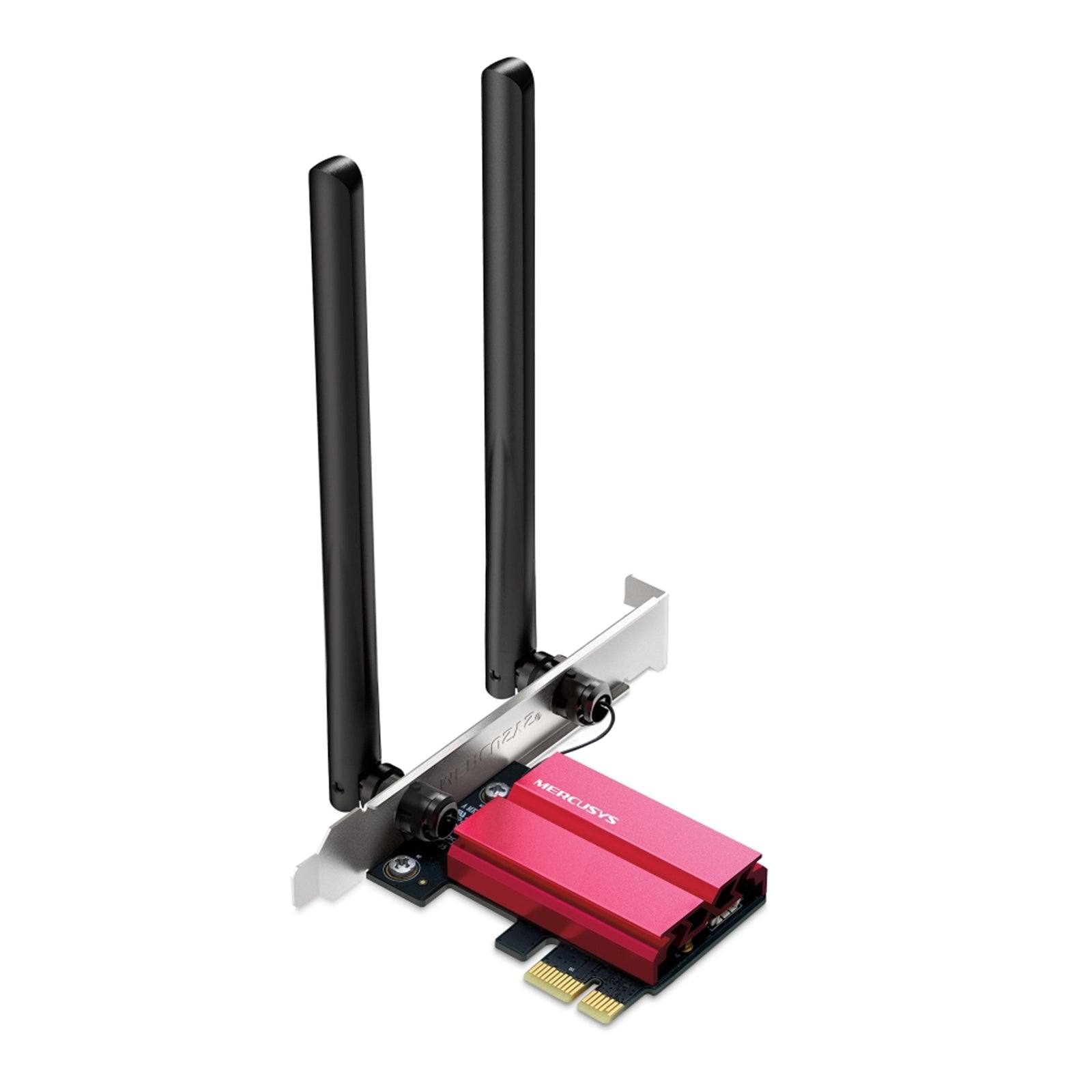

Mercusys MA86XE AXE5400 Tri-Band Wi-Fi 6E Bluetooth PCI Express Adapter
Bluetooth 5.2: The latest Bluetooth technology achieves faster speeds and broader coverage Improved Security: The latest security enhancement, WPA3, provides enhanced protection in personal password safety Wireless Standards IEEE 802.11 a/ac/ax 5 GHzIEEE 802.11 b/g/n/ax 2.4 GHz Signal Rate 2402 Mbps on 6 GHz2402 Mbps on 5 GHz574 Mbps on 2.4 GHz Reception Sensitivity 6 GHz:11ax HE160 MCS0:-86 dBm11ax HE160 MCS11:-56 dBm 5 GHz:11ax HE80 MCS0: -90 dBm11ax HE80 MCS11: -59 dBm11a 54Mbps: -77 dBm11ac VHT80 MCS0: -92dBm11ac VHT80 MCS9: -64dBm 2.4 GHz:11ax HE40 MCS0: -91 dBm11ax HE40 MCS11: -60 dBm11g 54Mbps: -76 dBm11n HT40 MCS7: -72dBm Wireless Security WPA-PSK/WPA2-PSK/WPA3-SAE Dimensions (W X D X H) 8.9 x 4.8 x 0.85 in (226.3 x 120.8 x 21.5 mm) Antenna Type 2x Fixed High-Performance Omni-Directional Antennas Package Contents AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter (MA86XE)Bluetooth Header CableQuick Installation GuideResource CD Environment Operating Temperature: 0�C~40�C (32�F~104�F)Operating Humidity: 10%~90% Non-CondensingStorage Humidity: 5%~90% Non-Condensing System Requirements Supported operating systems include Windows 10, 11(64-bit)
Specs
Expansion Slots
| Unstoppable Tri-Band Speed | Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz) |
| WiFi 6E Standard | Expand to the clearer, broader 6 GHz band |
| Reliable Connections | The latest Intel Wi-Fi 6E chipset |
| Wider Signal Coverage | Two high-performance antennas |
| Backward Compatibility | Full support for 802.11ax/ac/a/b/g/n standards |
| Windows Compatible | Supported operating system: Windows 10, 11 (64 bit), and the 6 GHz is now available on Windows 11 |
