Key Features
- 4G+ Cat 6 LTE with Download Speeds up to 300Mbps
- AC1200 Dual-Band Wi-Fi (867Mbps + 300Mbps)
- Nano SIM Plug-and-Play Setup
- Supports Up to 64 Connected Devices
- Gigabit LAN/WAN Port & Gigabit LAN Port
- Wi-Fi Router Mode for Wired Internet Backup
- WPA3 Wireless Security
- IPv4 & IPv6 Network Support
Product Description
Fast Mobile Broadband Wherever You Need It

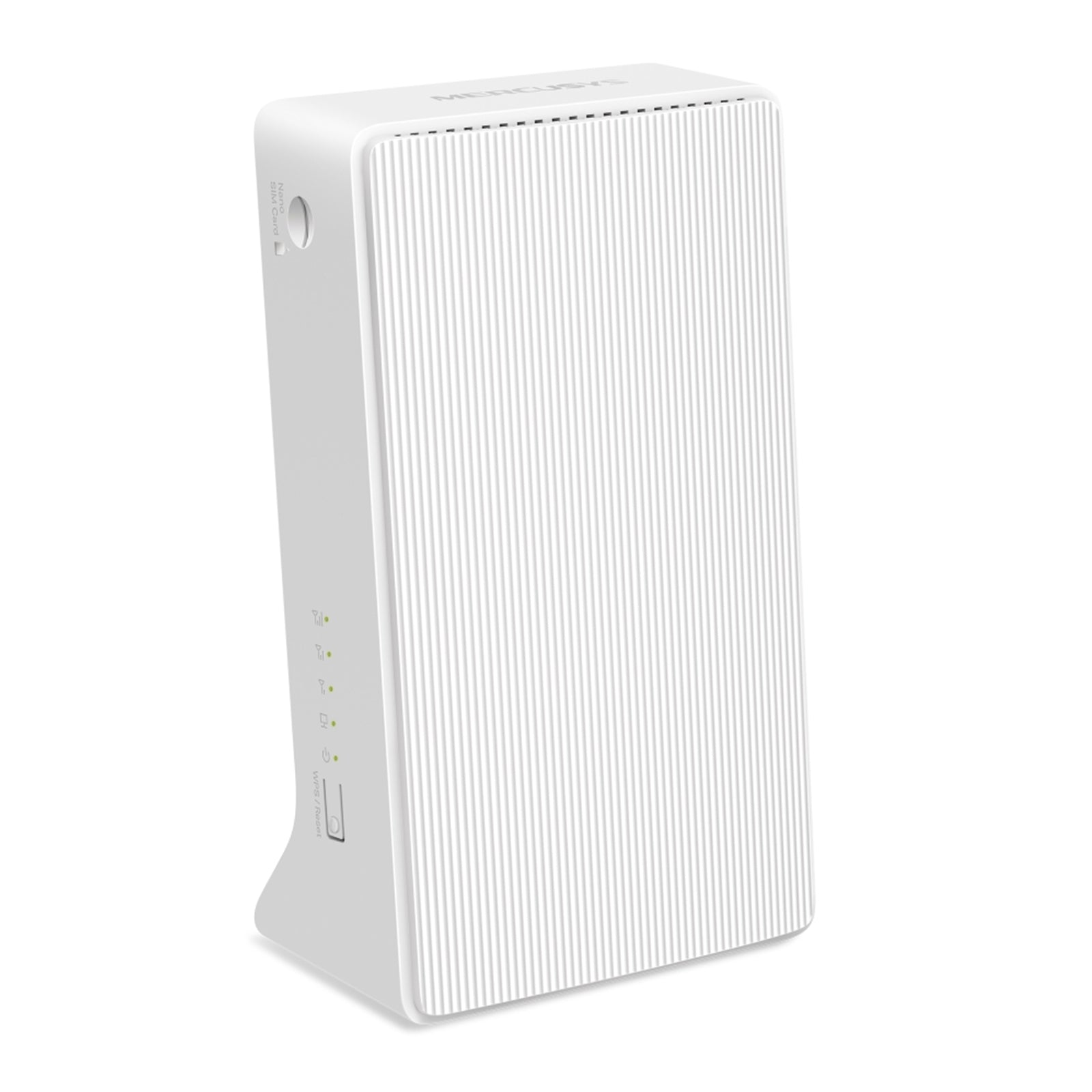

The Mercusys MB230-4G combines high-speed 4G+ LTE connectivity with AC1200 dual-band Wi-Fi, making it ideal for homes, offices, holiday properties and locations without fixed broadband access. Simply insert a Nano SIM card and start enjoying reliable internet access without complicated setup procedures.
4G+ Cat 6 Performance
Supporting LTE Cat 6 technology, the MB230-4G delivers download speeds of up to 300Mbps, allowing smooth HD streaming, remote working, cloud applications and online gaming over compatible mobile networks.
Dual-Band AC1200 Wi-Fi
Enjoy combined wireless speeds of up to 1200Mbps with simultaneous dual-band operation. The 5GHz band delivers speeds up to 867Mbps for streaming and gaming, while the 2.4GHz band provides up to 300Mbps for everyday browsing and smart home devices.
Flexible Connectivity Options
In addition to mobile broadband, the router can operate in traditional Wi-Fi router mode by connecting a wired internet source to the LAN/WAN port. This provides flexibility and backup internet options when mobile connectivity is unavailable.
Connect More Devices
The powerful wireless architecture allows up to 64 devices to connect simultaneously, making it suitable for family homes, small offices and connected smart environments.
Main Benefits
-
4G+ Cat 6 LTE: Download speeds up to 300Mbps.
-
SIM Card Ready: Simple plug-and-play installation.
-
AC1200 Wi-Fi: Fast dual-band wireless performance.
-
Up to 64 Devices: Supports multiple users simultaneously.
-
Gigabit Ports: High-speed wired connectivity.
-
Router Mode: Can operate with Ethernet broadband.
-
Modern Security: WPA3 wireless protection.
-
IPv6 Support: Ready for modern networking environments.
General Specifications
| Specification |
Details |
| Manufacturer |
Mercusys |
| Model |
MB230-4G |
| Product Type |
4G+ LTE Wireless Router |
| Wi-Fi Class |
AC1200 |
| Mobile Standard |
4G+ LTE Cat 6 |
| Colour |
White |
Wireless Specifications
| Specification |
Details |
| Wi-Fi Standard |
Wi-Fi 5 (802.11ac) |
| Wireless Bands |
Dual-Band 2.4GHz & 5GHz |
| Combined Wireless Speed |
1200Mbps |
| 2.4GHz Speed |
300Mbps |
| 5GHz Speed |
867Mbps |
| Wireless Standards |
802.11ac/a/b/g/n |
4G Mobile Network Support
| Specification |
Details |
| Mobile Generation |
4G LTE Cat 6 |
| SIM Type |
Nano SIM |
| LTE Standards |
LTE-FDD & LTE-TDD |
| Maximum Download Speed |
Up to 300Mbps |
| 3G Support |
UMTS / HSPA / HSPA+ |
Supported LTE Bands (EU)
| Band Type |
Support |
| FDD-LTE |
B1, B3, B5, B7, B8, B20, B28 |
| TDD-LTE |
B38, B40 |
| UMTS / HSPA+ |
B1, B5, B8 |
Security Features
| Feature |
Support |
| WPA-PSK |
Yes |
| WPA2-PSK |
Yes |
| WPA3-SAE |
Yes |
| Firewall |
Yes |
| DMZ |
Yes |
| System Event Log |
Yes |
Wired Connectivity
| Port |
Quantity |
| Gigabit LAN/WAN Port |
1 |
| Gigabit LAN Port |
1 |
| Nano SIM Slot |
1 |
| DC Power Input |
1 |
Network Features
| Feature |
Support |
| DHCP Server |
Yes |
| IPv4 |
Yes |
| IPv6 |
Yes |
| UPnP |
Yes |
| Port Forwarding |
Yes |
| Port Triggering |
Yes |
| Dynamic DNS |
Yes |
| WMM |
Yes |
Wireless Features
| Feature |
Benefit |
| Wireless Schedule |
Automated Wi-Fi control |
| WPS Button |
Quick device pairing |
| Wireless Statistics |
Network monitoring |
| Enable/Disable Radio |
Wireless management flexibility |
| Up to 64 Connected Devices |
Supports busy households and offices |
Power Specifications
| Specification |
Details |
| Power Source |
DC Adapter |
| Input |
100-240V AC |
| Output Voltage |
12V |
| Output Current |
1A |
Physical Specifications
| Specification |
Details |
| Width |
95 mm |
| Depth |
61 mm |
| Height |
166 mm |
| Antenna Design |
Internal |
| Status Indicators |
LED Indicators |
Environmental Specifications
| Specification |
Details |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 60°C |
| Operating Humidity |
10% to 90% |
| Storage Humidity |
5% to 90% |
Ideal Applications
- Rural Broadband Access
- Home Internet Backup
- Small Office Connectivity
- Holiday Homes & Temporary Installations
- 4K Video Streaming
- Remote Working
- Online Gaming
- Smart Home Connectivity
Package Contents
- Mercusys MB230-4G AC1200 4G+ LTE Router
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
