Key Features
- AX1500 Dual-Band Wi-Fi 6 Performance
- Up to 1201Mbps on 5GHz and 300Mbps on 2.4GHz
- Extends Wi-Fi Coverage to Hard-to-Reach Areas
- Gigabit Ethernet Port for Wired Devices
- Wi-Fi 6 Technology for Greater Efficiency and Capacity
- Works with Virtually Any Existing Router
- Built-In Access Point Mode
- Simple WPS One-Touch Setup
Product Description
Expand Your Wi-Fi with Wi-Fi 6 Technology

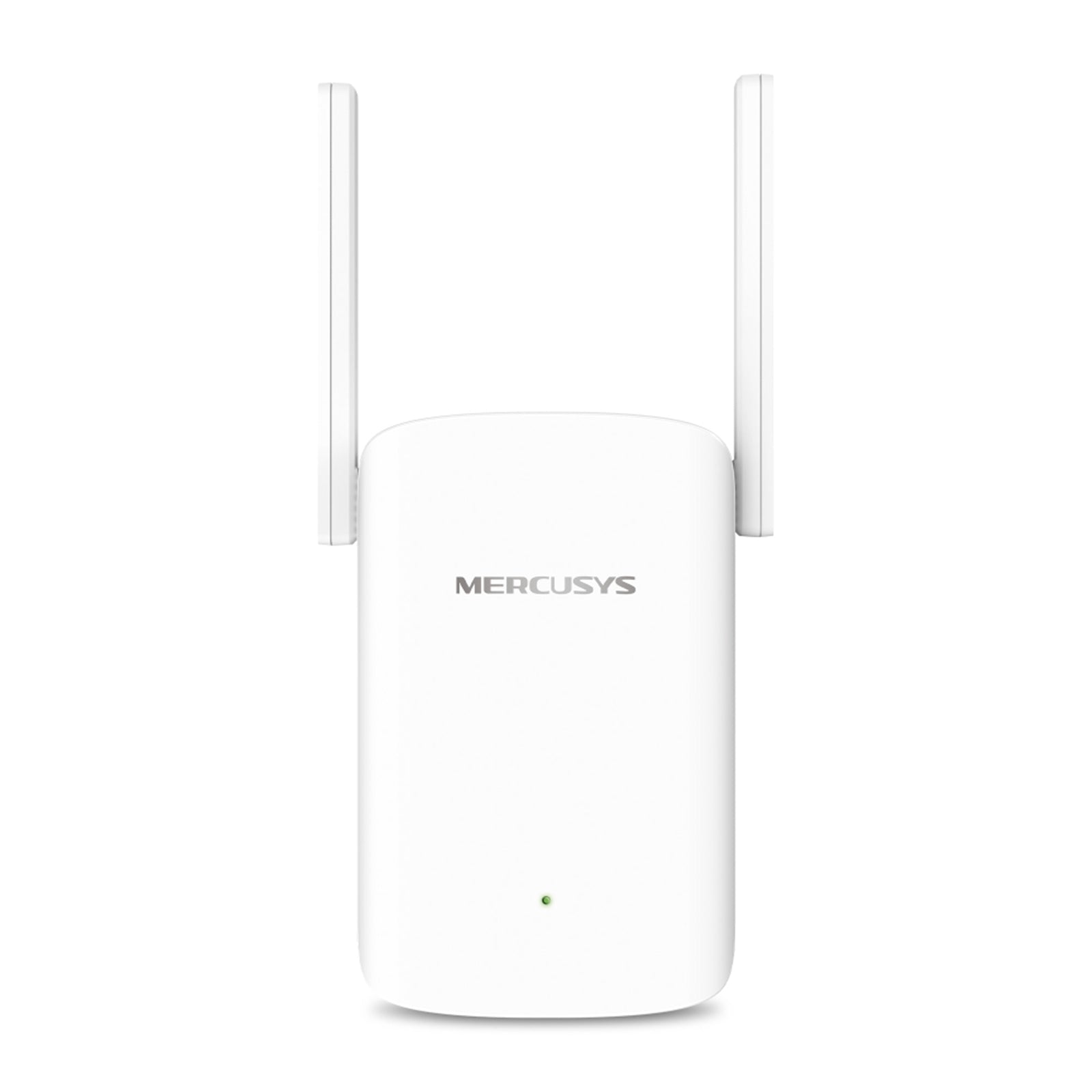

The Mercusys ME60X AX1500 Range Extender is designed to eliminate wireless dead zones by extending existing Wi-Fi coverage throughout your home or office. Powered by Wi-Fi 6 technology, it delivers improved speed, efficiency and network capacity compared to previous wireless generations.
Fast AX1500 Dual-Band Wireless Performance
With combined wireless speeds of up to 1500Mbps, including 1201Mbps on the 5GHz band and 300Mbps on the 2.4GHz band, the ME60X provides the performance required for HD streaming, online gaming, video conferencing and everyday internet usage.
Enhanced Coverage Throughout Your Home
Two external antennas help extend Wi-Fi signals into areas where your router's signal may be weak or unavailable, helping ensure a stronger connection for more devices throughout the property.
Gigabit Wired Connectivity
The integrated Gigabit Ethernet port allows wired devices such as PCs, smart TVs, IPTV receivers and gaming consoles to benefit from fast and reliable network access.
Flexible Installation Options
The ME60X can operate as both a traditional range extender and a wireless access point, offering flexibility for different networking environments and installation requirements.
Main Benefits
-
Wi-Fi 6 Technology: Improved wireless performance and efficiency.
-
AX1500 Speeds: Up to 1500Mbps combined throughput.
-
Extended Coverage: Eliminates wireless dead zones.
-
Gigabit Ethernet Port: Fast wired device connectivity.
-
Universal Compatibility: Works with most Wi-Fi routers.
-
Dual-Band Wireless: Flexible 2.4GHz and 5GHz connectivity.
-
Easy Setup: One-touch WPS configuration.
-
Access Point Mode: Additional deployment flexibility.
General Specifications
| Specification |
Details |
| Manufacturer |
Mercusys |
| Model |
ME60X |
| Product Type |
Wi-Fi Range Extender |
| Wireless Class |
AX1500 |
| Wi-Fi Standard |
Wi-Fi 6 (802.11ax) |
| Colour |
White |
Wireless Specifications
| Specification |
Details |
| Wireless Bands |
Dual-Band (2.4GHz & 5GHz) |
| 5GHz Speed |
Up to 1201Mbps |
| 2.4GHz Speed |
Up to 300Mbps |
| Combined Speed |
Up to 1501Mbps |
| Wireless Standards |
802.11a/b/g/n/ac/ax |
Coverage & Antenna Specifications
| Specification |
Details |
| Antenna Quantity |
2 |
| Antenna Type |
External Antennas |
| Coverage Enhancement |
Yes |
| Signal Extension |
Optimised Wi-Fi Expansion |
Network Modes
| Mode |
Description |
| Range Extender Mode |
Extends existing wireless coverage |
| Access Point Mode |
Creates wireless access from wired connection |
| Universal Router Compatibility |
Supported |
Security Features
| Security Standard |
Support |
| WPA |
Supported |
| WPA2 |
Supported |
| WPA3-PSK |
Supported |
| Secure Wireless Encryption |
Yes |
Gigabit Connectivity
| Specification |
Details |
| Ethernet Port |
1 x Gigabit RJ45 |
| Ethernet Speed |
10/100/1000Mbps |
| Suitable Devices |
PCs, IPTV, Consoles, Smart TVs |
| Wired Backhaul Support |
Yes |
Management & Setup Features
| Feature |
Benefit |
| WPS Setup |
Fast one-touch installation |
| Mercusys App |
Remote management and setup |
| Reset Button |
Easy troubleshooting |
| LED Indicators |
Connection and status monitoring |
Power Specifications
| Specification |
Details |
| Typical Power Consumption |
10W |
| Power Source |
Mains Powered |
| Energy Efficient Operation |
Yes |
Certifications
| Certification |
Status |
| RoHS |
Compliant |
Physical Specifications
| Specification |
Details |
| Width |
84.7 mm |
| Depth |
39 mm |
| Height |
112 mm |
| Colour |
White |
| Installation Type |
Wall Plug Design |
Environmental Specifications
| Specification |
Details |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% Non-Condensing |
Ideal Applications
- Extending Home Wi-Fi Coverage
- Eliminating Wireless Dead Spots
- Gaming Console Connectivity
- Smart TV & IPTV Streaming
- Home Office Networking
- Wi-Fi 6 Network Expansion
- Multi-Room Internet Coverage
- Access Point Deployments
Package Contents
- Mercusys ME60X AX1500 Wi-Fi 6 Range Extender
- Quick Installation Guide
Product Identifiers
| Identifier |
Value |
| Brand |
Mercusys |
| Model |
ME60X |
| Product Type |
Wi-Fi Range Extender |
| Wireless Class |
AX1500 |
| Top Wi-Fi Standard |
Wi-Fi 6 (802.11ax) |
| Wireless Speed |
1201Mbps + 300Mbps |
| Ethernet Port |
1 x Gigabit RJ45 |
| Security |
WPA/WPA2/WPA3-PSK |
