Description

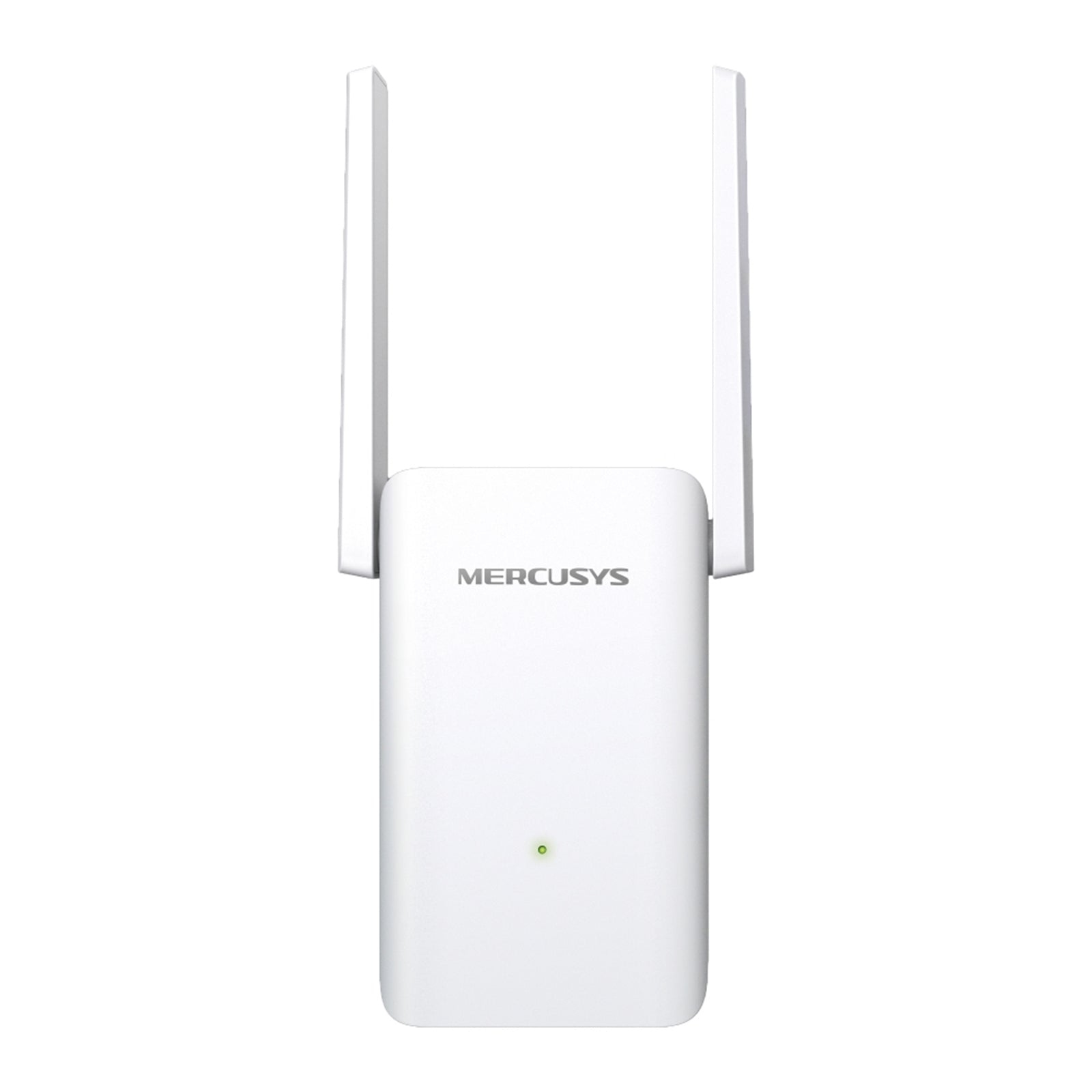

Mercusys ME80X AX3000 Wi-Fi Range Extender
Armed with WiFi 6: Improves virtually every aspect of your network: speed, efficiency, and capacity. Gigabit Wired Connection: Provides speedy wired connections for PCS, IPTVS.and game consoles. Easy One-Touch Setup: Press the WPS button to expand your Wi-Fi coverage in seconds. Manage Your Network with App: Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices. Wireless Standards IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz Frequency 2.4GHz and 5GHz WiFi Speeds 574 Mbps at 2.4GHz, 2402 Mbps at 5GHz Reception Sensitivity 5GHz:11a 6Mbps:-97dBm11a 54Mbps:-78dBm11ax HE20 MCS0: -96dBm11ax HE20 MCS11: -66dBm11ax HE40 MCS0: -93dBm11ax HE40 MCS11: -62dBm11ax HE80 MCS0: -90dBm11ax HE80 MCS11: -60dBm11ax HE160 MCS11: -58dBm 2.4GHz:11g 6Mbps:-96dBm11g 54Mbps:-78dBm11ax HE20 MCS0: -96dBm11ax HE20 MCS11: -66dBm11ax HE40 MCS0: -93dBm11ax HE40 MCS11: -62dBm Wireless Security WEP, WPA, WPA2, WPA3-PSK Dimensions 138.6 x 100.3 x 68.4 mm Interfaces 1 Gigabit Ethernet Port Button WPS / Reset Button Antenna Type 2x External Antennas Power 13W Certifications RoHS Network Services Enabled by Default Web Server Device configuration and managementPort: 80/443; Protocol: HTTP/HTTPS DHCP ServerIP address assignment Port: 67; Protocol: UDP/DHCP SSH for APPPort: 20001; Protocol: TCP/ssh TMPD for APPManage and configure device through appPort: 20001; Protocol: UDP/tmpd TDP Server for APPdevice discovery for appPort: 20002; Protocol: UDP Package Contents Wi-Fi Range Extender ME80XQuick Installation Guide Environment Operating Temperature: 0�C~40�C (32�F~104�F) Operating Humidity: 10%~90% Non-Condensing
Specs
Network
| Dual Band Speeds up to 3000 Mbps | 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. |
| Works with Any Routers | To Extend WiFi to Where You Need It Most. |
| Built-In Access Point Mode | Works as RE mode and AP mode. |
