Description

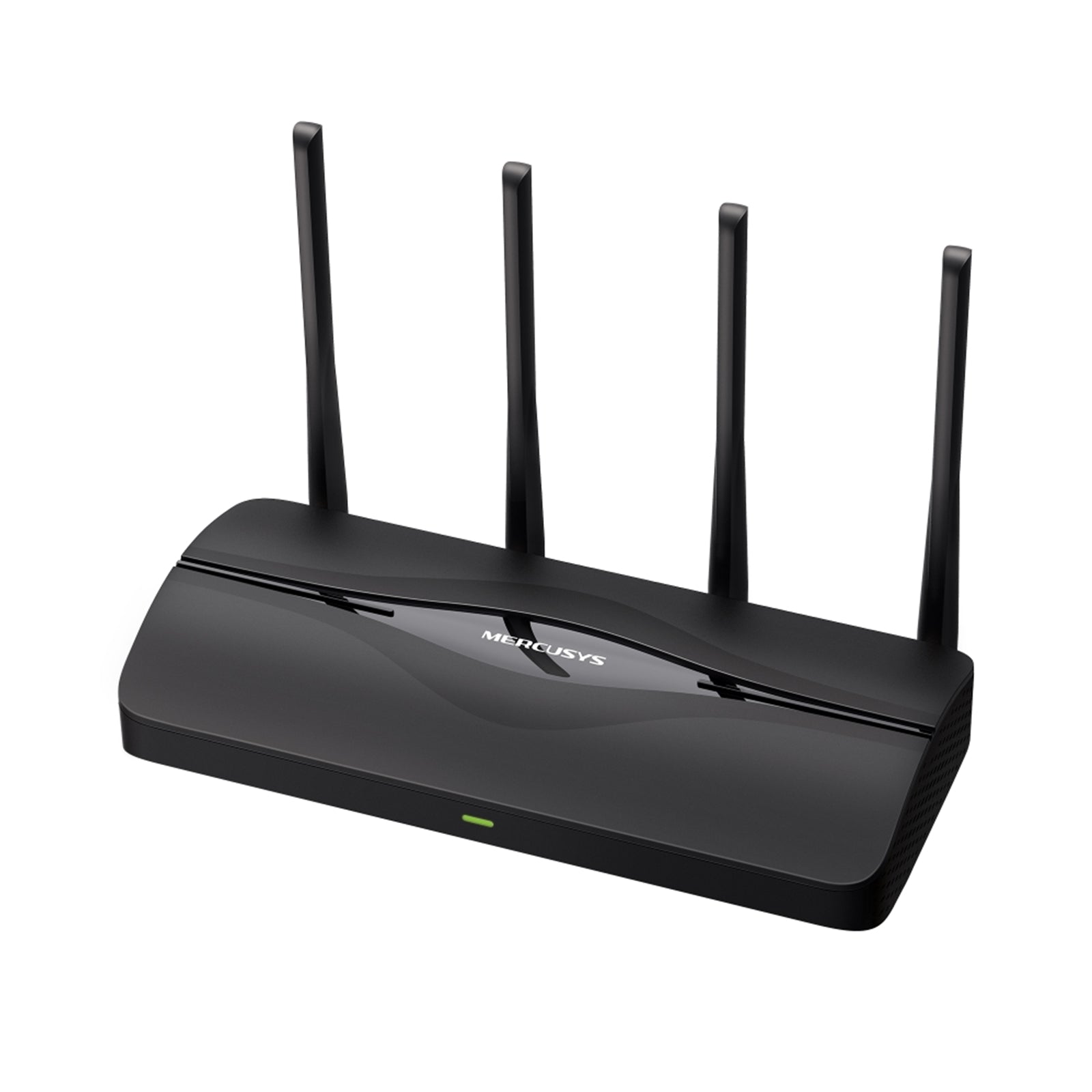

Mercusys MR27BE BE3600 Dual-Band Wi-Fi 7 Router
Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads. Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications. EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals. Easy Setup and Use: Network management has never been easier with the MERCUSYS app. Wi-Fi Class BE3600 Wi-Fi (2.4 GHz) 688Mbps Wi-Fi ( 5 GHz) 2880Mbps Wireless Standards 802.11be/ax/ac/a/b/g/n Max Channel Width 160MHz Reception Sensitivity 5G:11ac VHT20_MCS0:-97dBm, 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-66dBm 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-63dBm 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-59dBm 11be EHT20_MCS13:-61dBm11be EHT40_MCS13:-59dBm 11be EHT80_MCS13:-55dBm11be EHT160_MCS13:-52dBm 2.4G:11ax HE20 MCS0:-97dBm,11ax HE20 MCS11:-68dBm11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-65dBm11be EHT20 MCS13:-61dBm,11be EHT40 MCS13:-59dBm Max Wi-Fi Modulation 4K QAM Wireless Security WPA/WPA2/WPA3 Wireless Functions Guest NetworkIoT NetworkSmart ConnectWireless ScheduleWPSAP IsolationAirtime Fairness Dimensions 250 x 119 x 43.3 mm(9.8 x 4.7 x 1.7 in) Interfaces 1x 2.5G WAN1x 2.5G LAN2x GE LAN Antenna 2x 5G External Antennas(5dBi)2x 2.4G External Antennas(4dBi) Button 1x WPS/ Reset Button Installation DesktopWall-mount LED 1x SYS Retail Package Dimension 328*261*74mm Units per Carton 10 Carton Dimension 535*340*385mm IPTV IGMP ProxyIGMP SnoopingBridgeTag VLAN Power Input:100~240V, 50/60HzOutput: 12V/1.5A Operation Mode Router/AP mode WAN Mode Dynamic IPStatic IPPPPoEPPTPL2TP NAT Forwarding Port ForwardingPort TriggeringDMZUPnP Protocols IPv4IPv6 Guest Network 2.4G Guest Network5G Guest Network Parental Controls Profile SettingsTime ControlPause the InternetWebsite Filtering DHCP Address ReservationDHCP Client ListServer DDNS MERCUSYSNO-IPDynDNS VPN Server OpenVPNPPTPL2TP/IPSecWireGuard VPN Client OpenVPNPPTPL2TP/IPSecWireGuard Easymesh Easymesh Compatible QoS Time SettingsPriority Control Security SPI FirewallAccess ControlIP & MAC Binding Kill Switch Support ISP Feature CWMPISP Preset(Agile Config)Superadmin System Firmware UpgradeBackup and RestoreAdministrationSystem LogTime & Language SettingsReboot Diagnostics PingTraceroute LED Management LED ControlNight Mode Device Management MERCUSYS APPWebpage Cloud MERCUSYS ID Language BulgarianCzechDanishGermanEnglishSpanishFinnishFrenchHungarianItalianJapaneseKoreanDutchNorwegianPolishPortuguesePortuguese - BrazilRomanianRussianSlovakSwedishTurkishUkrainianVietnameseChinese - Taiwan Advanced Features Multi-Link Operation (MLO)Multi-RUsOFDMAMU-MIMOBSS ColorBeamforming Network Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS) Port: 80/443 - Protocol: TCPDNS DNS Port: 53 - Protocol: TCP & UDPDHCP Server IP address assignment (DHCP) Port: 67 Protocol: UDPApp management Manage and configure device through app Port: 20001 Protocol: TCP - Port: 30001 Protocol: TCP -Port: 20002 Protocol: UDP Package Contents BE3600 Wi-Fi 7 Router MR27BEPower AdapterQuick Installation GuideRJ45 Ethernet Cable Environment: Operating Temperature: 0�C~40�C (32�F~104�F)Operating Humidity: 10%~90% Non-CondensingStorage Humidity: 5%~90% Non-Condensing
Specs
Network
| Newest WiFi 7 | Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance. |
| 2.5G Ports | 1x 2.5 Gbps WAN port, 1x 2.5 Gbps LAN port and 2x 1 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance. |
| Maximized Coverage | 4x Omni directional antennas, proprietary Wi-Fi optimization, and Beamforming technology deliver broader coverage, more capacity, stronger and more reliable connections, and less interference. |
