Description

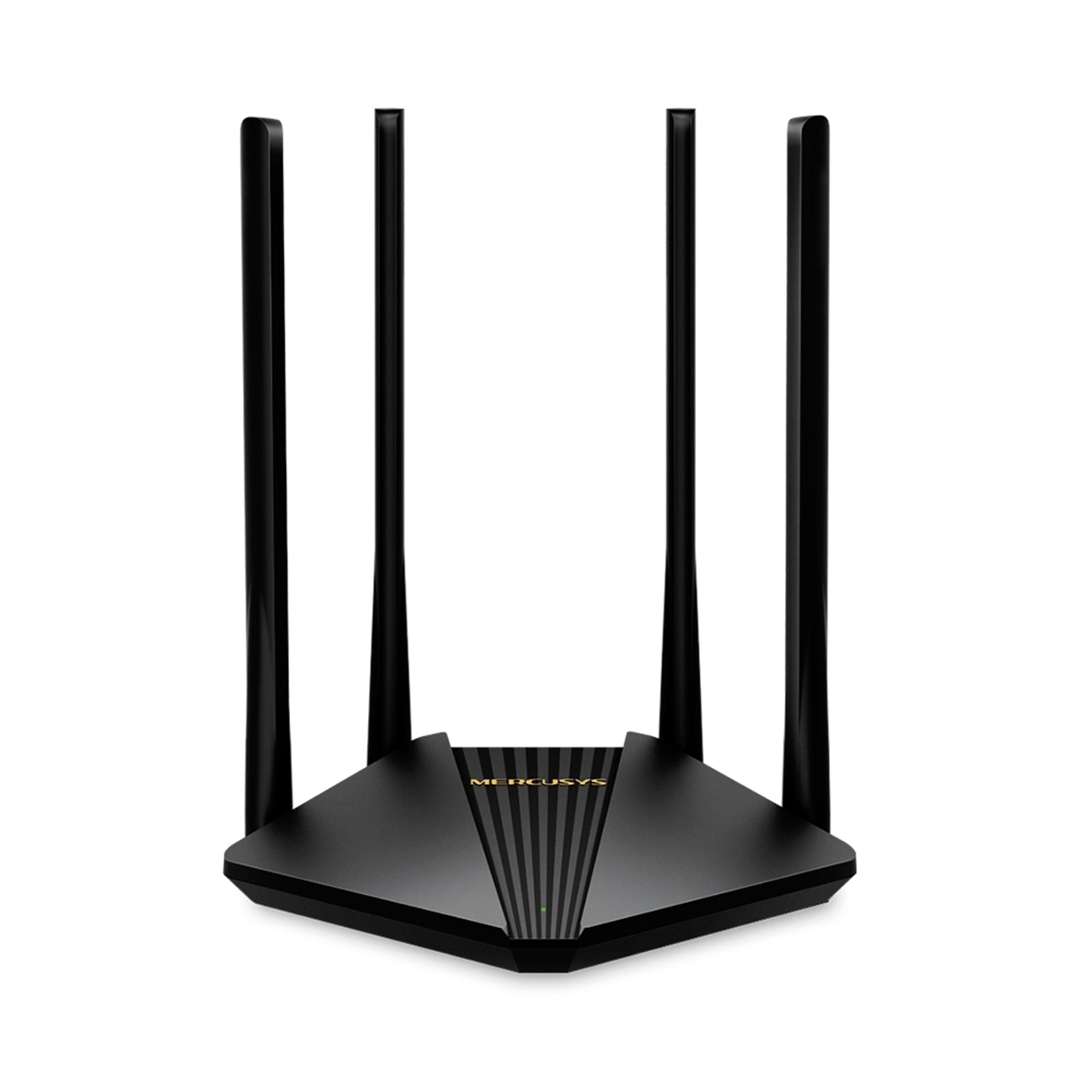

Mercusys MR30G AC1200 Wireless Dual Band Gigabit Router
Full Gigabit Ports: Make full use of your internet access and transfer data at dizzying speeds for peak performance Easily Manage Your Home Network: Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness IPTV Supported: Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
Specs
What's Included
| Antenna Type | 4� 5 dBi Fixed Omni-Directional Antennas |
| Package Contents | AC1200 Wireless Dual Band Gigabit Router (MR30G) Power Adapter Quick Installation Guide RJ45 Ethernet Cable |
Network
| AC1200 Gigabit WiFi | Enjoy home entertainment without any lag, reaching speeds up to 1.2 Gbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band) |
| Higher Network Efficiency | MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing WiFi throughput for each device |
| Wireless Standards | IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible with 11ac/a/b/g/n Wi-Fi standards |
| Reception Sensitivity | 11g 6Mbps: -96dBm11g 54Mbps: -78dBm11n HT40 MCS7: -71dBm11n HT20 MCS7: -74dBm11a 6Mbps: -97dBm11a 54Mbps: -79dBm11ac VHT20 MCS8: -74dBm11ac VHT40 MCS9: -70dBm11ac VHT80 MCS9: -65dBm |
| Transmission Power | 2.4 GHz < 20dBm (EIRP)5 GHz < 23dBm (EIRP) |
| Wireless Security | WPA-PSK / WPA2-PSK |
| Guest Network | 2.4 GHz Guest Network, 5 GHz Guest Network |
Physical
| Dimensions (W x D x H) | 6.3 � 5.0 � 1.5 in (159.7 � 125.9 � 37.1 mm) |
Other
| Broader Coverage | 4x high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner |
| IPv6 Supported | Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites |
| Operation Modes | Router Mode, Access Point Mode |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management | Access ControlLocal ManagementRemote Management |
| NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Firewall Security | SPI Firewall, IP and MAC Address Binding |
| Interfaces | 1� Gigabit WAN Port + 2� Gigabit LAN Ports |
| Button | WPS/Reset Button |
