Description

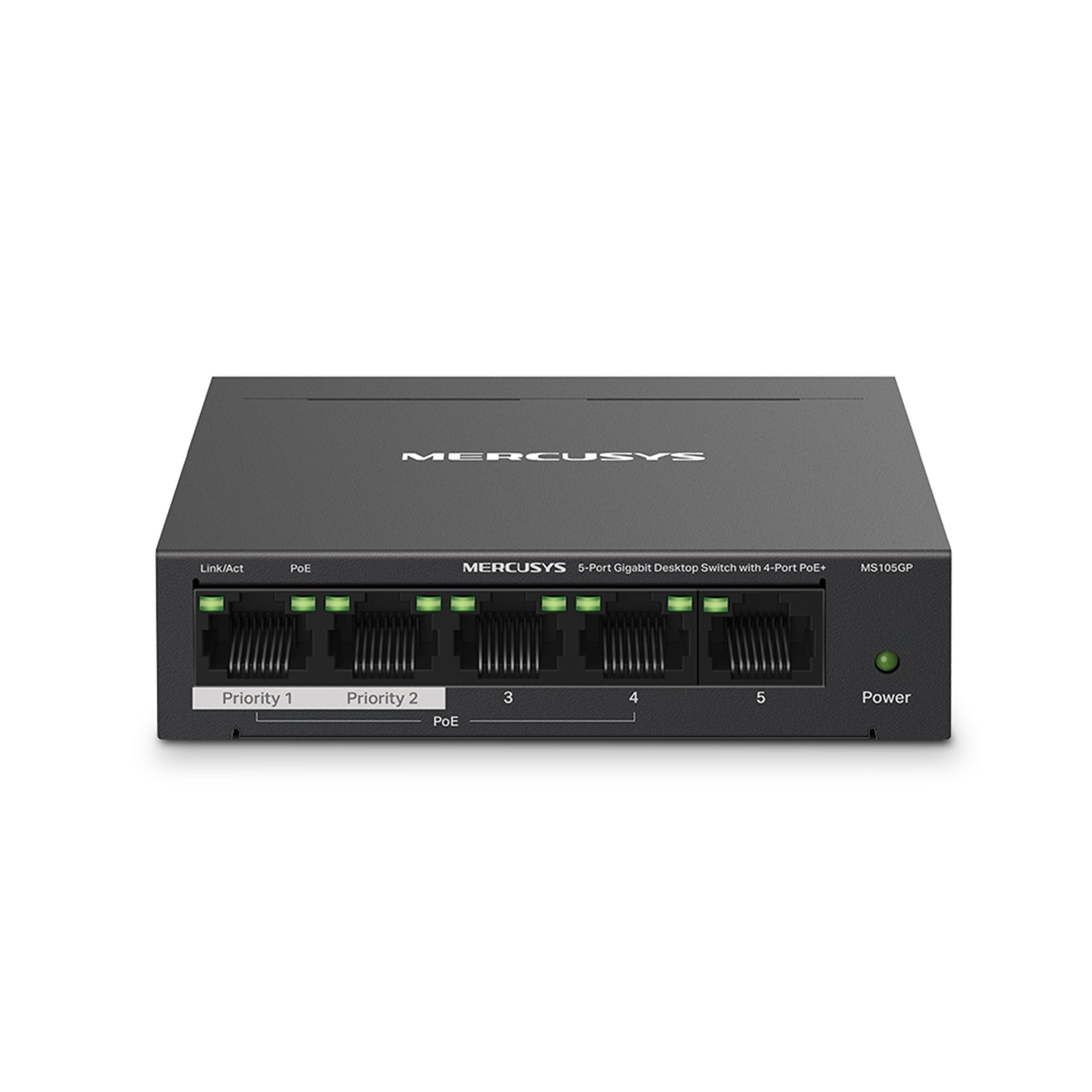

Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+
Two Cables in One: With four PoE ports, transfers data and power on one single cable Isolation Mode: One click to divide traffic for specific ports for stability and security Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD Dimensions 99.8*98*25mm PoE Ports RJ45 Standard: Compliant with 802.3 af/at Powered DevicesPoE Ports: Port 1- Port 4PoE Power Budget: 65 W Interfaces 5x 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX External Power Supply External Power Adapter (Output: 53.5V/1.31A) Installation DesktopWall Mount Data Rates 10/100/1000 Mbps at Half Duplex20/200/2000 Mbps at Full Duplex Jumbo Frame 9 KB LED Ethernet Ports (1, 2, 3, 4, 5), Power MAC Address Table 2K Max Power Consumption 3.13W(220 V / 50 Hz, no PD connected)75.15W(220 V / 50 Hz, with 65W PD connected) Max Heat Dissipation 10.64 BTH/h (no PD connected)255.51 BTH/h(with 65W PD connected) Management Plug and Play Advanced Features 802.3x Flow ControlIGMP Snooping V1/V2/V3Isolation ModeExtend Mode Environment: Operating Temperature: 0C-40C (32F-104F)Storage Temperature: -40C-70C (-40F-158F)Operating Humidity: 10%-90% RH non-condensingStorage Humidity: 5%-95% RH non-condensing
Specs
Network
| Full Gigabit Ports | 5x 10/100/1000 Mbps RJ45 ports |
| High Power PoE | Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports |
| Long-Range up to 250 m | Increases PoE transmission distance to 250 m by Extend Mode |
| Compliant with Powered Devices | Works with IEEE 802.3af/at compliant PDs |
| Durable Metal Casing | Allows for efficient heat dissipation and long network life |
| Plug and Play | Simple to use and saves time and effort |
Other
| Software | Transfer Method Store and Forward |
| Others | Package Contents 5-Port Gigabit Desktop Switch with 4-Port PoE(MS105GP)Power AdapterQuick Installation Guide |
