Key Features
- 8 x Gigabit Ethernet RJ45 Ports
- 10/100/1000Mbps Auto-Negotiation Support
- Auto MDI/MDIX on All Ports
- Plug-and-Play Installation
- Energy-Efficient Green Ethernet Technology
- Compact Desktop Design
- 9KB Jumbo Frame Support
- Reliable Store-and-Forward Switching Architecture
Product Description
Expand Your Wired Network Instantly

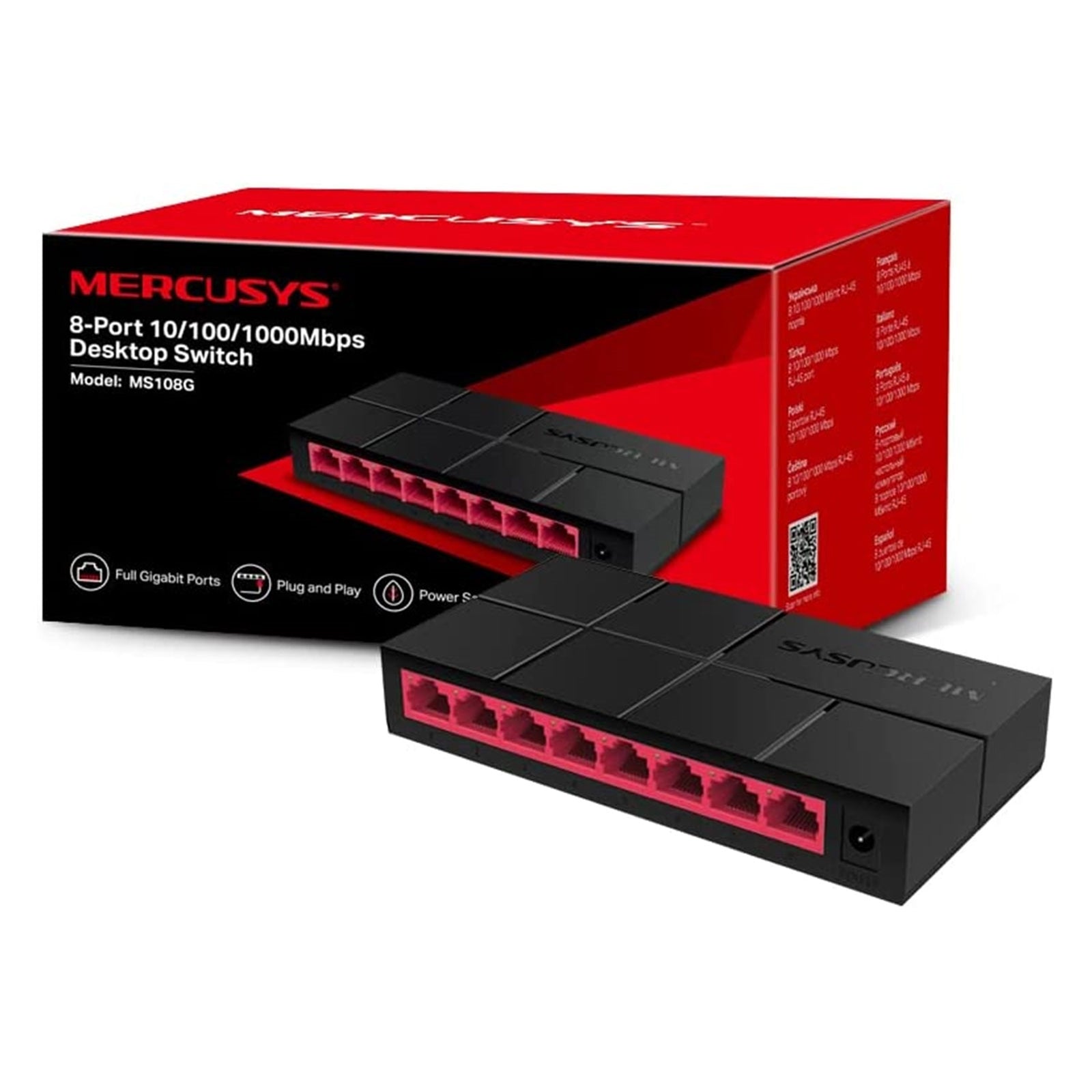

The Mercusys MS108G is an 8-port Gigabit desktop switch designed to quickly and easily expand wired network capacity at home, in small offices, classrooms and dormitory environments. With eight Gigabit Ethernet ports, it provides network speeds up to ten times faster than traditional Fast Ethernet switches.
High-Speed Gigabit Connectivity
Each port supports automatic 10/100/1000Mbps speed negotiation, allowing connected devices to communicate at their highest supported speed. The switch is ideal for connecting PCs, network storage devices, smart TVs, IP cameras, game consoles, printers and access points.
Simple Plug-and-Play Operation
No software configuration or technical setup is required. Simply connect your devices using Ethernet cables and the switch begins operating immediately, making deployment fast and straightforward.
Reliable Network Performance
Featuring store-and-forward switching technology, auto MDI/MDIX functionality and automatic MAC address learning, the MS108G delivers stable and dependable performance for demanding network environments.
Energy-Saving Technology
Green Ethernet technology automatically reduces power consumption based on cable length and connection status, helping lower energy usage while maintaining full Gigabit performance.
Main Benefits
-
8 Gigabit Ports: Expand wired connectivity instantly.
-
Gigabit Speeds: Up to 1000Mbps per port.
-
Plug-and-Play: No setup or software required.
-
Energy Efficient: Green Ethernet technology reduces power usage.
-
Compact Design: Suitable for desks and small spaces.
-
Wide Compatibility: Works with PCs, TVs, consoles and network devices.
-
Jumbo Frame Support: Improved performance for large data transfers.
-
Reliable Networking: Store-and-forward switching architecture.
General Specifications
| Specification |
Details |
| Manufacturer |
Mercusys |
| Model |
MS108G |
| Product Type |
Unmanaged Gigabit Ethernet Switch |
| Switch Type |
Unmanaged |
| Installation |
Desktop |
| Colour |
Black |
Port Specifications
| Specification |
Details |
| Total Ports |
8 |
| Port Type |
Gigabit RJ45 Ethernet |
| Port Speed |
10/100/1000Mbps |
| Auto Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
Network Standards
| Standard |
Support |
| IEEE 802.3 |
Yes |
| IEEE 802.3u |
Yes |
| IEEE 802.3x |
Yes |
| CSMA/CD |
Supported |
Performance Specifications
| Specification |
Details |
| Data Rates (Half Duplex) |
10/100/1000Mbps |
| Data Rates (Full Duplex) |
20/200/2000Mbps |
| Switching Method |
Store-and-Forward |
| Jumbo Frame Support |
9KB |
| Buffer Capacity |
64KB |
Network Features
| Feature |
Benefit |
| Auto MDI/MDIX |
No crossover cables required |
| Auto Negotiation |
Automatic speed detection |
| MAC Address Learning |
Optimised traffic forwarding |
| Store-and-Forward |
Improved transmission reliability |
| Full Duplex Support |
Enhanced network performance |
Energy Management
| Specification |
Details |
| Power Supply |
9V DC External Adapter |
| Input Voltage |
9V |
| Input Current |
0.6A |
| Green Ethernet Technology |
Supported |
| Power Saving |
Up to 82% |
Design Features
| Feature |
Details |
| Form Factor |
Compact Desktop |
| Rack Mountable |
No |
| Stackable |
No |
| LED Indicators |
Power and Port Activity |
| Construction |
Compact Lightweight Design |
Compatibility
| Device Type |
Supported |
| Desktop PCs |
Yes |
| Laptops |
Yes |
| Network Printers |
Yes |
| IP Cameras |
Yes |
| Smart TVs |
Yes |
| Gaming Consoles |
Yes |
| NAS Devices |
Yes |
Physical Specifications
| Specification |
Details |
| Width |
144.8 mm |
| Depth |
72.3 mm |
| Height |
25 mm |
| Alternative Dimensions |
127 x 60.3 x 22 mm (manufacturer listing) |
| Colour |
Black |
Package Contents
- Mercusys MS108G 8-Port Gigabit Ethernet Switch
- 9V Power Adapter
- Quick Installation Guide
Ideal Applications
- Home Network Expansion
- Small Office Networking
- Gaming Setups
- IP Camera Systems
- Media Streaming Networks
- Smart Home Connectivity
- Dormitory Networks
- Network Attached Storage (NAS)
Product Identifiers
<
| Identifier |
Value |
| Brand |
Mercusys |
| Model |
MS108G |
| Product Type |
Gigabit Ethernet Switch |
| Switch Type |
Unmanaged |
| Ports |
8 x Gigabit RJ45 |
| Maximum Port Speed |
1000Mbps |
