Key Features
- 8 x Gigabit Ethernet RJ45 Ports
- 7 x PoE+ Ports Supporting IEEE 802.3af/at
- 65W Total PoE Power Budget
- Up to 30W Power Delivery per PoE Port
- Extended PoE Transmission up to 250 Metres
- One-Click Isolation Mode for Enhanced Security
- Durable Metal Housing for Improved Heat Dissipation
- Plug-and-Play Deployment with No Configuration Required
Product Description
Reliable Power and Connectivity in One Device

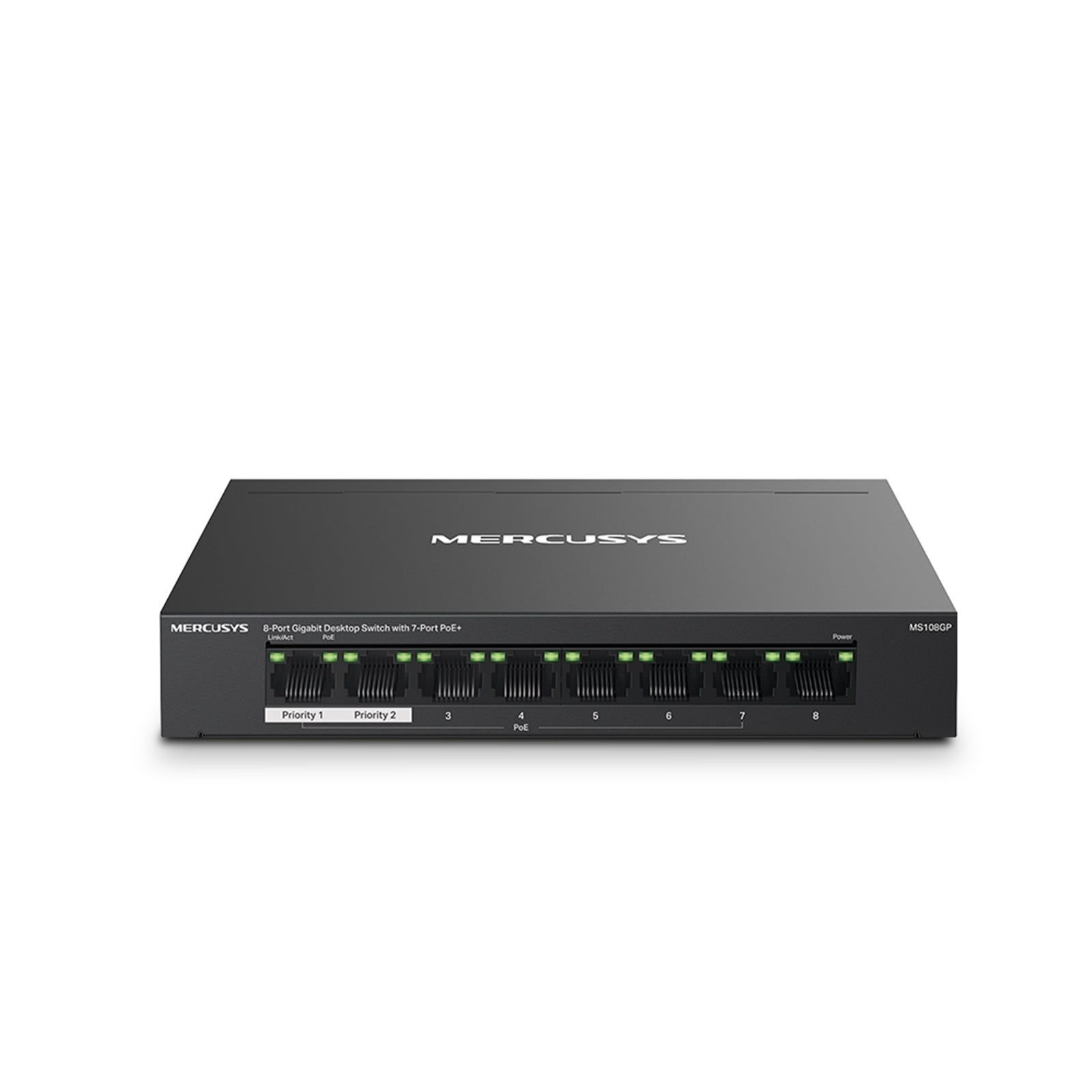

The Mercusys MS108GP combines Gigabit switching performance with Power over Ethernet functionality, making it ideal for IP cameras, wireless access points, VoIP phones and other PoE-enabled network devices. With seven PoE+ ports and a total power budget of 65W, it simplifies installations by delivering both power and data through a single Ethernet cable.
High-Speed Gigabit Networking
Eight Gigabit Ethernet ports provide fast and stable wired connectivity for modern networks. The switch supports auto-negotiation and auto MDI/MDIX, ensuring seamless compatibility with a wide range of network devices.
Powerful PoE+ Support
Seven PoE-enabled ports support IEEE 802.3af and IEEE 802.3at standards, providing up to 30W per port for compatible powered devices. This allows cameras, access points and IP telephony equipment to be deployed without requiring separate power adapters.
Extended Network Reach
Extend Mode enables PoE data and power transmission over distances up to 250 metres, making the MS108GP particularly suitable for surveillance installations and devices located far from the switch.
Enhanced Security and Stability
Isolation Mode separates traffic between selected ports, helping improve network security and stability while reducing unwanted communication between connected devices.
Main Benefits
-
Gigabit Performance: Fast network speeds across all ports.
-
PoE+ Convenience: Power and data delivered over one cable.
-
65W PoE Budget: Supports multiple powered devices.
-
Extended 250m Mode: Ideal for CCTV and remote installations.
-
Isolation Mode: Improved network security.
-
Metal Housing: Enhanced durability and cooling.
-
Plug & Play Installation: No complex setup required.
-
Wide Device Compatibility: Supports IEEE 802.3af/at powered devices.
General Specifications
| Specification |
Details |
| Manufacturer |
Mercusys |
| Model |
MS108GP |
| Product Type |
Gigabit PoE+ Desktop Switch |
| Switch Type |
PoE Gigabit Switch |
| Installation |
Desktop / Wall Mount |
| Housing Material |
Metal |
Port Specifications
| Specification |
Details |
| Total Ethernet Ports |
8 |
| Port Type |
Gigabit RJ45 (10/100/1000Mbps) |
| PoE Ports |
7 |
| Auto Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
PoE Specifications
| Specification |
Details |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Ports |
Ports 1-7 |
| Total PoE Power Budget |
65W |
| Maximum Power Per Port |
30W |
| PoE Transmission Distance |
Up to 250m (Extend Mode) |
Performance Specifications
| Specification |
Details |
| MAC Address Table |
8K Entries |
| Switching Method |
Store-and-Forward |
| Jumbo Frame Support |
9KB |
| Half Duplex Speed |
10/100/1000Mbps |
| Full Duplex Speed |
20/200/2000Mbps |
Networking Features
| Feature |
Benefit |
| Flow Control |
Improves transmission reliability |
| Auto MDI/MDIX |
No crossover cables required |
| Auto Negotiation |
Automatic speed detection |
| Policy-Based Routing |
Traffic management support |
| Traffic Classification |
Optimised network performance |
Special PoE Features
| Feature |
Benefit |
| Extend Mode |
PoE transmission up to 250 metres |
| Isolation Mode |
Enhanced port security and stability |
| PoE Power Management |
Efficient power distribution |
| Powered Device Detection |
Compatible with IEEE 802.3af/at devices |
Power Specifications
| Specification |
Details |
| Power Supply |
External Power Adapter |
| Output Voltage |
53.5V |
| Output Current |
1.31A |
| Maximum Power Consumption |
77.33W |
| Power Consumption (No PD) |
5.07W |
Heat & Environmental Performance
| Specification |
Details |
| Heat Dissipation (No PD) |
17.238 BTU/h |
| Heat Dissipation (65W Load) |
262.922 BTU/h |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% |
| Storage Humidity |
5% to 95% |
Design Features
| Feature |
Details |
| Housing |
Durable Metal Construction |
| Mounting Options |
Desktop or Wall Mount |
| Stackable |
No |
| Rack Mountable |
No |
| Colour |
Black |
Ideal Applications
- IP Surveillance Systems
- Wireless Access Point Deployments
- VoIP Phone Installations
- Retail & Hospitality Networks
- Small Office Infrastructure
- Smart Building Installations
- Network Expansion Projects
- Remote Camera Connectivity
Package Contents
- Mercusys MS108GP 8-Port Gigabit PoE+ Switch
- Power Adapter
- Quick Installation Guide
Product Identifiers
| Identifier |
Value |
| Brand |
Mercusys |
| Model |
MS108GP |
| Product Type |
Gigabit PoE+ Switch |
| Total Ports |
8 x Gigabit RJ45 |
| PoE Ports |
7 |
| PoE Budget |
65W |
| Maximum Port Power |
30W |
| Jumbo Frame Support |
9KB |
