Description

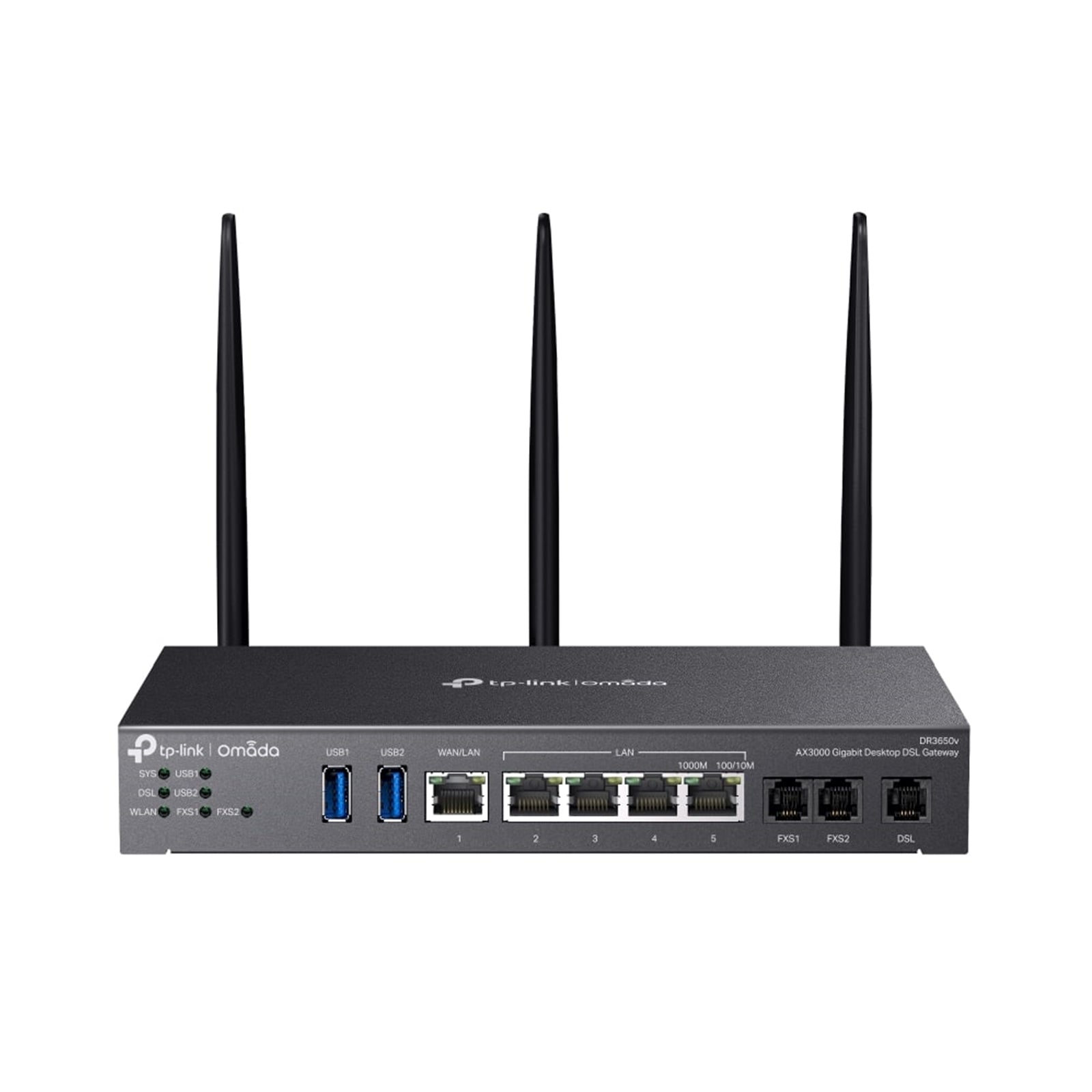

TP-Link Omada DR3650V AX3000 Wi-Fi 6 Gigabit Desktop VDSL Gateway Modem Router
AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*1*4VDSL2 35b: Supports 350Mbps DSL Access*2VDSL2/ADSL2+/ADSL2/ADSL CompatibilityCentralized Cloud ManagementIPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPNLoad Balancing Between DSL and Ethernet WANOmada Mesh Technology*33 x RJ11 Ports (2 x FXS, 1 x DSL) & 5 x RJ45 Gigabit Ports & 2 x USB 3.0 PortsDesktop/Wall Mounting8.9 x 5.2 x 1.4 in (226 x 131.2 x 35 mm) Attack Defense: TCP/UDP/ICMP Flood DefenseBlock TCP Scan (Stealth FIN/Xmas/Null)Block Ping from WAN Advanced Functions: Seamless RoamingMesh (with EAP that supports Mesh)OFDMABeamformingMU-MIMOWireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise WAN Connection Type: Static IPDynamic IPPPPoE (supports MRU Configuration)PPTPL2TP IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode Load Balance: Intelligent Load BalanceApplication Optimized RoutingLink Backup(Timing, Failover)Online Detection OpenVPN: OpenVPN ServerOpenVPN Client (5)*655 OpenVPN Tunnels"Certificate + Account" ModeFull Mode Web Authentication: No AuthenticationSimple Password*6Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6)External Radius SeverExternal Portal Sever*6LDAP Centralized Management: Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Automatic Device DiscoveryIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleCaptive Portal Configuration Environment: Operating Temperature: 0 �C to 40 �C (32 �F to 104 �F)Storage Temperature: -40 �C to 70 �C (-40 �F to 158 �F)Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensing
Specs
Memory
| Dimensions ( W x D x H ) | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are not included) |
| Antenna | 2.4 GHz: 2 x 3 dBi dual-band detachable antennas5 GHz: 3 x 4.5 dBi dual-band detachable antennas |
| Mounting | Desktop/Wall-mounting |
| Max Power Consumption | EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected) |
BIOS
| Flash | 256 MB NAND |
What's Included
| Package Contents | DR3650vPower AdapterEthernet CablePhone CableQuick Installation Guide |
Network
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 574 Mbps5 GHz: 2402 Mbps (HE160) |
| Guest Network | Support |
Physical
| Bandwidth Control | IP-Based Bandwidth Control |
Other
| Access Control | Source/Destination IP Based Access Control |
| Filtering | Web Group Filtering*5URL FilteringWeb Security*5 |
| ARP Inspection | Sending GARP PacketsARP Scanning*5IP-MAC Binding |
| Interface | 3 x RJ11 Ports (2 x FXS, 1 x DSL)5 x RJ45 Gigabit Ports (1x WAN/LAN Port, 4 xLAN Ports)2 x USB 3.0 Ports |
| Button | Reset Button |
| Power Supply | 12VDC / 3.3A Power Adapter |
| WireGuard VPN | 393.5Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 646.9MbpsESP-SHA256-AES256: 642.8MbpsESP-SHA384-AES256: 648.9MbpsESP-SHA512-AES256: 658.4 Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | Unencrypted: 1034.0 MbpsEncrypted: 570.0 Mbps |
| PPTP VPN Throughput | Unencrypted: 1165.0 MbpsEncrypted: 209.0 Mbps |
| SSL VPN Throughput | 126.7Mbps66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps1,518 Byte Packet forwarding rate81,274 pps / 91,275 pps |
| MAC Clone | Modify WAN Address |
| Advanced Routing | Static RoutingPolicy RoutingRIP*5OSPF*5 |
| Session Limit | IP-Based Session LimitVPN |
| IPsec VPN | 100 IPSec VPN TunnelsLAN-to-LAN, Client-to-LANMain, Aggressive Negotiation ModeDES, 3DES, AES128, AES192, AES256 Encryption AlgorithmIPsec FailoverIKE v1/v2MD5, SHA1, SHA2-384 and SHA2-512 Authentication AlgorithmNAT Traversal (NAT-T)Dead Peer Detection (DPD)Perfect Forward Secrecy (PFS) |
| WireGuard VPN | 20 Tunnels |
| Omada App | Yes |
| Cloud Access | Yes. Require the use of Omada Cloud-Based Controller. |
| Maintenance | Web Management InterfaceRemote ManagementExport & Import ConfigurationSNMP v1/v2c/v3Diagnostics (Ping & Traceroute)*5NTP Synchronize*5Port MirroringCLI (only in Standalone Mode)Syslog SupportTR-069 (data models of TR-098 and TR181 are supported) |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Certification | CE, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11MAC OS, NetWare, UNIX or Linux |
