Description

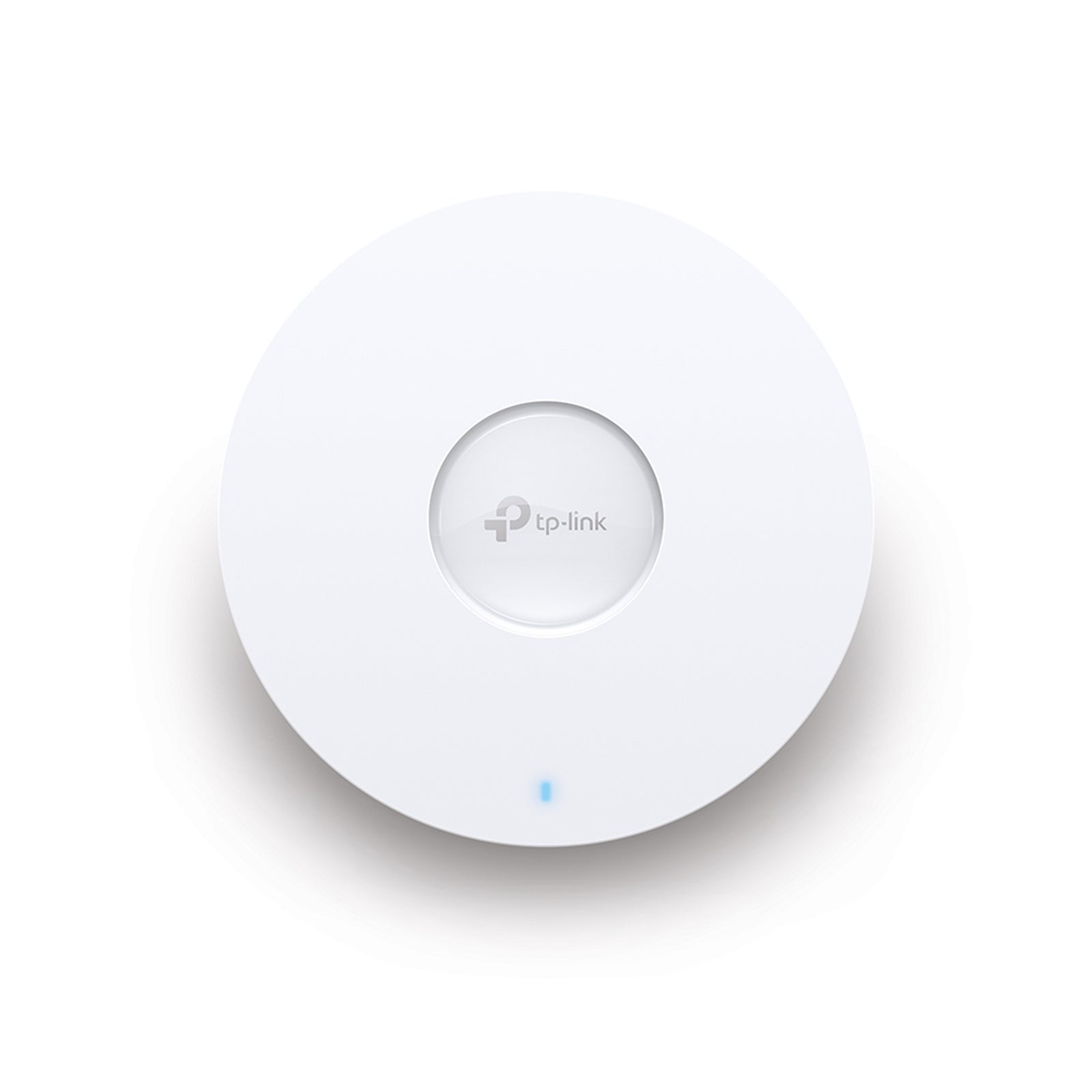

TP-Link Omada EAP670 AX5400 Ceiling Mount WiFi 6 Access Point
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app. 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160. Seamless Roaming: Video streams and voice calls are unaffected as users move between locations. Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment. FCC:<25 dBm (2.4 GHz)<28 dBm (5 GHz) Centralized Management:: Omada Hardware Controller (OC300)Omada Hardware Controller (OC200)Omada Software ControllerOmada Cloud-Based Controller Cloud Access:: Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) Package Contents:: EAP670Power AdapterCeiling/Wall Mounting KitsInstallation Guide System Requirements:: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Specs
What's Included
| Antenna Type: | Internal Omni2.4 GHz: 2x 4 dBi5 GHz: 4x 5 dBi |
Network
| Blazing-Fast WiFi 6 Speeds | Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds. |
| High-Efficiency WiFi 6 | More connected devices can enjoy faster speeds. |
| Wireless Client Capacity: | 250+ |
| Wireless Standards: | IEEE 802.11ax/ac/n/g/b/a |
| Frequency: | 2.4 GHz and 5 GHz |
| Signal Rate: | 5 GHz: Up to 4804 Mbps2.4 GHz: Up to 574 Mbps |
| Wireless Functions: | 1024-QAM4x Longer OFDM SymbolOFDMAMultiple SSIDs (Up to 16 SSIDs, 8 for each band)Enable/Disable Wireless RadioAutomatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)QoS(WMM)MU-MIMOHE160 (160 MHz Bandwidth)Seamless Roaming Omada MeshBand SteeringLoad BalanceAirtime FairnessBeamformingRate LimitReboot ScheduleWireless ScheduleWireless Statistics based on SSID/AP/Client |
| Wireless Security: | Captive Portal AuthenticationAccess ControlWireless Mac Address FilteringWireless Isolation Between ClientsSSID to VLAN MappingRogue AP Detection802.1X SupportWPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power: | CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, , band1 & band2, EIRP)<30 dBm(5 GHz, , band3, EIRP) |
| Management VLAN: | Yes |
Physical
| Dimensions ( W x D x H ): | 9.6 x 9.6 x 2.5 in (243 x 243 x 64 mm) |
Other
| PoE+ Powered | Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations. |
| Interface: | 1x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button: | Reset |
| Power Supply: | 802.3at PoE12 V / 1.5 A DC |
| Power Consumption: | EU: 18.1 W |
| Mounting: | Ceiling /Wall Mounting (Kits included) |
| Omada App: | Yes |
| Email Alerts: | Yes |
| LED ON/OFF Control: | Yes |
| Management MAC Access Control: | Yes |
| System Logging: | Local/Remote Syslog |
| Web-based Management: | HTTP/HTTPS |
| L3 Management: | Yes |
| Multi-site Management: | Yes |
| Zero-Touch Provisioning: | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Certification: | CE, FCC, RoHS |
