Description

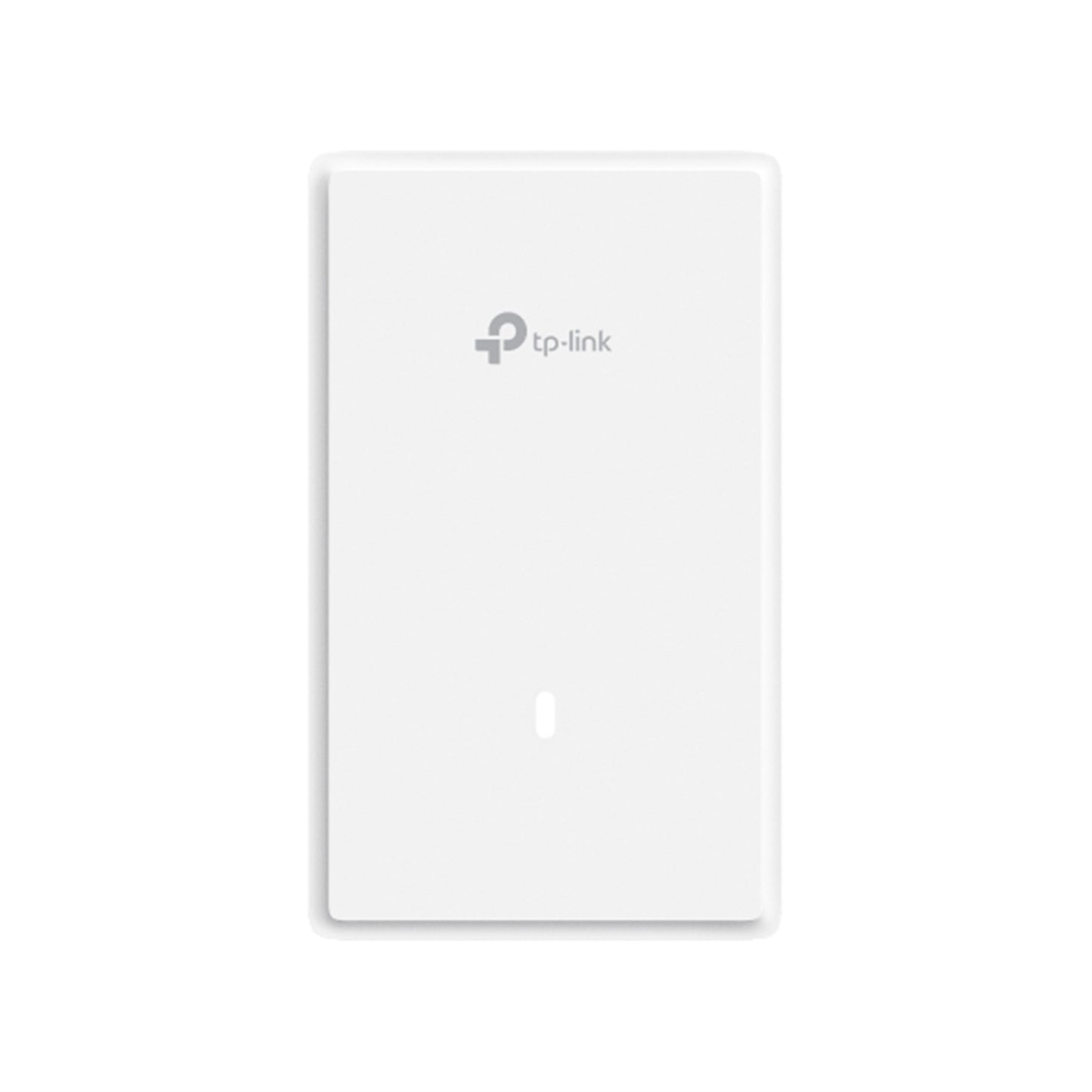

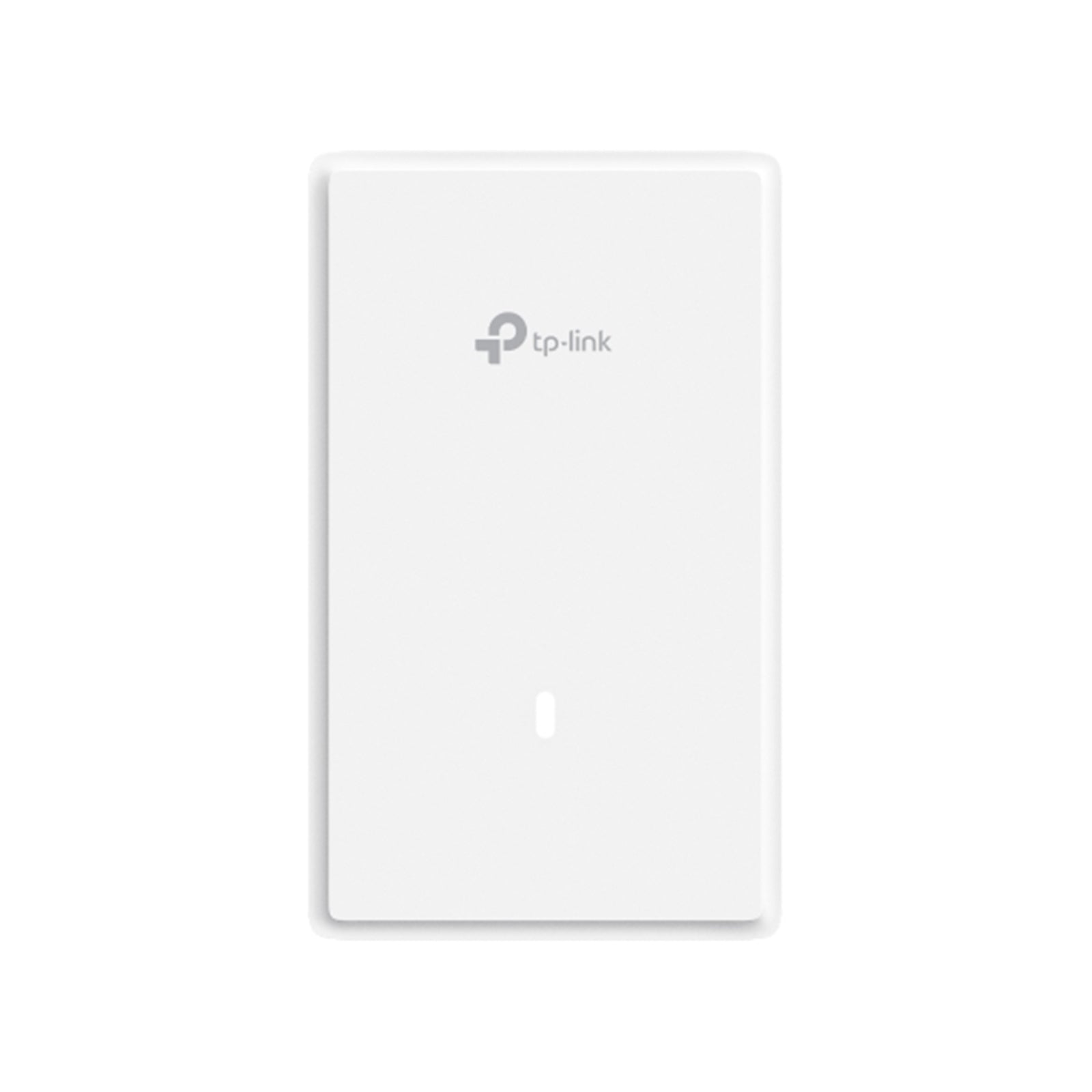

TP-Link Omada EAP725-WALL BE3600 Wall Plate Wi-Fi 7 Access Point
BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).1 x 2.5G PoE input port + 1x 2.5G pass-through port + 2x Gigabit RJ45 downlink ports. 160 MHz bandwidth enables many more simultaneous transmissions.Multi-RUs ensure the high performance of your network.Advanced Functions: Centralized management, Mesh, and Seamless Roaming. Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band)Enable/Disable Wireless RadioAutomatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)QoS(WMM)Seamless RoamingBeamformingRate Limit (Based on SSID/Client)Load BalanceAirtime FairnessBand SteeringReboot ScheduleWireless ScheduleRADIUS AccountingMAC AuthenticationWireless StatisticsStatic IP/Dynamic IP Centralized Management: Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux Environment: Operating Temperature: 040 c (32104 f)Storage Temperature: -4070 c (-40158 f)Operating Humidity: 1090% RH non-condensingStorage Humidity: 590% RH non-condensing
Specs
What's Included
| Antenna | 4x Internal Antennas2.4 GHz: 2 x 4 dBi5 GHz: 2 x 5 dBi |
| Package Content | EAP725-WallInstallation GuideMounting Kits |
Network
| Coverage | 50 M squared(600 ft�)** |
| Concurrent Clients | 250 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 2882 Mbps2.4 GHz: Up to 688 Mbps |
| Wireless Security | Captive Portal AuthenticationAccess ControlWireless Mac Address FilteringWireless Isolation Between ClientsVLANRogue AP DetectionWPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseTransmission Power<20 dBm (2.4GHz, EIRP)<23 dBm (5GHz, band 1 & band 2, EIRP)<25 dBm (5GHz, band 3, EIRP) |
| Management VLAN | Yes |
Physical
| Dimensions ( W x D x H ) | 143 x 86 x 40 mm (5.6 x 3.4 x 1.6 in) |
Other
| Interface | Uplink: 1 x 2.5G Ethernet PortDownlink: 1 x 2.5G Ethernet Port + 2x Gigabit Ethernet Ports(The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| Max. Power Consumption | 802.3bt: 17W (PoE Out support 15.4W)802.3at: 17W (PoE Out support 7W) |
| Mounting | Wall Mounting (Screws included) |
| Omada App | Yes |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| System Logging Local/Remote Syslog | System Log |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
