Description

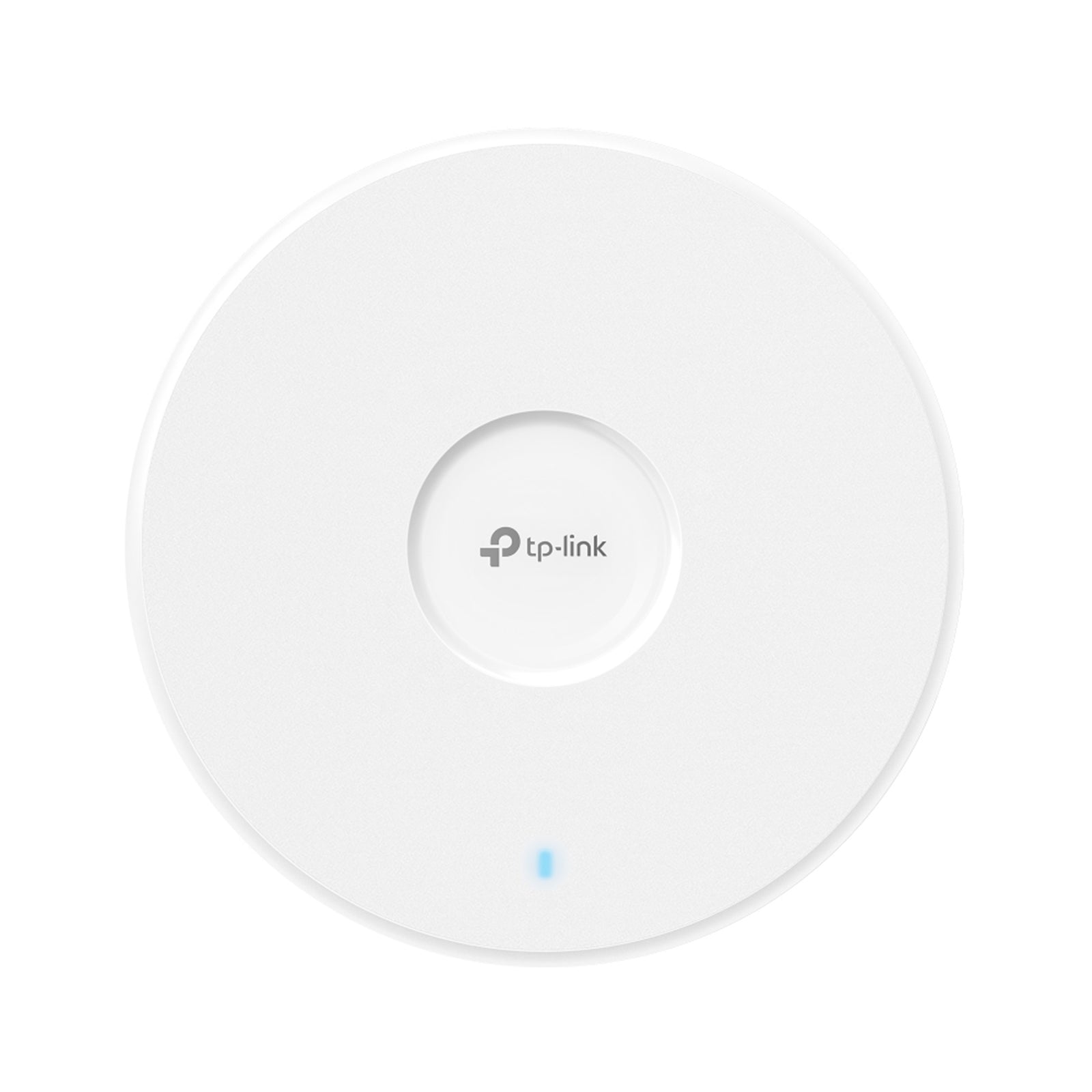

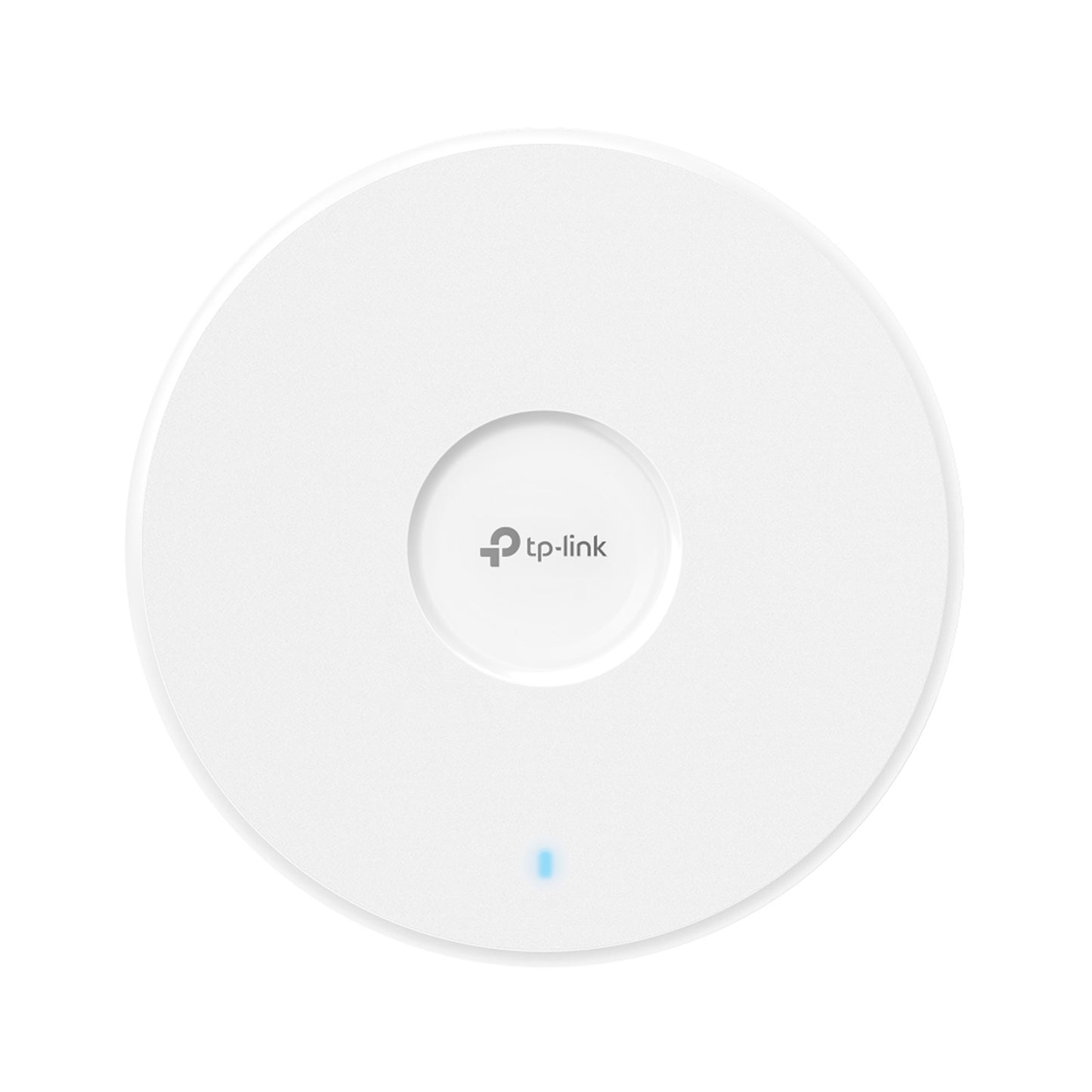

TP-Link Omada EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.1x 2.5G Port: Unlock the full potential of Wi-Fi 7.Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.Advanced Functions: Supports centralized management, mesh, and AI roaming Omada App: YesCentralized ManagementOmada Cloud-Based ControllerOmada Hardware Controller (OC300)Omada Hardware Controller (OC200)Omada Software Controller Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. Package Content: EAP773Installation GuideCeiling/Wall Mounting KitsNote: Power Adapter is NOT included. Environment: Operating Temperature: 0 �C40 �C (32 �F104 �F)Storage Temperature: -40 �C70 �C (-40 �F158 �F)Operating Humidity: 10%90% non-condensingStorage Humidity: 5%90% non-condensing
Specs
What's Included
| Antenna | 2.4 GHz: 2 x 3.0 dBi5 GHz: 2 x 3.0 dBi6 GHz: 2 x 3.0 dBi |
Network
| Bluetooth | 1 x 4.0 dBi, Bluetooth 5.2*Firmware update may be required. |
| Coverage | 140m squared(1500 ft�) |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz) |
| Wireless Functions | MLO4K-QAMMU-MIMOHE320MeshBSS ColoringOFDMALoad BalanceBand SteeringBeamformingAirtime FairnessMultiple SSIDS:24(8 on each band)Wireless ScheduleReboot ScheduleQoS(WMM)Rate LimitStatic IP/Dynamic IP RADIUS AccountingMAC Authentication |
| Wireless Security | Captive Portal AuthenticationAccess ControlMaximum number of MAC Filter: 4,000Wireless Isolation Between ClientsVLANRogue AP DetectionWPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | <20 dBm (2.4 GHz, EIRP)< 23 dBm (5 GHz, band 1&band 2, EIRP)< 28 dBm (5 GHz, band 3, EIRP)< 23dBm (6 GHz, EIRP) |
Physical
| Dimensions ( W x D x H ) | 8.7 x 8.7 x 1.3 in (220 x 220 x 32.5 mm) |
Other
| Interface | 1x 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Max. Power Consumption | 24.05 W (For PoE);20.92 W (For DC) |
| Mounting | Ceiling / Wall Mounting (Kits Included) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
