Description

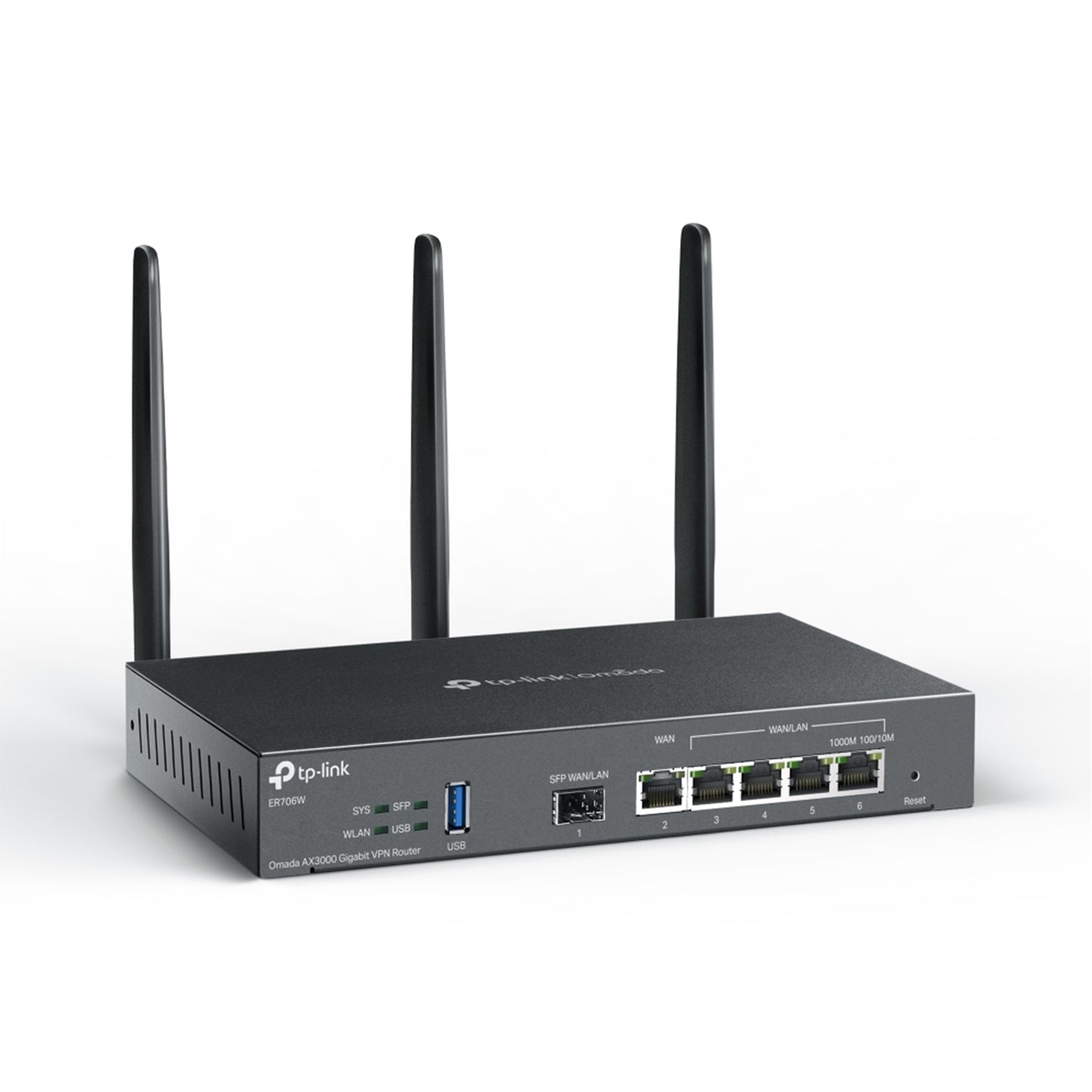

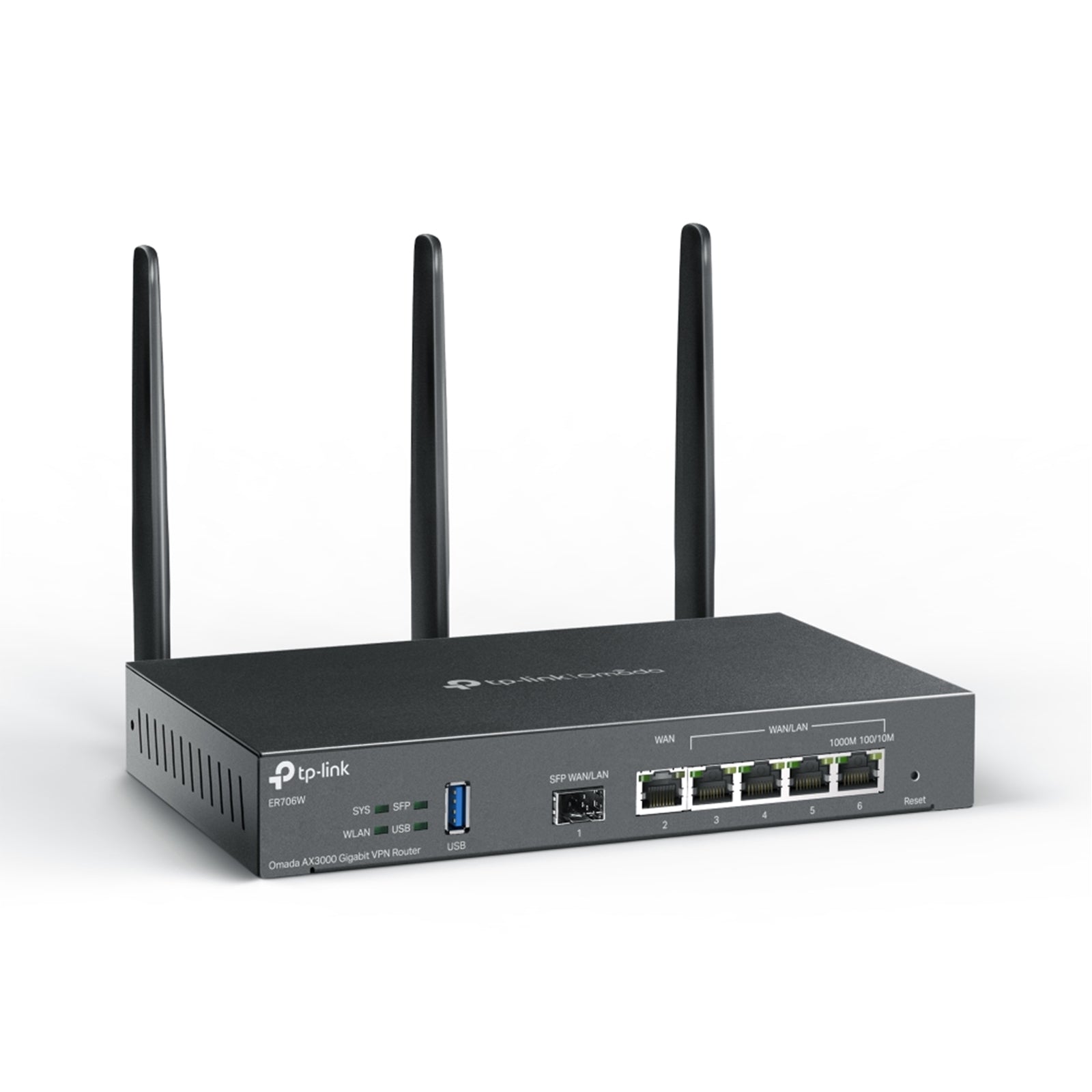

TP-Link Omada ER706W AX3000 WiFi 6 Gigabit VPN All-in-One Gateway Router
AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.**Centralized Management: Cloud access and Omada app for ultra convenience and easy management.Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.?Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data. Attack Defense: TCP/UDP/ICMP Flood DefenseBlock TCP Scan (Stealth FIN/Xmas/Null)Block Ping from WAN Advanced Functions: Seamless RoamingMesh (with EAP that supports Mesh)OFDMABeamformingMU-MIMOWireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise WAN Connection Type: Static IPDynamic IPPPPoE (supports MRU Configuration)PPTPL2TP IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode Load Balance: Intelligent Load BalanceApplication Optimized RoutingLink Backup(Timing, Failover)Online Detection OpenVPN: OpenVPN ServerOpenVPN Client (5)55 OpenVPN Tunnels"Certificate + Account" ModeFull Mode Web Authentication: No AuthenticationSimple PasswordHotspot (Local User / Voucher / SMS/ Radius)External Radius SeverExternal Portal SeverLDAP Centralized Management: Omada Cloud-Based ControllerOmada Hardware Controller (OC300)Omada Hardware Controller (OC200)Omada Software Controller Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNSCustomization) Maintenance: Web Management InterfaceRemote ManagementExport & Import ConfigurationSNMP v1/v2c/v3Diagnostics (Ping & Traceroute)NTP SynchronizePort MirroringCLI (only in Standalone Mode)Syslog Support Management Features: Automatic Device DiscoveryIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleCaptive Portal Configuration Environment: Operating Temperature: 0 �C to 40 �C (32 �F to 104 �F)Storage Temperature: -40 �C to 70 �C (-40 �F to 158 �F)Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensing
Specs
Memory
| Dimensions ( W x D x H ) | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are notincluded) |
| Antenna | 2.4 GHz: 2 x 3 dBi dual-band detachable antennas5 GHz: 3 x 4.5 dBi dual-band detachable antennas |
| Mounting | Desktop/Wall-mounting |
| Max Power Consumption | EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)US: 22.7W (with USB 3.0 connected) 18.2W (without USB 3.0 connected) |
BIOS
| Flash | 128 MB NAND |
What's Included
| Package Contents | ER706WPower AdapterQuick Installation Guide |
Network
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 574 Mbps5 GHz: 2402 Mbps (HE160) |
| Guest Network | Support |
Physical
| Bandwidth Control | IP-Based Bandwidth Control |
Other
| Access Control | Source/Destination IP Based Access Control |
| Filtering | Web Group FilteringURL FilteringWeb Security |
| ARP Inspection | Sending GARP PacketsARP ScanningIP-MAC Binding |
| Interface | 1 Gigabit SFP WAN/LAN Port1 Gigabit WAN Port4 Gigabit LAN/WAN Ports1 USB3.0 (supports USB LTE dongle and USB Storage) |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| WireGuard VPN | 393.5Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| NAT (Static IP) | 937.2 Mbps / 936.1Mbps |
| NAT(PPPoE) | 942.9 Mbps / 942.9Mbps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 646.9MbpsESP-SHA256-AES256: 642.8MbpsESP-SHA384-AES256: 648.9MbpsESP-SHA512-AES256: 658.4 Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | Unencrypted: 1034.0 MbpsEncrypted: 570.0 Mbps |
| PPTP VPN Throughput | Unencrypted: 1165.0 MbpsEncrypted: 209.0 Mbps |
| SSL VPN Throughput | 126.7Mbps66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps1,518 Byte Packet forwarding rate81,274 pps / 91,275 pps |
| MAC Clone | Modify WAN Address |
| Advanced Routing | Static RoutingPolicy RoutingRIPOSPF |
| Session Limit | IP-Based Session Limit |
| IPsec VPN | 100 IPSec VPN TunnelsLAN-to-LANClient-to-LANMain, Aggressive Negotiation ModeDES, 3DES, AES128, AES192, AES256 Encryption AlgorithmIPsec FailoverIKE v1/v2MD5, SHA1, SHA2-384 and SHA2-512 Authentication AlgorithmNAT Traversal (NAT-T)Dead Peer Detection (DPD)Perfect Forward Secrecy (PFS) |
| Omada App | Yes. |
| Cloud Access | Yes. |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11MAC OS, NetWare, UNIX or Linux |
