Description

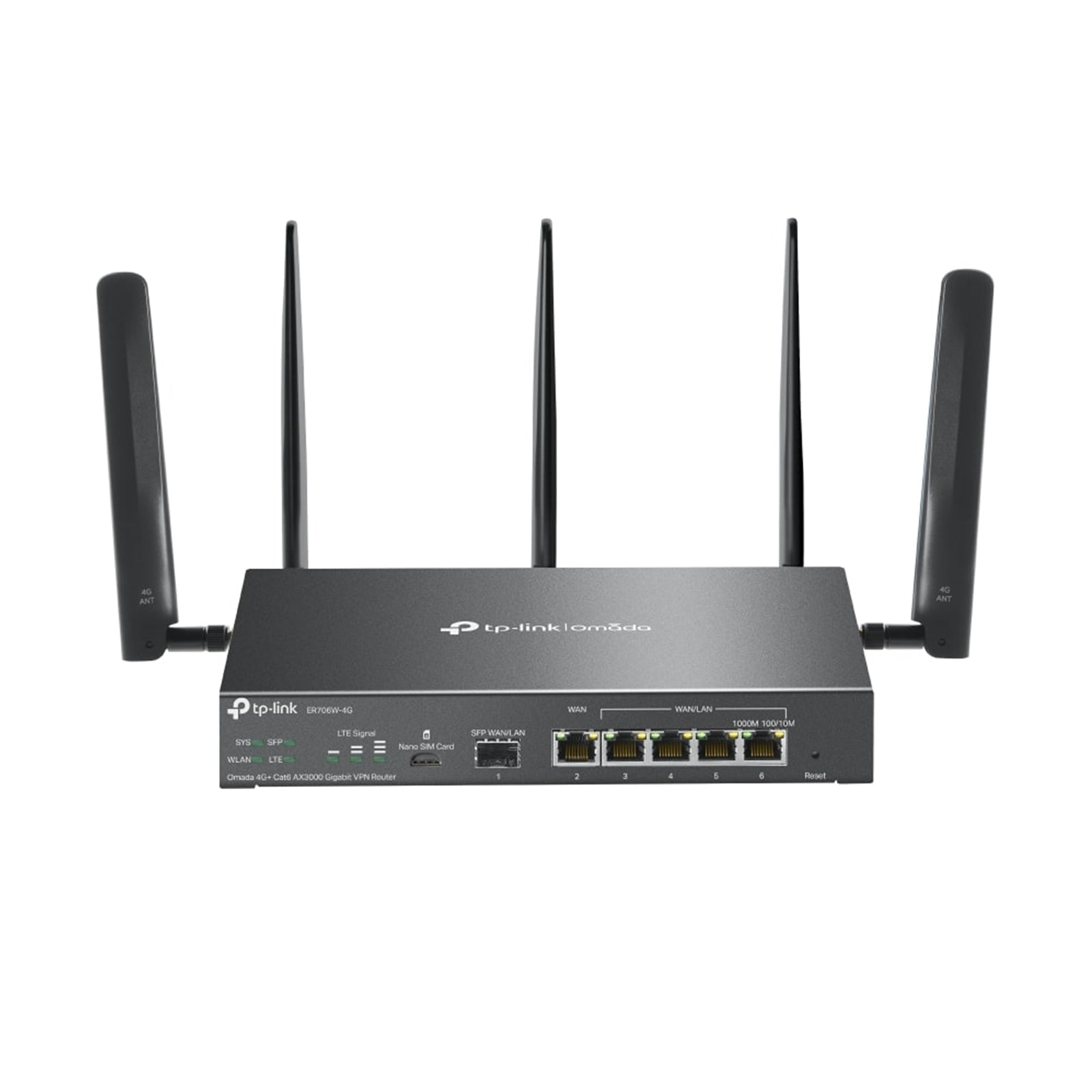

TP-Link Omada ER706W-4G 4G+ Cat6 AX3000 Gigabit VPN Router
Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps.AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.Centralized Management: Cloud access and the Omada app for easy management.Omada Mesh: Seamlessly connects to EAPs that support mesh technology.High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN. Carrier Aggregation: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41B3+B3/B5/B7/B8/B20/B28/B38/B40/B41B5+B5/B7/B38/B40/B41B7+B7/B8/B20/B28/B32B8+B32/B38/B40/B41B20+B32/B38/B40B28+B32/B38/B40/B41B38+B38B40+B40B41+B41 Attack Defense: TCP/UDP/ICMP Flood DefenseBlock TCP Scan (Stealth FIN/Xmas/Null)Block Ping from WAN IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode Load Balance: Intelligent Load BalanceApplication Optimized RoutingLink Backup(Timing, Failover) Online Detection OpenVPN: OpenVPN ServerOpenVPN Client (5)55 OpenVPN Tunnels"Certificate + Account" ModeFull Mode Web Authentication: No AuthenticationSimple PasswordHotspot (Local User / Voucher / SMS/ Radius)External Radius SeverExternal Portal SeverLDAP Centralized Management: Omada Cloud-Based ControllerOmada Hardware Controller (OC300)Omada Hardware Controller (OC200)Omada Software Controller Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Maintenance: Web Management InterfaceRemote ManagementExport & Import ConfigurationSNMP v1/v2c/v3Diagnostics (Ping & Traceroute)NTP SynchronizePort MirroringCLI (only in Standalone Mode)Syslog Support Management Features: Automatic Device DiscoveryIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleCaptive Portal Configuration Environment: Operating Temperature: 0 C to 40 C(32 F to 104 F)Storage Temperature: -40 C to 70 C (-40 F to 158 F)Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensing
Specs
BIOS
| Flash | 128 MB NAND |
What's Included
| Antenna | Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennasLTE: Two 4.0dBi omnidirectional detachable antennas |
| Package Contents | ER706W-4GPower AdapterQuick Installation Guide |
Network
| Network Type | LTE Band of EU:4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8(2100/1800/850/900 MHz) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 574 Mbps5 GHz: 2402 Mbps (HE160) |
| Guest Network | Support |
Rear Panel I/O Ports
| DPI Throughput | TCP: 933 MbpsUDP: 927 Mbps |
Physical
| Dimensions ( W x D x H ) | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are notincluded) |
| Bandwidth Control | IP-Based Bandwidth Control |
Other
| SIM Type | 1x Nano SIM Card |
| Frequency | Downlink: 300 MbpsUplink: 50 Mbps |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | Web Group FilteringURL FilteringWeb Security |
| ARP Inspection | Sending GARP PacketsARP ScanningIP-MAC Binding |
| Interface | 1 Gigabit SFP WAN/LAN Port1 Gigabit WAN Port4 Gigabit LAN/WAN Ports |
| Button | Reset Button |
| Power Supply | 12VDC / 2A Power Adapter |
| Mounting | Desktop/Wall-Mounting |
| Max Power Consumption | EU: 17.3W |
| IPS Throughput | TCP: 229 MbpsUDP: 188 Mbps |
| WireGuard VPN | 387.7Mbps |
| Concurrent Session | 150,000 |
| New Sessions | /Second5,100 |
| IPsec VPN Throughput | ESP-SHA1-AES256: 652.2MbpsESP-SHA256-AES256: 654.4MbpsESP-SHA384-AES256: 646.5MbpsESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN | 115.5Mbps |
| L2TP VPN Throughput | Unencrypted: 990.0MbpsEncrypted: 475.0Mbps |
| PPTP VPN Throughput | Unencrypted: 1177.9MbpsEncrypted: 177.4Mbps |
| SSL VPN Throughput | 122.5Mbps66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps1,518 Byte Packet forwarding rate81274 pps / 91275 pps |
| MAC Clone | Modify WAN Address |
| Advanced Routing | Static RoutingPolicy RoutingRIPOSPF |
| Session Limit | IP-Based Session Limit |
| IPsec VPN | 100 IPSec VPN TunnelsLAN-to-LAN, Client-to-LANMain, Aggressive Negotiation ModeDES, 3DES, AES128, AES192, AES256 Encryption AlgorithmIPsec FailoverIKE v1/v2MD5, SHA1, SHA2-384 and SHA2-512 Authentication AlgorithmNAT Traversal (NAT-T)Dead Peer Detection (DPD)Perfect Forward Secrecy (PFS) |
| WireGuard VPN | 20 Tunnels |
| Omada App | Yes. |
| Cloud Access | Yes. |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Certification | CE, FCC, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11MAC OS, NetWare, UNIX or Linux |
