Description

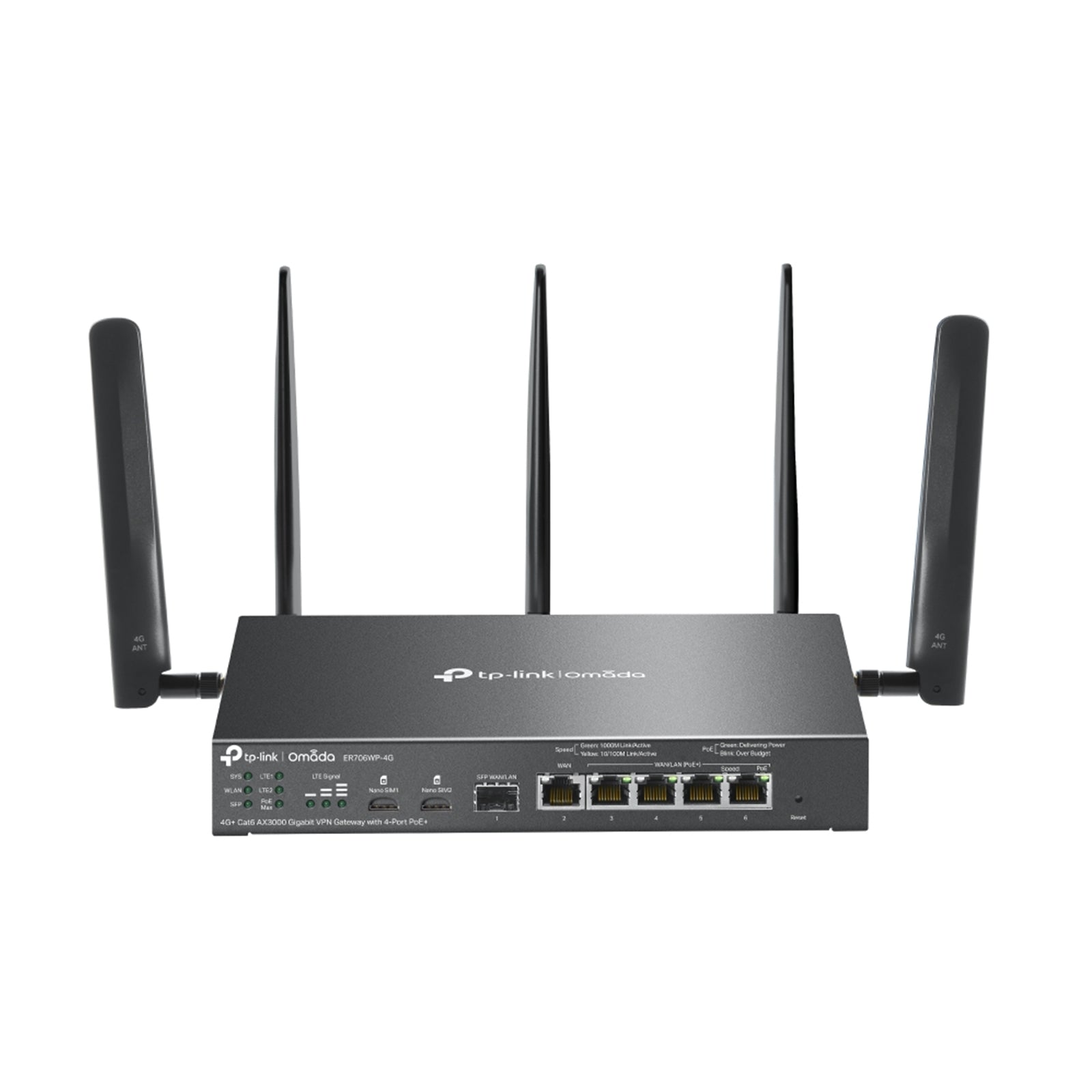

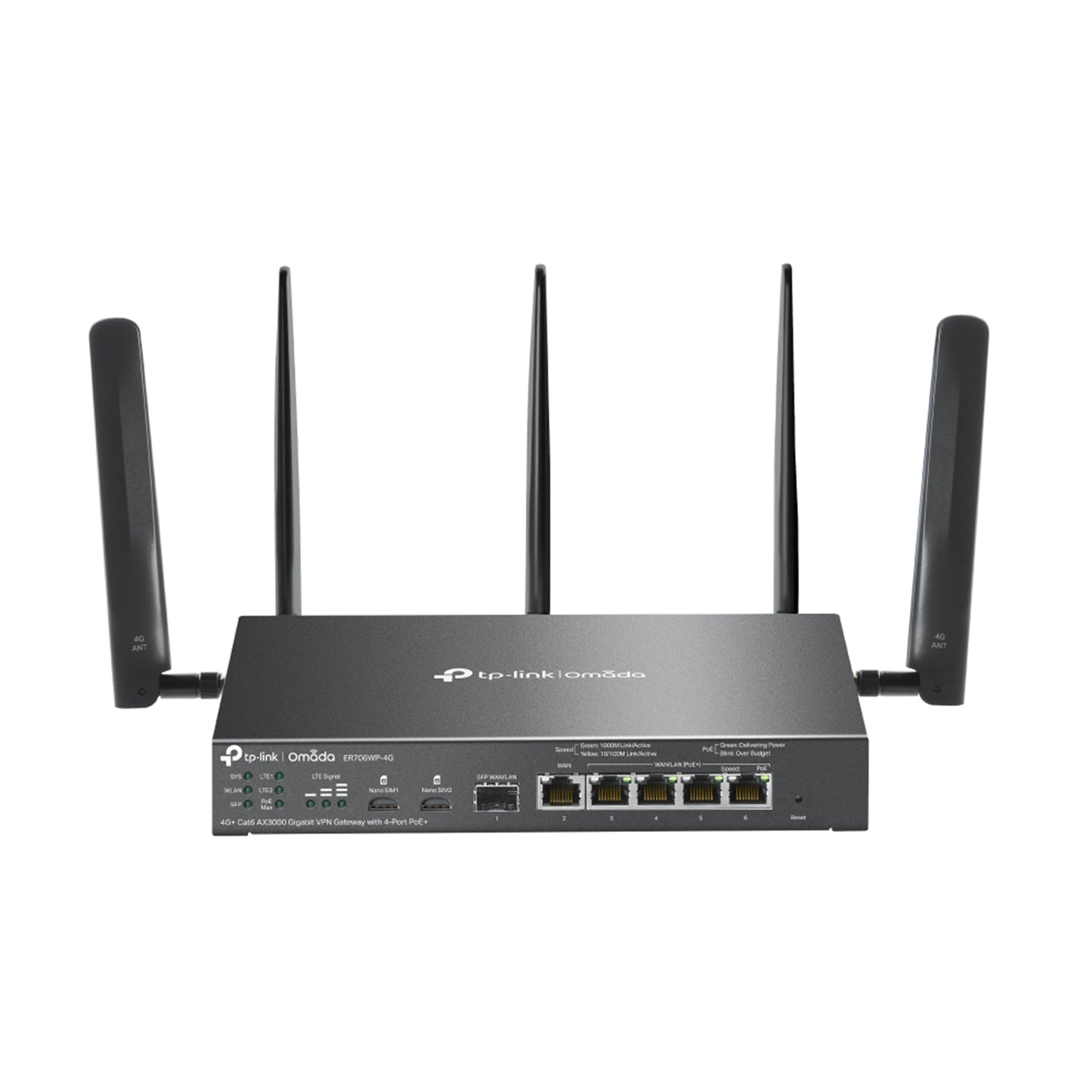

TP-Link Omada ER706WP-4G 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE
Support 4G+ Cat6*: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T's Text & Data plans** in the US).AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz***5 Gigabit Ethernet Ports: Provide high-speed wired connectivity.5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.Centralized Management: Cloud access and the Omada app for easy management.Omada Mesh: Seamlessly connects to EAPs that support mesh technology.*High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN. Carrier Aggregation of EU: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41B3+B3/B5/B7/B8/B20/B28/B38/B40/B41B5+B5/B7/B38/B40/B41B7+B7/B8/B20/B28/B32B8+B32/B38/B40/B41B20+B32/B38/B40B28+B32/B38/B40/B41B38+B38B40+B40B41+B41 Security: DPI - Application control via DPI / Updated app libraryIDS/IPS - Signature-based IPS/IDS threat detectionAccess Control - Source/Destination IP Based Access Control Attack Defense: TCP/UDP/ICMP Flood DefenseBlock TCP Scan (Stealth FIN/Xmas/Null)Block Ping from WAN 66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,488 pps1,518 Byte Packet forwarding rate - 81274 pps / 91275 pps Advanced Features: Seamless RoamingMesh (with EAP that supports Mesh)OFDMABeamformingMU-MIMORate Limit: Based on SSID/ClientAirtime FairnessWireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 EnterpriseMultiple SSIDs: 16 in total (8 per radio) Basic Functions: WAN Connection TypeStatic IPDynamic IPPPPoE (supports MRU Configuration)PPTPL2TP IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address modeVLAN - 802.1Q VLANIPTV - IGMP v2/v3 Proxy, Custom Mode, Bridge Mode Load Balance: Intelligent Load BalanceApplication Optimized RoutingLink Backup(Timing, Failover)Online Detection OpenVPN: OpenVPN ServerOpenVPN Client (5)55 OpenVPN Tunnels"Certificate + Account" ModeFull Mode Web Authentication: No AuthenticationSimple PasswordHotspot (Local User / Voucher / SMS / Radius)External Radius SeverExternal Portal SeverLDAP Centralized Management: Omada Cloud-Based ControllerOmada Hardware Controller (OC300)Omada Hardware Controller (OC200)Omada Software Controller Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Maintenance: Web Management InterfaceRemote ManagementExport & Import ConfigurationSNMP v1/v2c/v3Diagnostics (Ping & Traceroute)NTP SynchronizePort MirroringCLI (only in Standalone Mode)Syslog Support Management Features: Automatic Device DiscoveryIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleCaptive Portal Configuration Network Services Enabled by Default - Web ServerManage and configure device through web (HTTP/HTTPS)Port: 80/443 Protocol: TCP Environment: Operating Temperature: 0 �C to 40 �C (32 �F to 104 �F)Storage Temperature: -40 �C to 70 �C (-40 �F to 158 �F)Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensing
Specs
Processor
| TDP Server | Device discoveryPort: 20003 Protocol: UDP |
BIOS
| Flash | 256 MB NAND |
What's Included
| Antenna | Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennasLTE: Two 4.0dBi omnidirectional detachable antennas |
| Package Content | ER706WP-4GPower AdapterQuick Installation Guide |
Network
| Network Type | LTE Band of EU:4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8(2100/1800/850/900 MHz) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 574 Mbps5 GHz: 2402 Mbps (HE160) |
| Guest Network | Support |
| MAC Clone | Modify WAN Address |
Rear Panel I/O Ports
| DPI Throughput | TCP: 933 MbpsUDP: 927 Mbps |
Physical
| Dimensions ( W x D x H ) | 8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are not included) |
| Bandwidth Control | IP-Based Bandwidth Control |
Other
| SIM Type | 2x Nano SIM Card( (4G+ Cat6) |
| Frequency | Downlink: 300 Mbps;Uplink: 50 Mbps |
| Filtering | Web Group FilteringURL FilteringWeb Security |
| ARP Inspection | Sending GARP PacketsARP ScanningIP-MAC Binding |
| Interface | 1 Gigabit SFP WAN/LAN Port1 Gigabit WAN Port4 Gigabit LAN/WAN Ports |
| Button | Reset Button |
| Power Supply | 4 Ports PoE+ Output, 45 W PoE Budget |
| Mounting | Desktop/Wall-Mounting/Rackmount |
| Max. Power Consumption | 64.9W with PoE Max; 19.8W without PoE |
| IPS Throughput | TCP: 229 MbpsUDP: 188 Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,100 |
| IPsec VPN Throughput | ESP-SHA1-AES256: 652.2MbpsESP-SHA256-AES256: 654.4MbpsESP-SHA384-AES256: 646.5MbpsESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN | 115.5Mbps |
| L2TP VPN Throughput | Unencrypted: 990.0MbpsEncrypted: 475.0Mbps |
| PPTP VPN Throughput | Unencrypted: 1177.9MbpsEncrypted: 177.4Mbps |
| SSL VPN Throughput | 122.5Mbps |
| Access Control | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static RoutingPolicy RoutingRIPOSPF |
| Session Limit | IP-Based Session Limit |
| IPsec VPN | 100 IPSec VPN TunnelsLAN-to-LAN, Client-to-LANMain, Aggressive Negotiation ModeDES, 3DES, AES128, AES192, AES256 Encryption AlgorithmIPsec FailoverIKE v1/v2MD5, SHA1, SHA2-384 and SHA2-512 Authentication AlgorithmNAT Traversal (NAT-T)Dead Peer Detection (DPD)Perfect Forward Secrecy (PFS) |
| WireGuard VPN | 20 Tunnels |
| Omada App | Yes. |
| Cloud Access | Yes. |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| DHCP Server | Handle DHCP packetsPort: 67 Protocol: UDP |
| Certification | CE, FCC, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11MAC OS, NetWare, UNIX or Linux |
