Description

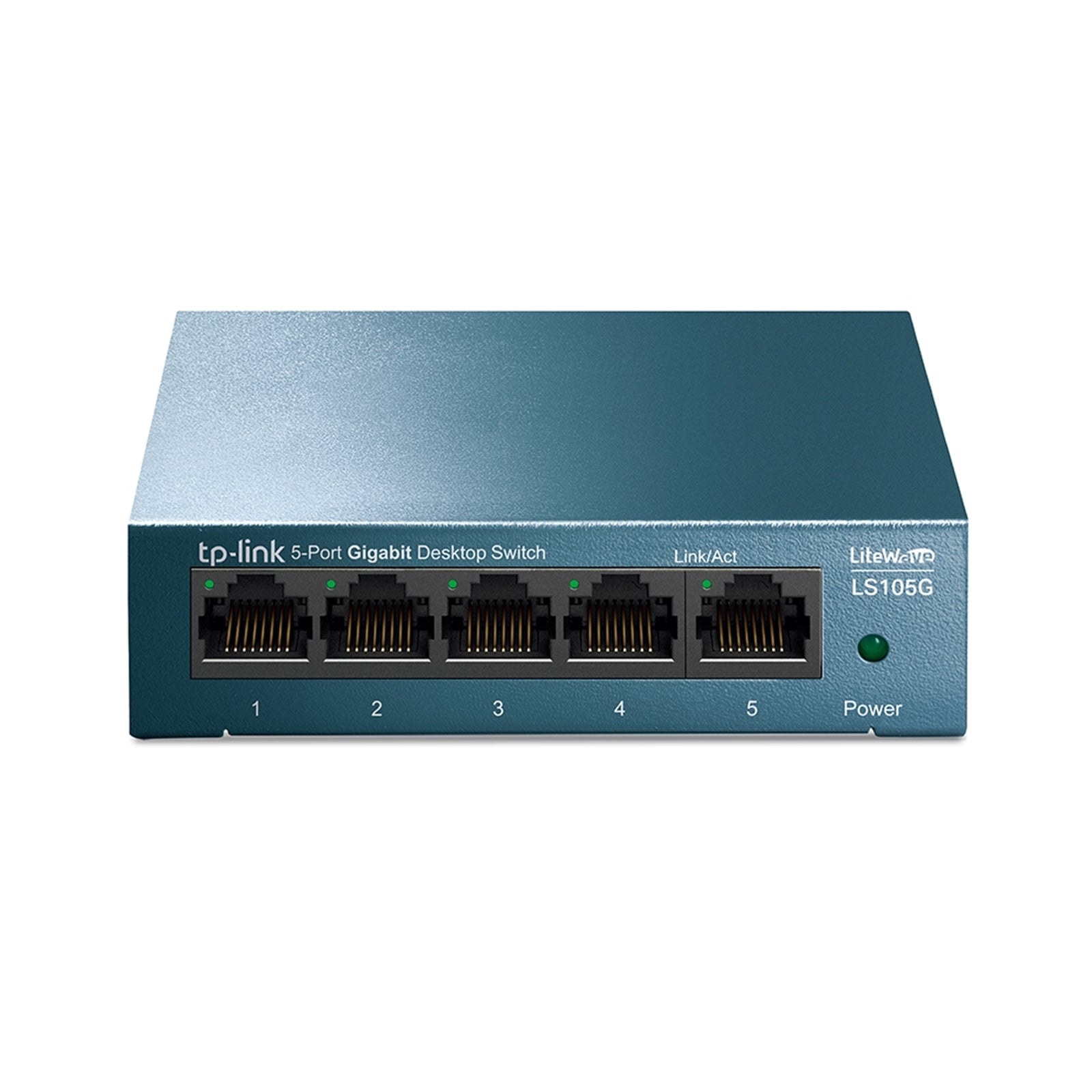

TP-Link LiteWave LS105G 5-Port 10/100/1000Mbps Metal Gigabit Desktop Network Switch
Let Bring You Lighter Network Life: The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, theres no need to worry about the type of cable to use. Go Green with Your Ethernet: The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills its a win-win! LED Indicator: System PowerLink/Act indicators per port built into each RJ-45 port Environment: Operating Temperature: 0�C~40�C (32�F~104�F)Storage Temperature: -40�C~70�C (-40�F~158�F)Operating Humidity: 10% ~ 90% non-condensingStorage Humidity: 5%~90% non-condensing
Specs
Memory
| MAC Address Table | 2K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
What's Included
| Package Contents | 5-Port 10/100/1000Mbps Desktop SwitchPower AdapterInstallation Guide |
Physical
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
Other
| Durable Metal Casing | The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches. |
| Use Where You Need, However You Need | The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses. |
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p |
| Interface | 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
| Max Power Consumption | 2.776W (220V/50Hz) |
| Max Heat Dissipation | 9.466 BTU/h |
| Packet Forwarding Rate | 7.4 Mpps |
| Advanced Features | Green Technology802.3X Flow Control802.1P/DSCP QoS |
| Transfer Method | Store and Forward |
| Certification | CE, FCC, RoHS |
