Description

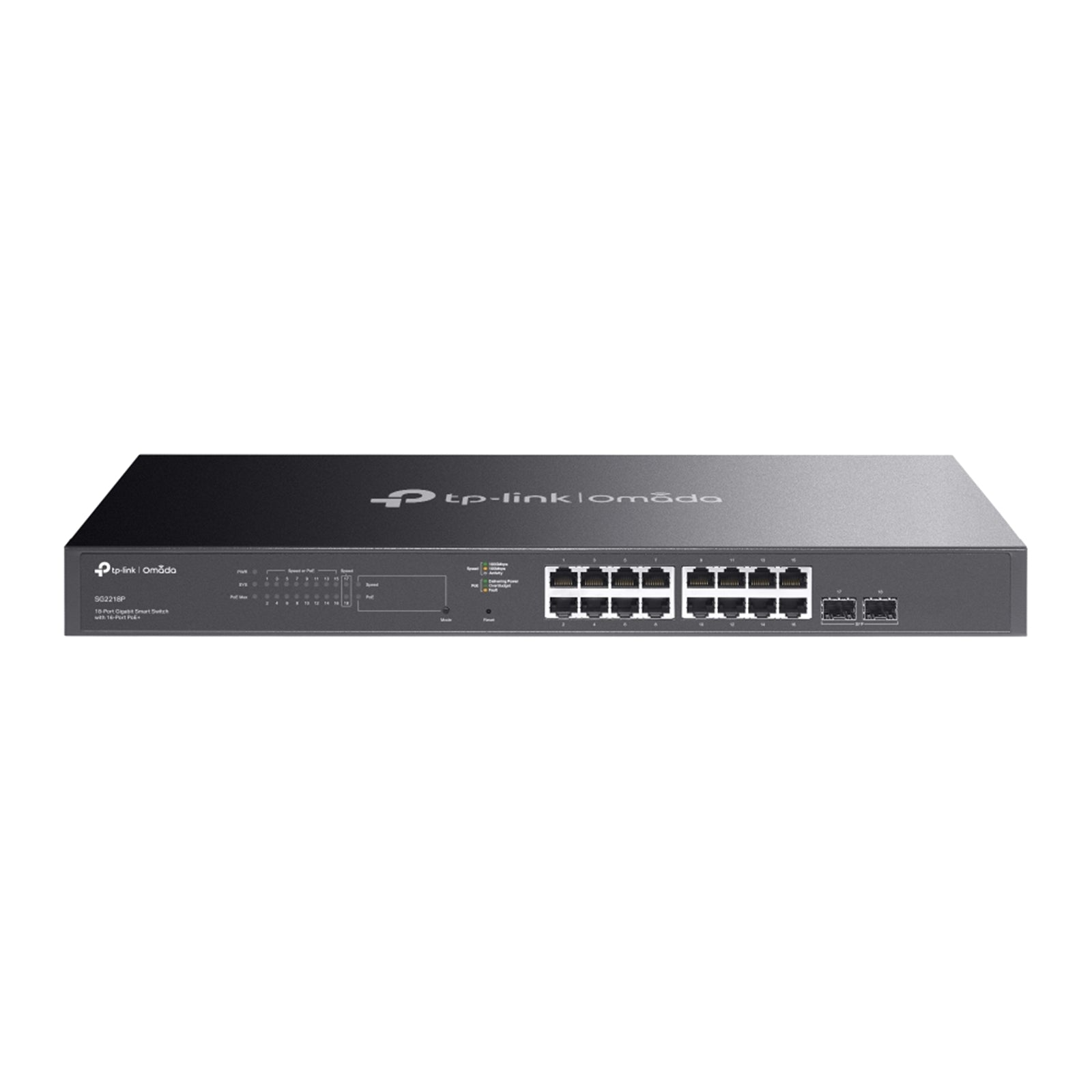

TP-Link Omada SG2218P 18-Port Gigabit Smart Switch with 16-Port PoE
Software Defined Networking (SDN) with Cloud Access: Remotely manage your access points, switches, and gateways across multiple sites all from a single interface. Interface16x 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)2x Gigabit SFP SlotsFan Quantity -Fanless DesignPhysical Security LockvPower Supply100-240V AC, 50/60HzPoE Ports (RJ45)Standard: 802.3at/af compliantPoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)PoE Power Budget: 150 W*Dimensions ( W x D x H )17.3x7.1x1.7 in (440x180x44 mm)MountingRack Mountable Switching Capacity36 GbpsPacket Forwarding Rate26.78 MppsMAC Address Table8KPacket Buffer Memory4.1 MbitJumbo Frame9 KB Quality of Service: 802.1p CoS/DSCP priority8 priority queuesPriority Schedule Mode- SP (Strict Priority)- WRR (Weighted Round Robin)Queue Weight ConfigBandwidth Control- Port/Flow based Rating LimitSmoother PerformanceStorm Control- Multiple Control Modes(kbps/ratio)- Broadcast/Multicast/Unknown-Unicast Control L2 Multicast: 511 IPv4, IPv6 shared multicast groupsIGMP SnoopingMulticast VLAN Registration (MVR)Multicast FilteringLimited IP Multicast (256 profiles and 16 entries per profile) Advanced Features: Automatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot Schedule MIBs: MIB II (RFC1213)Bridge MIB (RFC1493)P/Q-Bridge MIB (RFC2674)Radius Accounting Client MIB (RFC2620)Radius Authentication Client MIB (RFC2618)Remote Ping, Traceroute MIB (RFC2925)Support TP-Link private MIBsRMON MIB(RFC1757, rmon 1,2,3,9) Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management: Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. System Requirements: Microsoft Windows XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux. Environment: Operating Temperature: 045 C (32113 F);Storage Temperature: -4070 C (-40158 F)Operating Humidity: 1090% RH non-condensingStorage Humidity: 590% RH non-condensing
