Description

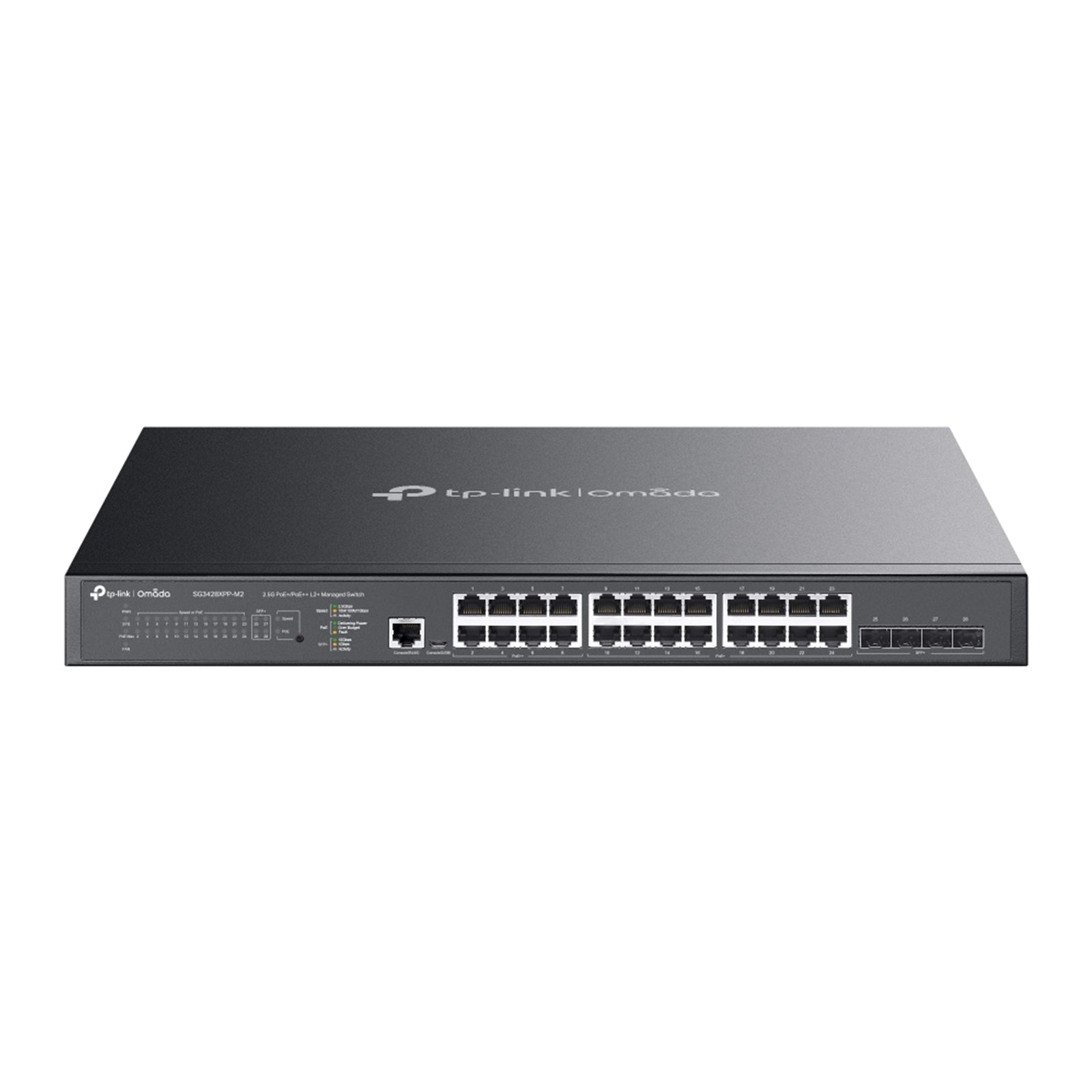

TP-Link Omada SG3428XPP-M2 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE
Software Features: Quality of Service8 priority queues802.1p CoS/DSCP priorityQueue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRRBandwidth Control: Port/Flow-based Rating LimitingSmoother PerformanceAction for Flows: QoS remark (802.1P Remark, DSCP Remark) L2 Multicast: Supports 511 (IPv4, IPv6) IGMP groupsIGMP SnoopingIGMP AuthenticationMulticast VLAN Registration (MVR)MLD SnoopingMulticast Filtering: 256 profiles and 16 entries per profileAdvanced FeaturesAutomatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot Schedule Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management: Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux. Environment: Operating Temperature: 040C (32104 F);Storage Temperature: -4070 C(-40158 F)Operating Humidity: 1090% RH non-condensingStorage Humidity: 590% RH non-condensing
Specs
What's Included
| Package Content | SG3428XPP-M2 SwitchPower CordQuick Installation GuideRackmount KitRubber Feet |
Network
| Security | IP-MAC-Port Binding512 EntriesDHCP SnoopingARP InspectionIPv4 Source Guard: 100 EntriesIPv6-MAC-Port Binding512 EntriesDHCPv6 SnoopingND DetectionND SnoopingIPv6 Source Guard: 100 EntriesDoS DefendDHCP FilterStatic/Dynamic Port Security: Up to 64 MAC addresses per portBroadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode802.1XPort-based authenticationMac-base authenticationVLAN AssignmentMABGuest VLANRadius authentication and accountability supportAAA (including TACACS+)Port IsolationSecure web management through HTTPS with SSLv3/TLS 1.2Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access controlIPv6IPv6 Dual IPv4/IPv6Multicast Listener Discovery (MLD) SnoopingIPv6 ACLIPv6 InterfaceStatic IPv6 RoutingIPv6 neighbor discovery (ND)Path maximum transmission unit (MTU) discoveryInternet Control Message Protocol (ICMP) version 6TCPv6/UDPv6IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | MIB II (RFC1213)Interface MIB (RFC2233)Ethernet Interface MIB (RFC1643)Bridge MIB (RFC1493)P/Q-Bridge MIB (RFC2674)RMON MIB (RFC2819)RMON2 MIB (RFC2021)Radius Accounting Client MIB (RFC2620)Radius Authentication Client MIB (RFC2618)Remote Ping, Traceroute MIB (RFC2925)Support TP-Link private MIB |
Rear Panel I/O Ports
| PoE Ports (RJ45) | Standard: 802.3bt/at/af compliantPoE++ Ports (802.3bt/at/af PoE): 8 Ports, up to 60 W per portPoE+ Ports (802.3at/af PoE): 16 Ports, up to 30 W per port |
Physical
| Dimensions ( W x D x H ) | 17.3x13.0x1.7 in (440x330x44 mm) |
Other
| Interface | 24x 2.5 Gbps RJ45 Ports (8x PoE++, 16x PoE+)4x 10G SFP+ Slots1x RJ45 Console Port1x Micro-USB Console Port |
| Fan Quantity | 3 |
| Physical Security Lock | Yes |
| Power Supply | 100-240 V AC~50/60 Hz |
| Power Budget | 500 W |
| Mounting | Rack Mountable |
| Max. Power Consumption | 629.1 W (110V/60Hz) |
| Max. Heat Dissipation | 2153.45 BTU/h (110 V/60 Hz) |
| Performance | Switching Capacity - 200 GbpsPacket Forwarding Rate - 148.80 MppsMAC Address Table - 32 KPacket Buffer Memory - 16 MbitJumbo Frame - 9 KB |
| L2 and L2+ Features | 32 IP Interfaces: Support IPv4/IPv6 InterfaceStatic Routing: 48 IPv4/IPv6 Static RoutesStatic ARP: 128 static entries512 ARP EntriesProxy ARPGratuitous ARPDHCP ServerDHCP Relay: DHCP Interface Relay, DHCP VLAN RelayDHCP L2 RelayLink AggregationSpanning Tree ProtocolLoopback Detection802.3x Flow ControlMirroring |
| ISP Features | L2PT (Layer 2 Protocol Tunneling)Device Link Detect Protocol (DLDP)PPPoE ID InsertionERPS802.3ah Ethernet Link OAMDDM |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Web-based GUI | Command Line Interface (CLI) through the console port, telnetSNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)SDM TemplateDHCP/BOOTP Client802.1ab LLDP/LLDP-MEDDHCP AutoInstallDual Image, Dual ConfigurationCPU MonitoringCable DiagnosticsEEEPassword RecoverySNTPSystem Log |
| Certification | CE, FCC, RoHS |
