Description

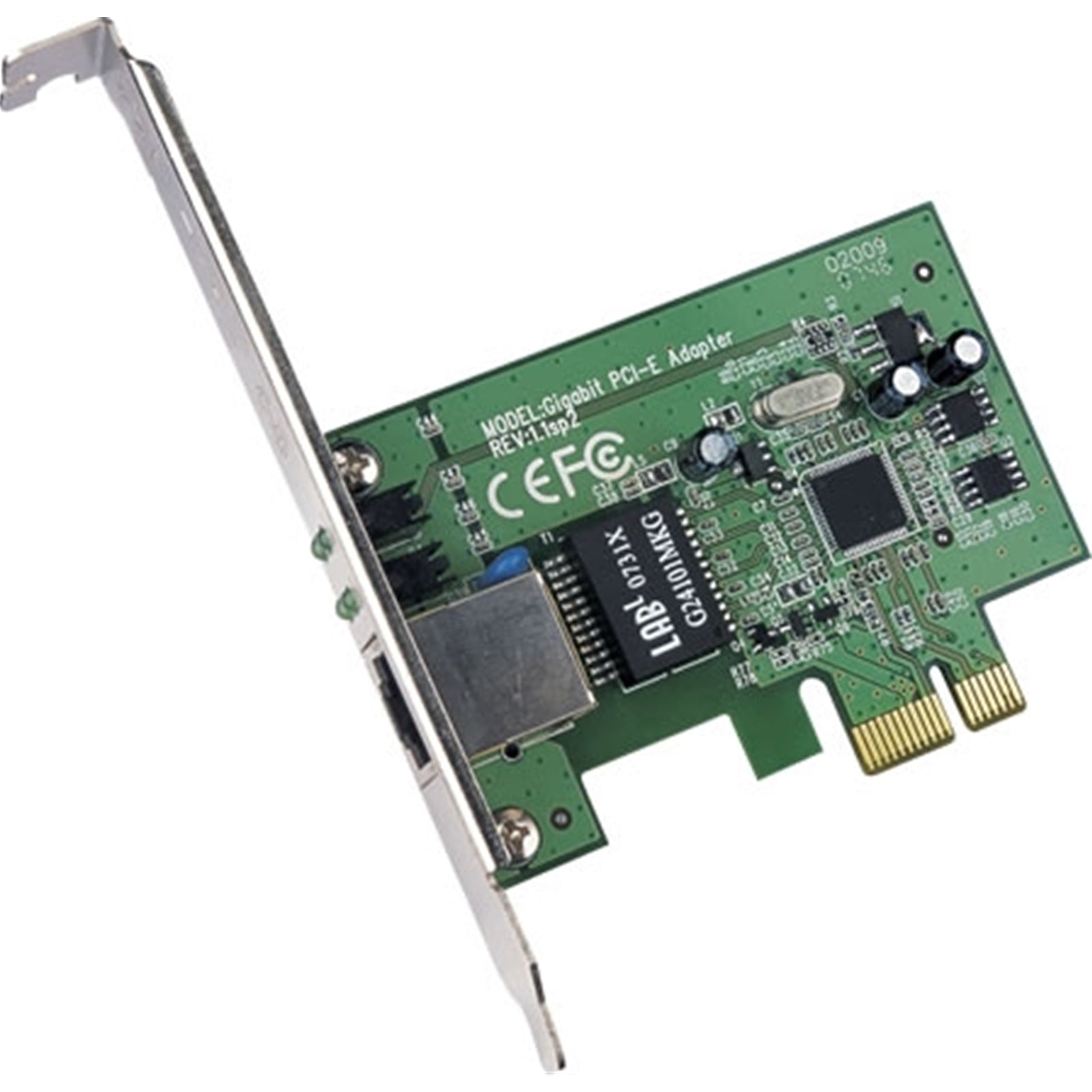

TP-Link TG-3468 Gigabit PCI Express Network Adapter
TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications. The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network. Package Contents:: Gigabit PCI Express Network Adapter TG-3468Resource CDQuick Installation Guide% non-condensing
Specs
Storage Controllers
| Storage Temperature: | -40C~70C (-40F~158F) |
| Storage Humidity: | 5%~90 |
Other
| Product Description: | TP-LINK (TG-3468) Gigabit PCI Express Network Adapter |
| Adapter Type: | PCI Express Adapter |
| Interface(s): | 32-bit PCI Express1 10/100/1000Mbps RJ45 port |
| Transmission Method: | Wired |
| Max Data Transfer Rate: | 10/100/1000 Mbps |
| Standards and Protocols: | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP |
| Flow Control: | IEEE 802.3x Flow Control (Full-Duplex) |
| Environment : | Operating Temperature: 0C~40C (32F~104F) |
| Operating Humidity: | 10%~90% non-condensing |
| Interface | 32-bit PCI Express / 1 10/100/1000Mbps RJ45 port |
| Data Rates | 10/100/1000Mbps Half-Duplex / 20/200/2000Mbps Full-Duplex |
| LED Indicator | 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act |
| Flow Control | IEEE 802.3x Flow Control (Full-Duplex) |
| Supports | Supports IEEE 802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex ModeSupports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN taggingSupports power down/link down power savingSupports Windows XP 32/64bit, Windows Vista 32/64bit, Windows7 32/64bit |
