| What This Product Does |

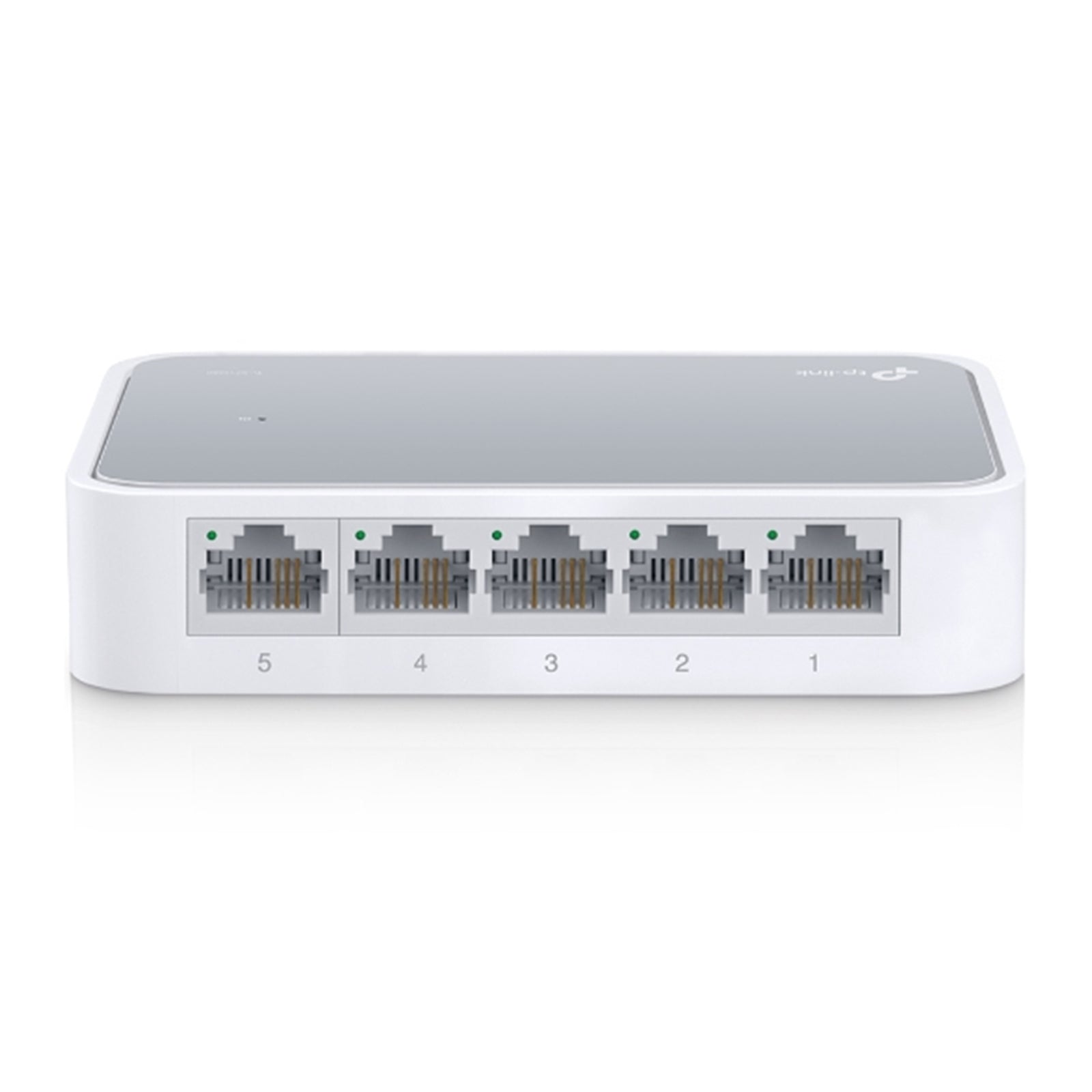

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network. |
| High Performance |
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably. |
| Easy to Use |
The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance. |
| Interface |
5 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity |
Fanless |
| External Power Supply |
External Power Adapter(Output: 5.0VDC / 0.6A) |
| Max Power Consumption |
1.87W(220V/50Hz) |
| Max Heat Dissipation |
6.38BTU/h |
| Transfer Method |
Store and Forward |
| Advanced Functions |
Green Technology802.3X Flow Control, Back Pressure |
| Certification |
FCC, CE, RoHs |
