Description

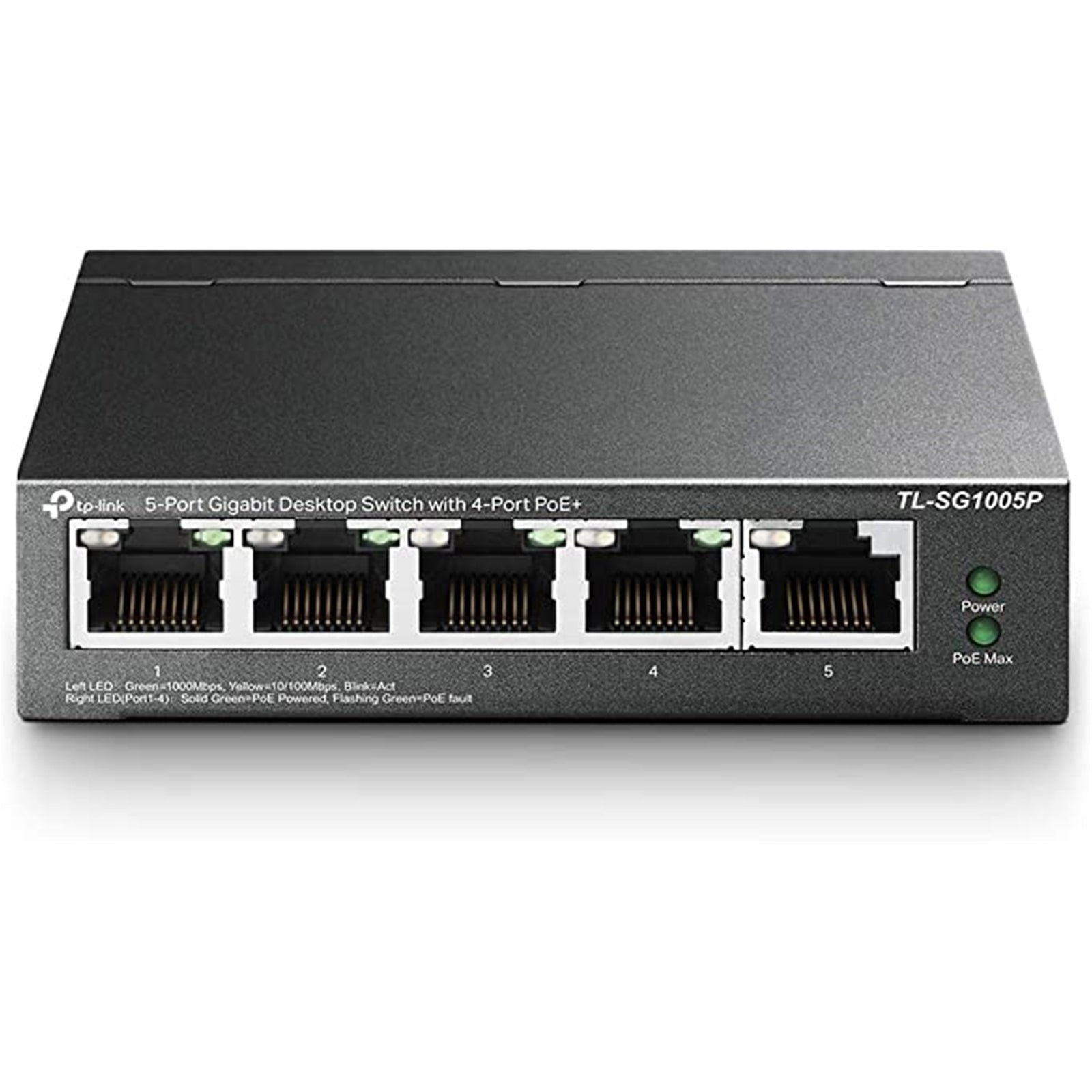

TP-Link TL-SG1005P 5-Port Metal Gigabit Desktop PoE Switch with 4-Port PoE+ (65W)
QoS For Fluent Online Experience: Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free. IGMP Snooping Traffic Optimization for IPTV: IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV. Durable Metal Casing: The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on. Environment: Operating Temperature: 040 degrees (32104 C)Storage Temperature: -4070 degrees (-40158 C)Operating Humidity: 1090% RH non-condensingStorage Humidity: 590% RH non-condensing
Specs
Memory
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
What's Included
| Package Contents | TL-SG1005PPower AdapterInstallation Guide |
Network
| Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications | Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 4 x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. |
| Plug and Play | No Configuration Required |
| Intelligent Power Management | When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority ports power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m) |
Rear Panel I/O Ports
| PoE Ports (RJ45) | Standard: 802.3 af/at compliantPoE Ports: Ports 14Power Supply: 65 W |
Physical
| Dimensions ( W x D x H ) | 3.9 x 3.9 x1.0 in (99.8 x 98 x25 mm) |
Other
| Interface | 5 x 10/100/1000Mbps RJ45 PortsAUTO NegotiationAUTO MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| Switching Capacity | 10 Gbps |
| Max Power Consumption | 4.29 W (220/50 Hz. no PD connected)74.24 W (220/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation | 14.63 BTU/h (no PD connected)253.16 BTU/h (with 65 W PD connected) |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDsMac Address Auto-Learning And Auto-AgingIEEE 802.3x Flow Control802.1p/DSCP QoSIGMP Snooping |
| Transfer Method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
