| What This Product Does |

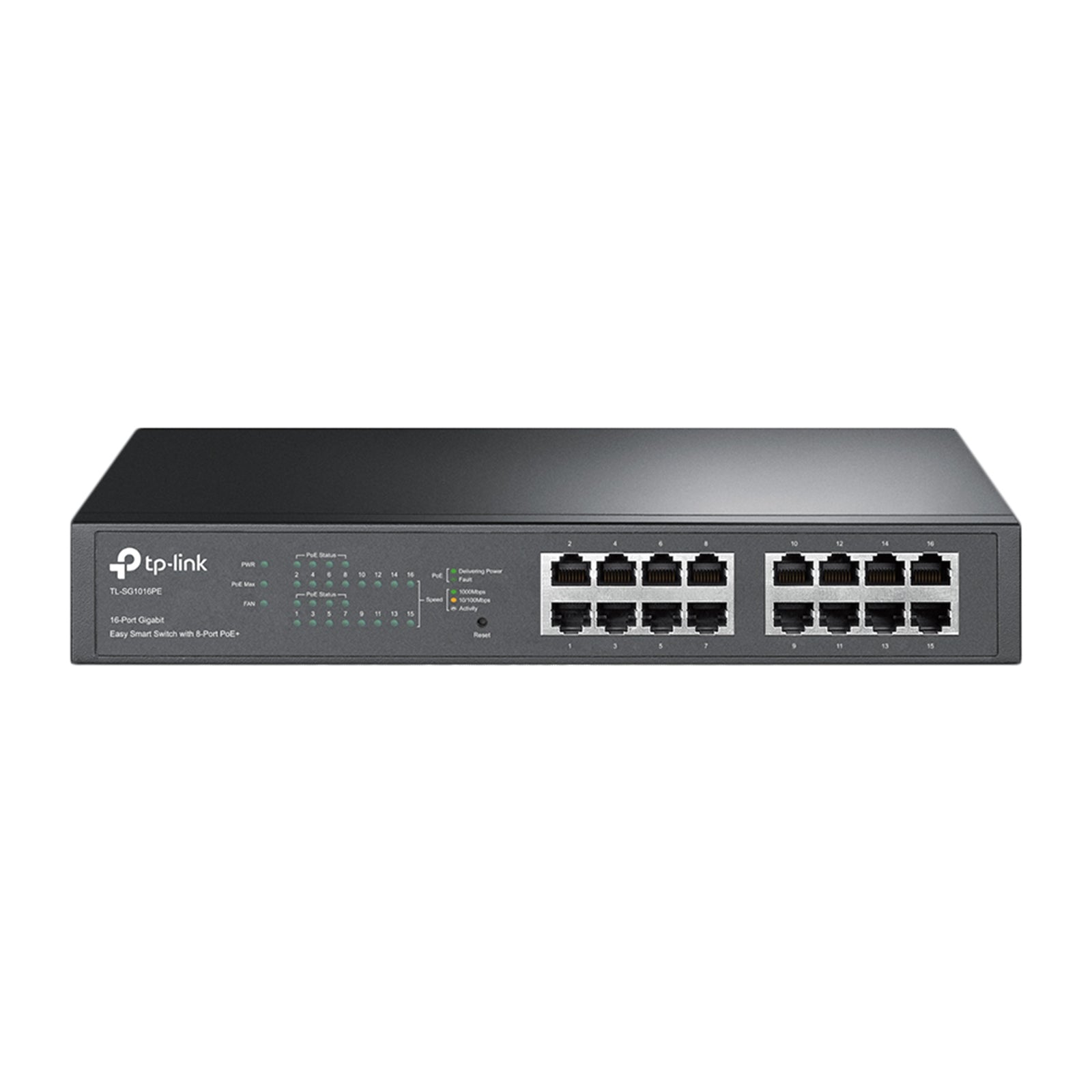

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network. |
| How This Product Works |
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones. |
| Overload Arrangement |
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices power consumption is greater than or equal to 150 W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port. |
| Port Priority Function |
Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 6 are using 30 W (maximum power per port is 30 W), the system power is 150 W in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W). If there is an additional PD inserted to Port 5 with 20 W then the system will cut off Port 6 to protect the system, this means Port 1, 2 ,3, and 4 will use 120 W, and Port 5 will use 20 W, and no power will be supplied to Port 6. |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface |
16x 10/100/1000 Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity |
1 |
| Physical Security Lock |
Yes |
| PoE Ports: |
Port 1 to Port 8 |
| PoE Power Budget: |
150 W |
| Mounting |
Rack Mountable/ Desktop |
| Max Power Consumption |
8.07 W (110 V/ 60 Hz with no PD connected)177.67 W (110 V/60 Hz with 150 W PD connected) |
| Max Heat Dissipation |
27.52 BTU/h (with no PD connected)605.85 BTU/h (with 150 W PD connected) |
| Switching Capacity |
32 Gbps |
| Packet Forwarding Rate |
23.8 Mbps |
| Certification |
FCC, CE, RoHS |
| System Requirements |
Microsoft Windows for running Utility |
