| What this product does |

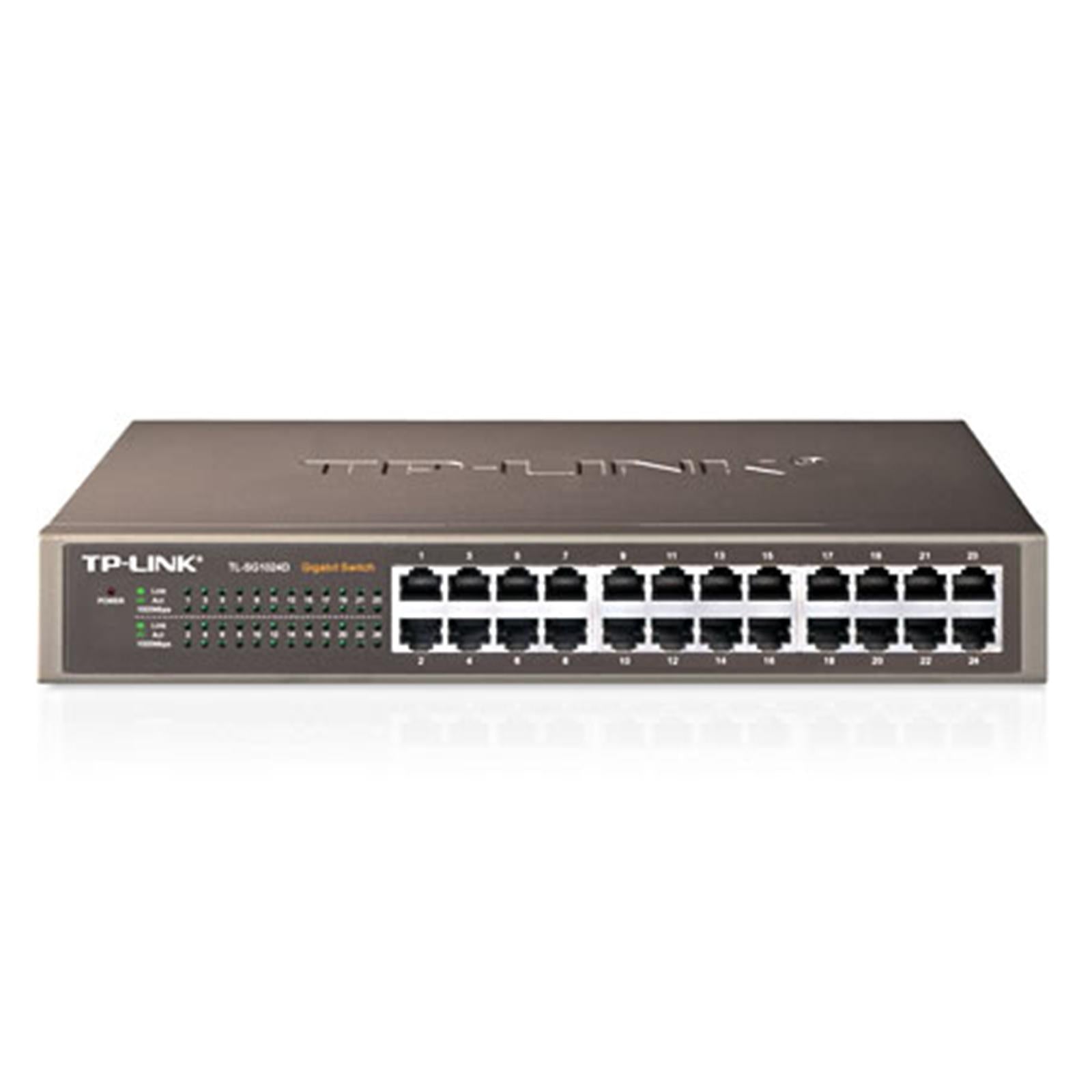

The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. |
| High Performance |
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra�ffic congestion and make The TL-SG1024D work reliably. Its a perfect choice to update your network to Gigabit while protecting your previous investment properly. |
| Easy to use |
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface |
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Fan Quantity |
Fanless |
| Physical Security Lock |
No |
| Power Supply |
100-240VAC, 50/60Hz |
| Mounting |
Rack Mountable |
| Max Power Consumption |
13.08W(220V/50Hz) |
| Max Heat Dissipation |
44.63BTU/h |
| Switching Capacity |
48Gbps |
| Packet Forwarding Rate |
35.7Mpps |
| Green Technology |
Yes |
| Transfer Method |
Store-and-Forward |
| Certification |
FCC, CE, RoHS |
