Description

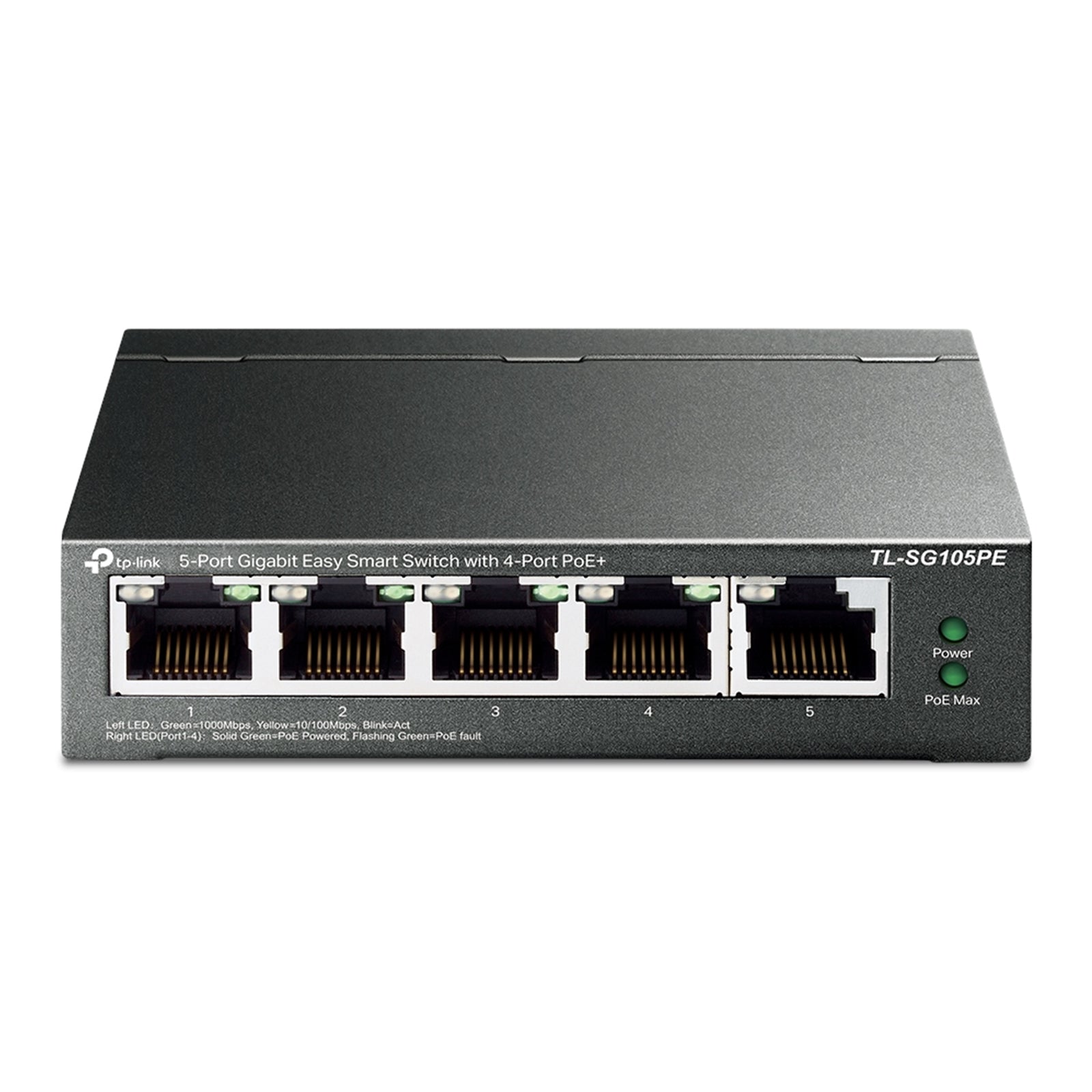

TP-Link TL-SG105PE 5-Port Metal Gigabit Easy Smart PoE Switch with 4-Port PoE+ (65W)
The TL-SG105PE is an 5-port Gigabit Easy Smart Switch with 4 PoE+ ports, represents a powerful upgrade from an unmanaged switch. It is designed specially for small businesses that require simple network management and PoE function. The TL-SG105PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG105PE can improve security and meet more network segmentation requirements. Effective Management: TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS.With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105PE can identify and even locate connection problems on your business network. Also, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free.Additionally, to improve security and network performance, TL-SG105PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.TL-SG105PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user. Quality of Service:: Support Port-based/802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control L2 Features:: IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop Prevention Package Contents:: TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
Specs
Memory
| MAC Address Table: | 8K |
| Packet Buffer Memory: | 4.1Mbit |
| Jumbo Frame: | 10KB |
Network
| Power Over Ethernet | 4 of the 5 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs). |
| Network Media: | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m) |
| Transmission Method: | Store-And-Forward |
Physical
| Dimensions ( W x D x H ): | 11.6*7.1*1.7 in. (294*180*44 mm) |
Other
| Overload Arrangement | TL-SG105PE has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 65 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port. |
| Intelligent Power Management | Priority (port 1>port 2>port 3>port 4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are consuming 15.4 W respectively. If an additional PoE device with 20 W is inserted to port 3, the system will cut off the power of port 4 to compensate for the overload. |
| Easy to Use | TL-SG105PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space. Dynamic LED lights provide real-time work status display and basic fault diagnosis. |
| Standards and Protocols: | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface: | 24 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity: | Fanless |
| Physical Security Lock: | No |
| Power Supply: | 100-240VAC, 50/60Hz |
| Mounting: | Rack Mountable |
| Max Power Consumption: | 14.19W (220V/50Hz) |
| Max Heat Dissipation: | 48.39 BTU/h |
| Switching Capacity: | 48Gbps |
| Packet Forwarding Rate: | 35.7Mpps |
| Certification: | FCC, CE, RoHS |
| System Requirements: | Microsoft Windows for running Utility |
