Description

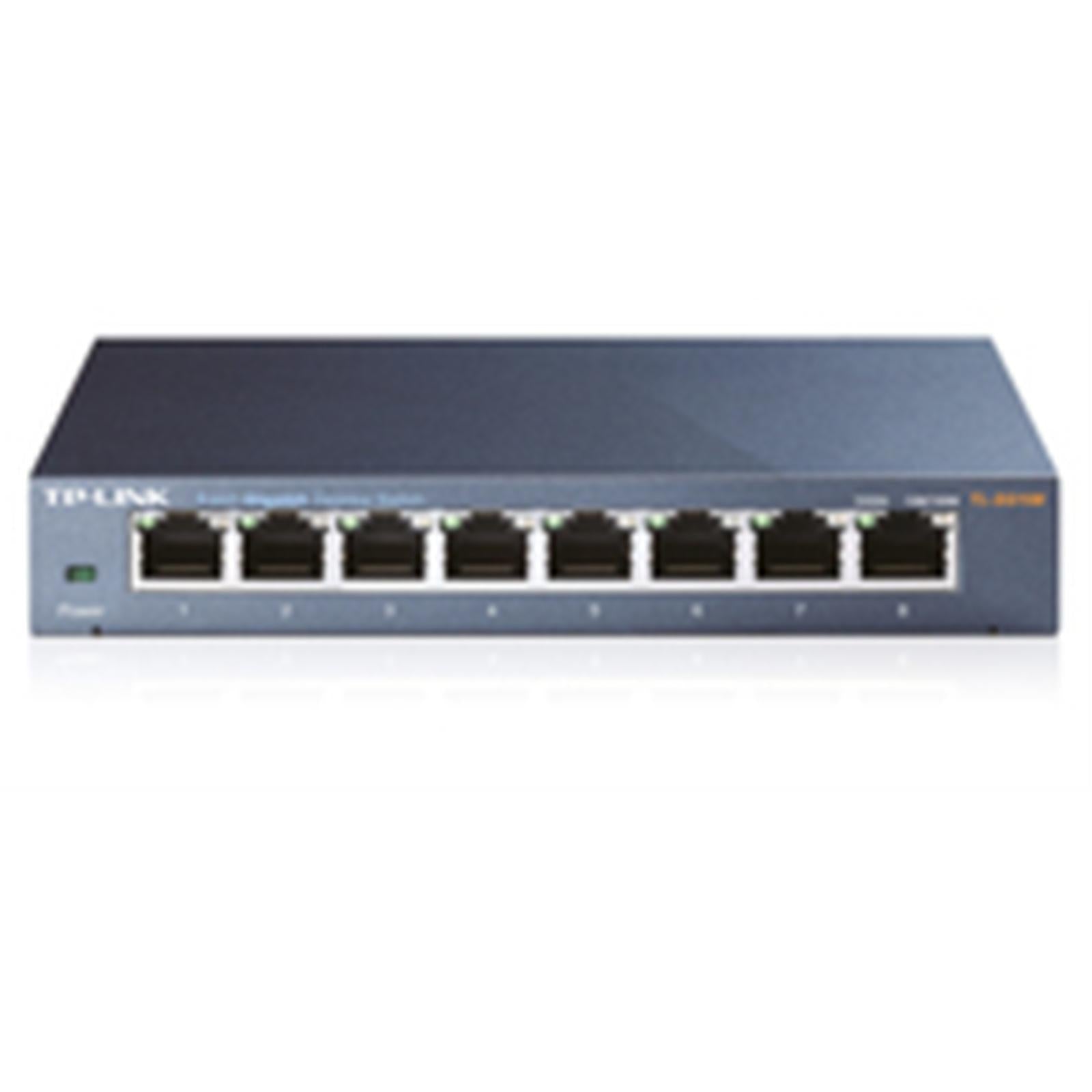

TP-Link TL-SG108 8-Port Metal 10/100/1000Mbps Gigabit Desktop Network Switch
Go Green With Your Ethernet: You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. LED Indicator: System PowerLink/Act indicators per port built into each RJ-45 port Environment: Operating Temperature: 0 - 40 Storage Temperature: -40 - 70 Operating Humidity: 10% - 90%, non-condensingStorage Humidity: 5% - 90% non-condensing
Specs
Memory
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 16KB |
What's Included
| Package Contents | 8-Port 10/100/1000Mbps Desktop SwitchPower AdapterInstallation Guide |
Network
| Gigabit Switch | Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. |
Physical
| Buffer Size | 1.5Mb |
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in.(158 x 101 x 25 mm) |
Other
| What This Product Does | The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 82% of the power consumption, making it an eco-friendly solution for your home or office network. |
| Standards and Protocols | IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p |
| Interface | 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter(Output: 9VDC / 0.6A) |
| Max Power Consumption | 3.3W |
| Max Heat Dissipation | 11.3BTU/h |
| Packet Forwarding Rate | 11.9Mpps |
| Advanced Features | Green Technology, saving power up to 82%802.3X Flow Control802.1p/DSCP QoSIGMP Snooping |
| Transfer Method | Store and Forward |
| Certification | CE, FCC ,RoHS |
