Description

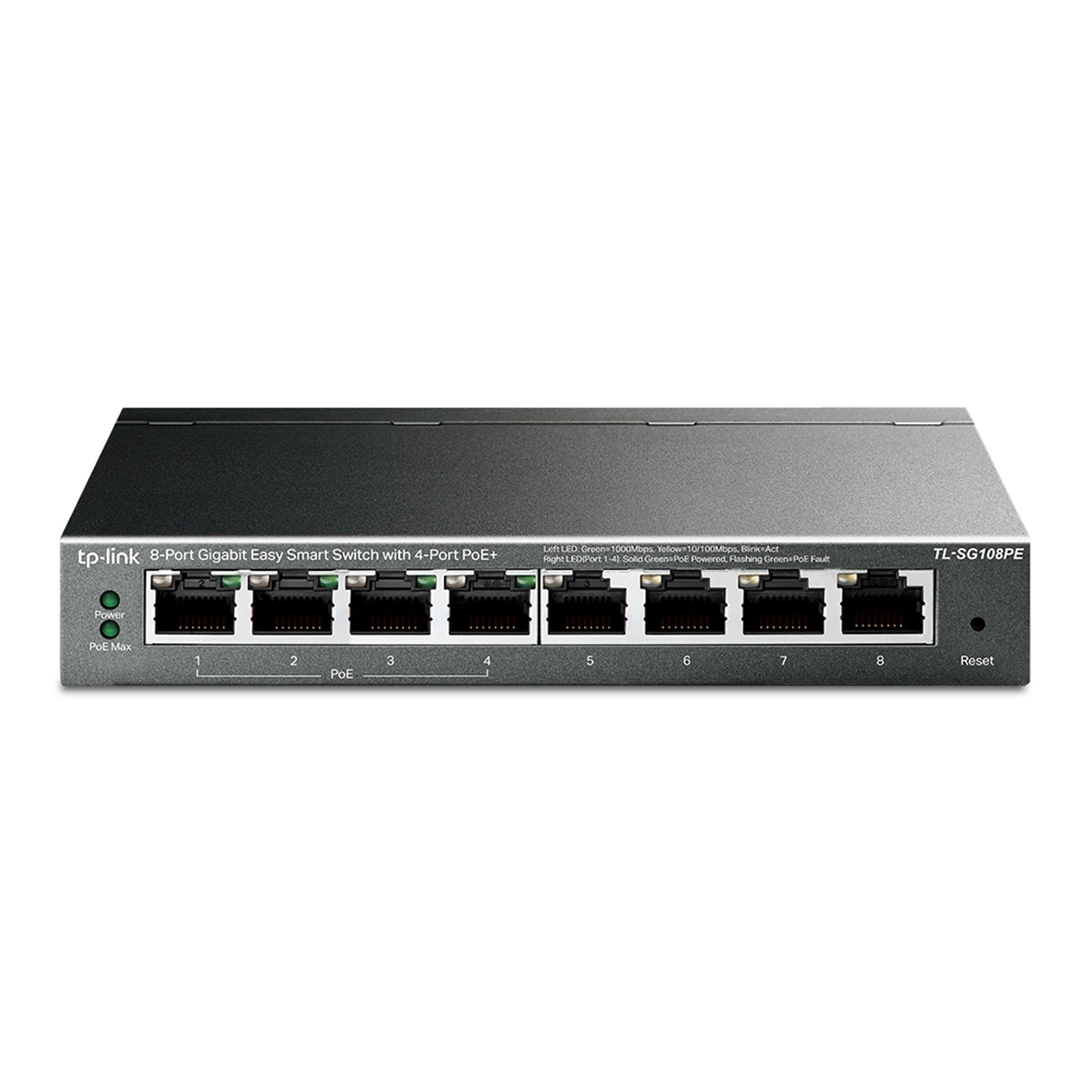

TP-Link TL-SG108PE 8-Port Metal Gigabit Easy Smart Switch with 4-Port PoE+ (64W)
Multiple Application Scenarios: The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV. QoS for a Lag-Free Experience: Ensures smooth traffic for latency sensitive applications, such as voice and video IGMP Snooping for Multicast Optimization: Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery. VLAN for Security: Helps to create network with higher security and better overall performance by dividing network into smaller groups Making Management Easy: TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. System Self-Healing with PoE Auto Recovery: The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart. Great Compatibility with PD Detection: Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. Durable Metal Casing: The interior components of TL-SG108PE are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108PE delivers switching performance you can depend on. Quality of Service: Support Port-Based/802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control L2 Features: IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop PreventionPoE Auto Recovery
Specs
Memory
| MAC Address Table | 4 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
What's Included
| Package Contents | TL-SG108PEPower AdapterInstallation GuideRubber Feet |
Network
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100O STP (maximum 100m) |
| Management | Web-based GUIEasy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
Rear Panel I/O Ports
| PoE Ports (RJ45) | Standard: 802.3 af/at compliantPoE Ports: Port 1- Port 4PoE Power Budget: 64W |
Physical
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
Other
| Dedicated 4 PoE+ Ports (64 W Budget) for Numerous Applications | Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget* for the 4x gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc. |
| Intelligent Power Management to Prevent Power Overload | Automatically cuts lower priority ports power to ensure high-priority ports power supply when the total PoE power consumption exceeds 64 W. This protects the device from power overload operation. |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
| Interface | Eight 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC/1.31 A) |
| Max Power Consumption | 5.41 W (220V/50Hz with no PD connected)74.27 W (220V/50Hz with 64 W PD connected) |
| Max Heat Dissipation | 18.45 BTU/h (with no PD connected)253.26 BTU/h (with 64 W PD connected) |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| Certification | FCC, CE, RoHS |
| System Requirements | Microsoft Windows for running Utility |
