Description

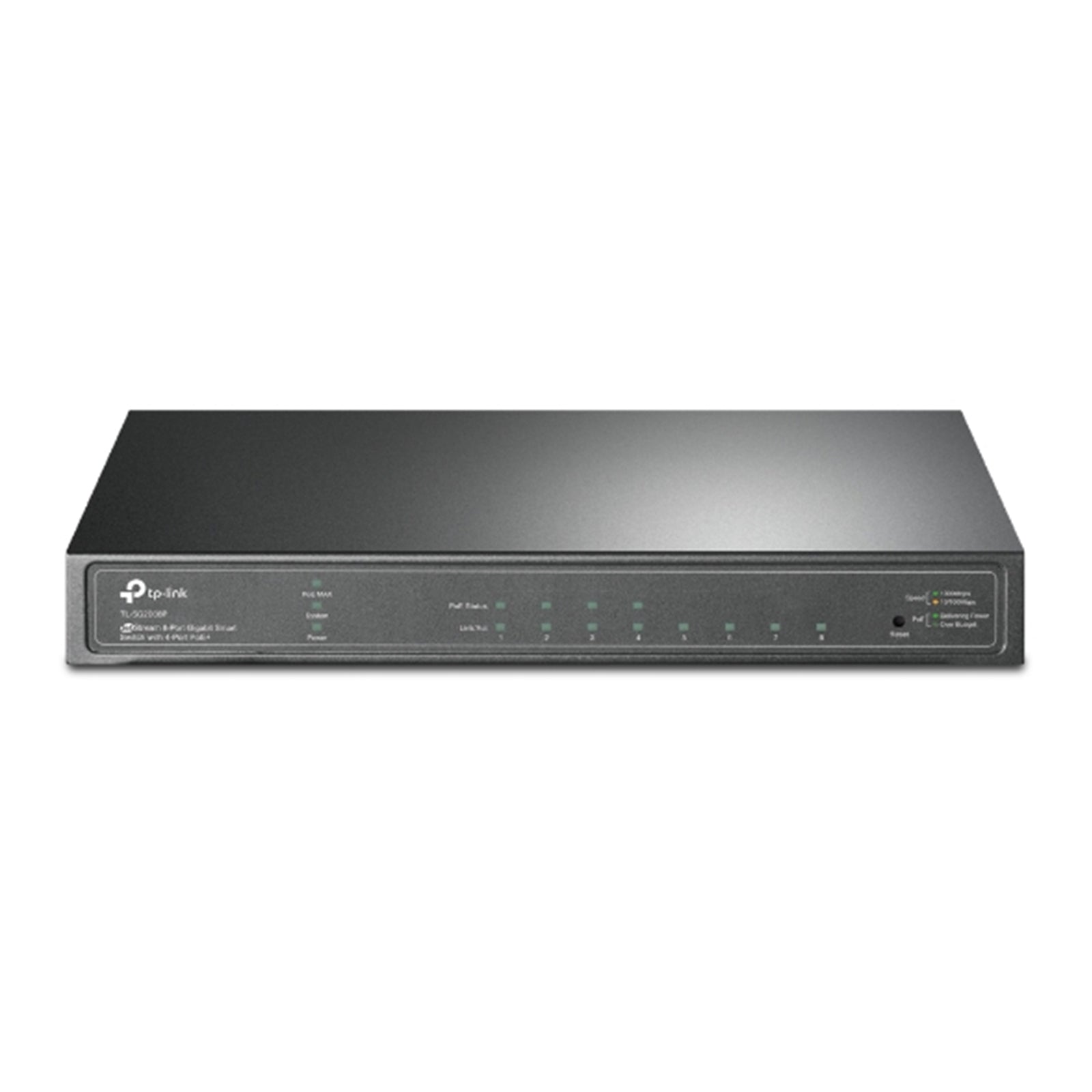

TP-Link JetStream TL-SG2008P 8-Port Metal Gigabit Smart Switch with 4-Port PoE+ (62W)
Multiple Application Scenarios: The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. Access Control List (ACL): ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need. QoS for Lag-Free Experience: Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free. VLAN for Security: Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion. Omada SDNSmarter Cloud Solution for Business Networking: Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability. Hassle-Free Centralized Cloud Management:: 100% centralized cloud management of whole network from different sitesall controlled from a single interface anywhere, anytime. Quality of Service: 802.1p CoS/DSCP priority8 priority queuesPriority Schedule ModeSP (Strict Priority)WRR (Weighted Round Robin)Queue Weight ConfigBandwidth ControlPort/Flow-based Rating LimitSmoother PerformanceStorm ControlMultiple Control Modes(kbps/ratio)Broadcast/Multicast/Unknown-Unicast Control L2 Multicast: 511 IPv4, IPv6 shared multicast groupsIGMP SnoopingIGMP v1/v2/v3 SnoopingFast LeaveIGMP Snooping QuerierStatic Group ConfigMulticast VLAN Registration (MVR)Multicast FilteringMLD SnoopingMLD v1/v2 SnoopingFast LeaveMLD Snooping QuerierStatic Group ConfigLimited IP Multicast (256 profiles and 16 entries per profile) Advanced Features: Automatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot Schedule MIBs: MIB II (RFC1213)Bridge MIB (RFC1493)P/Q-Bridge MIB (RFC2674)Radius Accounting Client MIB (RFC2620)Radius Authentication Client MIB (RFC2618)Remote Ping, Traceroute MIB (RFC2925)Support TP-Link private MIBsRMON MIB(RFC1757, rmon 1,2,3,9) Centralized Management: Omada Cloud-Based ControllerOmada Hardware Controller (OC300)Omada Hardware Controller (OC200)Omada Software Controller Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux. Environment: Operating Temperature: 040 C (32104 F);Storage Temperature: -4070 C (-40158 F)Operating Humidity: 1090% RH non-condensingStorage Humidity: 590% RH non-condensing
Specs
Memory
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
What's Included
| Package Contents | TL-SG2008PPower AdapterInstallation GuideRubber Feet |
Network
| Power over Ethernet for Simplified Network Deployment | Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses. |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Bandwidth/Backplane | 16 Gbps |
| Access Control List | Support up to 230 entriesTime-RangeTime SliceWeek Time-RangeAbsolute Time-RangeHolidayTime-based ACLMAC ACLSource MACDestination MACVLAN IDUser PriorityEther TypeIP ACLSource IPDestination IPIP ProtocolTCP FlagTCP/UDP Source PortTCP/UDP Destination PortDSCP/IP TOSIPv6 ACLCombined ACLRule OperationPermit/DenyPolicy ActionMirrorRate LimitRedirectQoS RemarkACL Rules BindingPort BindingVLAN BindingActions for flowsMirror (to supported interface)Redirect (to supported interface)Rate LimitQoS Remark |
| Security | AAA802.1XPort-based authenticationMAC (Host) based authenticationAuthentication Method includes PAP/EAP-MD5MABGuest VLANSupport Radius authentication andaccountabilityIP/IPv6-MAC Binding512 Binding EntriesDHCP SnoopingDHCPv6 SnoopingARP InspectionND DetectionIP Source Guard253 EntriesSource IP+Source MACIPv6 Source Guard183 EntriesSource IPv6 Address+Source MACDoS DefendStatic/Dynamic/Permanent Port SecurityUp to 64 MAC addresses per portBroadcast/Multicast/Unicast Storm Controlkbps/ratio control modePort IsolationSecure web management through HTTPS withSSLv3/TLS 1.2Secure Command Line Interface (CLI)management with SSHv1/SSHv2IP/Port/MAC-based access control |
Rear Panel I/O Ports
| PoE Ports (RJ45) | Standard: 802.3af/at compliantPoE Ports: 4 PortsPower Supply: 62 W* |
Physical
| Dimensions ( W x D x H ) | 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
Other
| Smarter Switching for Smarter Results | JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+ |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | 8 x 10/100/1000 Mbps RJ45 Ports (Ports 14 Support 802.3at/af PoE+)Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC/ 1.31 A) |
| Power Consumption | 7.9 W (220 V/50 Hz) (no PD connected)79.2 W (220 V/50 Hz) (with 62 W PD connected) |
| Max Power Consumption | V1: 69.7 W (220 V/50 Hz) (with 62 W PD connected); 7.9 W (220 V/50 Hz) (no PD connected)V2: 73.8 W (220 V/50 Hz) (with 62 W PD connected)V3: 77.3 W (110 V/60 Hz) (with 62 W PD connected) |
| Max Heat Dissipation | V1: 237.82 BTU/hr (220 V/50 Hz) (with 62 W PD connected); 26.95 BTU/hr (220 V/50 Hz) (no PD connected)V2: 251.84 BTU/hr (220 V/50 Hz) (with 62 W PD connected)V3: 263.6 BTU/hr (110 V/60 Hz) (with 62 W PD connected) |
| L2 and L2+ Features | DHCP RelayDHCP VLAN RelayDHCP L2 RelayLink AggregationStatic link aggregation802.3ad LACPUp to 8 aggregation groups and up to 8 ports per groupSpanning Tree Protocol802.1D STP802.1w RSTP802.1s MSTP STP Security: TC Protect, BPDU Filter/Protect,Root ProtectLoopback DetectionFlow Control802.3x Flow ControlMirroringPort MirroringCPU MirroringOne-to-OneMany-to-OneFlow-BasedIngress/Egress/BothDevice Link Detect Protocol (DLDP)802.1ab LLDP/ LLDP-MED |
| IPv6 Support | IPv6 Dual IPv4/IPv6Multicast Listener Discovery (MLD) SnoopingIPv6 neighbor discovery (ND)Path maximum transmission unit (MTU) discoveryInternet Control Message Protocol (ICMP)version 6TCPv6/UDPv6IPv6 applicationsDHCPv6 ClientPing6Tracert6Telnet (v6)IPv6 SNMPIPv6 SSHIPv6 SSLHttp/HttpsIPv6 TFTP |
| Omada App | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2008P v1, v3 and above, while is not supported by TL-SG2008P v2) |
| Management Features | Web-based GUICommand Line Interface (CLI) through telnetSNMPv1/v2c/v3SNMP Trap/InformRMON (1,2,3,9 groups)SDM TemplateDHCP/BOOTP ClientDual Image, Dual ConfigurationCPU MonitoringCable DiagnosticsEEESNTPSystem Log |
| Certification | CE, FCC, RoHS |
