Description

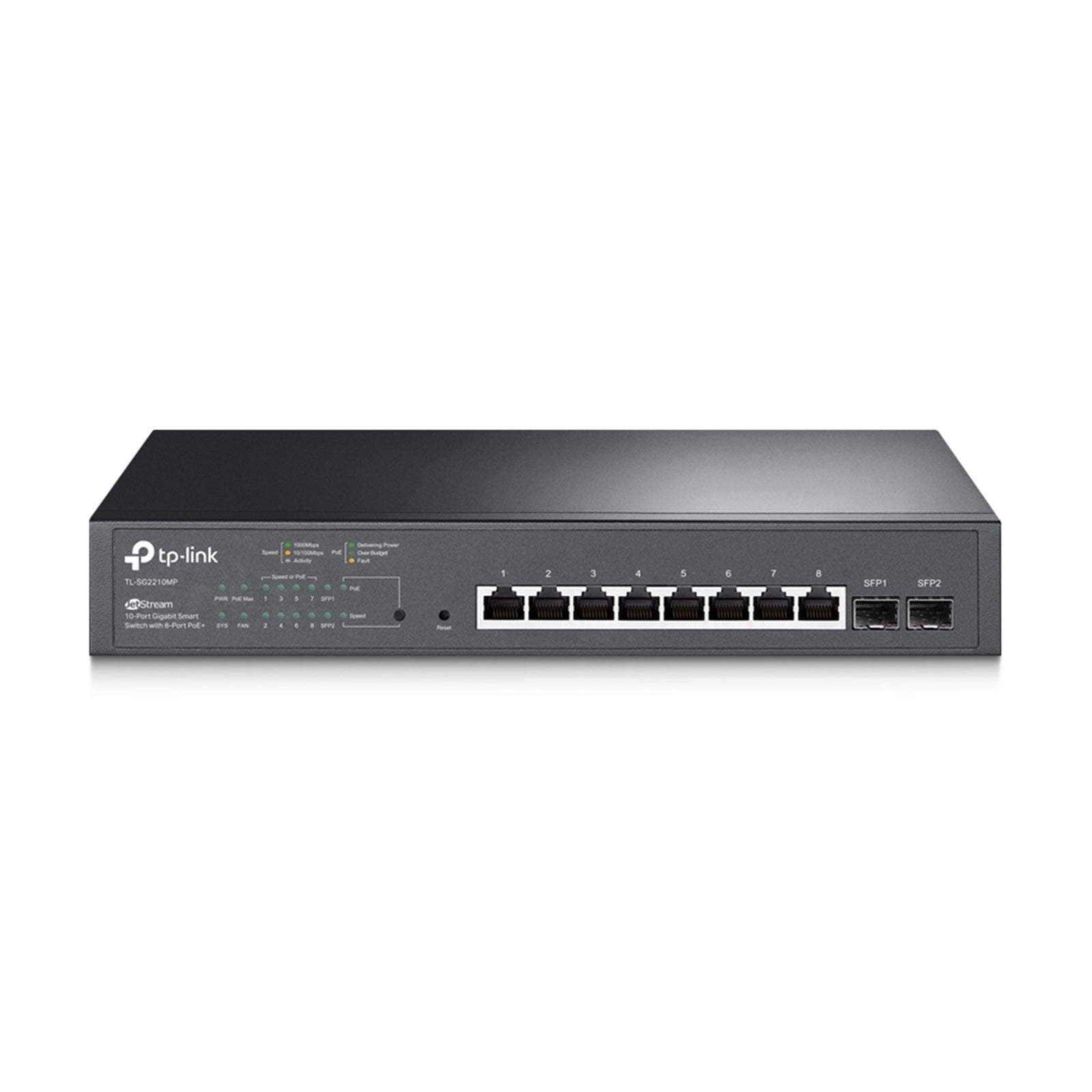

TP-Link JetStream TL-SG2210MP 10-Port Metal Gigabit Smart PoE Switch with 8-Port PoE+ (150W)
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10, MAC OS, NetWare, UNIX or Linux. Environment: Operating Temperature: 050 C (32122 F);Storage Temperature: -4070 C (-40158 F)Operating Humidity: 1090% RH non-condensingStorage Humidity: 590% RH non-condensing
Specs
Memory
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
What's Included
| Package Contents | TL-SG2210MPPower CordInstallation GuideRackmount KitRubber Feet |
Network
| Full Gigabit Ports | 8x gigabit PoE+ ports and 2x gigabit SFP Slots provide high-speed connections. |
| Network Media | 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)100BASE-FX: MMF, SMF1000BASE-X: MMF, SMF |
Rear Panel I/O Ports
| PoE+ Ports(RJ45) | Standard: 802.3at/af compliantPoE+ Ports: 8 PortsPower Supply: 150 W |
| PoE Ports (RJ45) | Standard: 802.3at/af compliantPoE+ Ports: 8 PortsPoE Power Budget: 150 W |
Physical
| Dimensions ( W x D x H ) | 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) |
Other
| 150 W PoE Budget | 8x 802.3at/af-compliant PoE+ ports with a total power supply of 150 W. |
| Robust Security Strategies | IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more. |
| Optimize Voice and Video Applications | L2/L3/L4 QoS and IGMP snooping. |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface | 8x 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)2x 100/1000 Mbps SFP Slots |
| Fan Quantity | 1 |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60Hz |
| Mounting | Rack Mountable |
| Max Power Consumption | 12.2 W (110 V / 60 Hz with no PD connected)173.9 W (110 V / 60 Hz with 150 W PD connected) |
| Max Heat Dissipation | 41.63 BTU/h (with no PD connected)539.35 BTU/h (with 150 W PD connected) |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.9 Mpps |
| Certification | CE, FCC, RoHS |
