Description

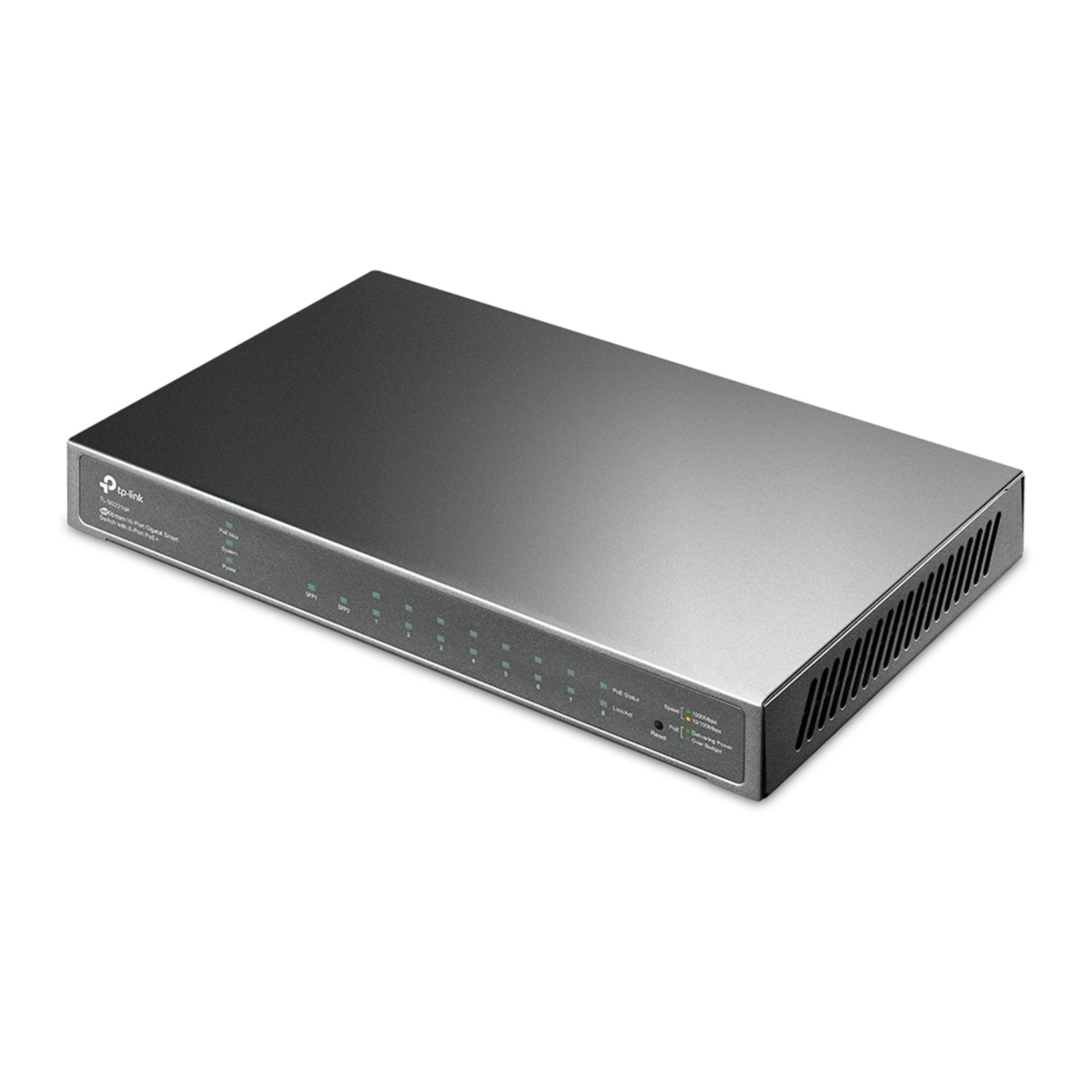

TP-Link JetStream TL-SG2210P 10-Port Metal Gigabit Smart Switch with 8-Port PoE+ (61W)
Software Defined Networking (SDN) with Cloud Access: Omadas Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable networkall controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Quality of Service: 802.1p CoS/DSCP priority8 priority queuesPriority Schedule ModeSP (Strict Priority)WRR (Weighted Round Robin)Queue Weight ConfigBandwidth ControlPort/Flow based Rating LimitSmoother PerformanceStorm ControlMultiple Control Modes(kbps/ratio)Broadcast/Multicast/Unknown-Unicast Control Advanced Features: Automatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot Schedule MIBs: MIB II (RFC1213)Bridge MIB (RFC1493)P/Q-Bridge MIB (RFC2674)Radius Accounting Client MIB (RFC2620)Radius Authentication Client MIB (RFC2618)Remote Ping, Traceroute MIB (RFC2925)Support TP-Link private MIBsRMON MIB(RFC1757, rmon 1,2,3,9) Centralized Management: Omada Hardware Controller (OC300)Omada Hardware Controller (OC200)Omada Software Controller System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.
Specs
Memory
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
What's Included
| Package Contents | TL-SG2210PPower AdapterInstallation GuideRubber Feet |
Network
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)1000BASE-X: MMF, SMF |
| Bandwidth/Backplane | 20 Gbps |
| Access Control List | Support up to 230 entriesTime-RangeTime SliceWeek Time-RangeAbsolute Time-RangeHolidayTime-based ACLMAC ACLSource MACDestination MACVLAN IDUser PriorityEther TypeIP ACLSource IPDestination IPIP ProtocolTCP FlagTCP/UDP Source PortTCP/UDP Destination PortDSCP/IP TOSIPv6 ACLCombined ACLRule OperationPermit/DenyPolicy ActionMirrorRate LimitRedirectQoS RemarkACL Rules BindingPort BindingVLAN BindingActions for flowsMirror (to supported interface)Redirect (to supported interface)Rate LimitQoS Remark |
| Security | AAA802.1XPort based authenticationMAC (Host) based authenticationAuthentication Method includes PAP/EAP-MD5MABGuest VLANSupport Radius authentication and accountabilityIP/IPv6-MAC Binding512 Binding EntriesDHCP SnoopingDHCPv6 SnoopingARP InspectionND DetectionIP Source Guard253 EntriesSource IP+Source MACIPv6 Source Guard183 EntriesSource IPv6 Address+Source MACDoS DefendStatic/Dynamic/Permanent Port SecurityUp to 64 MAC addresses per portBroadcast/Multicast/Unicast Storm Control kbps/ratio control modePort IsolationSecure web management through HTTPS with Lv3/TLS 1.2Secure Command Line Interface (CLI) management with SSHv1/SSHv2IP/Port/MAC based access control |
| IPv6 | IPv6 Static Routing and ACLIPv6 Dual IPv4/IPv6IPv6 InterfaceMulticast Listener Discovery (MLD) SnoopingIPv6 neighbor discovery (ND)Path maximum transmission unit (MTU) discoveryInternet Control Message Protocol (ICMP) version 6TCPv6/UDPv6IPv6 applicationsDHCPv6 ClientPing6Tracert6Telnet(v6)IPv6 SNMPIPv6 SSHIPv6 SSLHttp/HttpsIPv6 TFTP |
Rear Panel I/O Ports
| PoE Ports (RJ45) | Standard: 802.3af/at compliantPoE Ports: 8 PortsPower Supply: 61 W |
Physical
| Dimensions ( W x D x H ) | 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
Other
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | 8 10/100/1000Mbps RJ45 Ports2 1000Mbps SFP Slots(Auto-Negotiation/Auto MDI/MDIX) |
| Fan Quantity | Fanless |
| Power Supply | 100~240VAC, 50/60HzExternal Power Adapter(Output: 53.5VDC/1.31A) |
| Power Supply | 10.3 W (220 V/50 Hz) (no PD connected)76.5 W (220 V/50 Hz) (with 61 W PD connected) |
| Mounting | Desktop/Wall Mounting |
| Max Power Consumption | V3.2: 76.5 W (220 V/50 Hz) (with 61 W PD connected); 10.3 W (220 V/50 Hz) (no PD connected) |
| Max Heat Dissipation | V3.2: 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected); 35.14 BTU/hr (220 V/50 Hz) (no PD connected) |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| L2 and L2+ Features | 16 IP InterfacesSupport IPv4/IPv6 InterfaceStatic Routing32 IPv4/IPv6 Static RoutesDHCP ServerDHCP RelayDHCP Interface RelayDHCP VLAN RelayDHCP L2 RelayStatic ARPProxy ARPGratuitous ARPLink AggregationStatic link aggregation802.3ad LACPUp to 8 aggregation groups and up to 8 ports per groupSpanning Tree Protocol802.1D STP802.1w RSTP802.1s MSTPSTP Security: TC Protect, BPDU Filter/Protect,Root ProtectLoopback DetectionFlow Control802.3x Flow ControlMirroringPort MirroringCPU MirroringOne-to-OneMany-to-OneFlow-BasedIngress/Egress/BothDevice Link Detect Protocol (DLDP)802.1ab LLDP/ LLDP-MED |
| Omada App | Yes |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4) |
| Management Features | Web-based GUICommand Line Interface (CLI) through telnetSNMPv1/v2c/v3SNMP Trap/InformRMON (1,2,3,9 groups)SDM TemplateDHCP/BOOTP ClientDual Image, Dual ConfigurationCPU MonitoringCable DiagnosticsEEESNTPSystem Log |
| Certification | CE, FCC, RoHS |
