Description

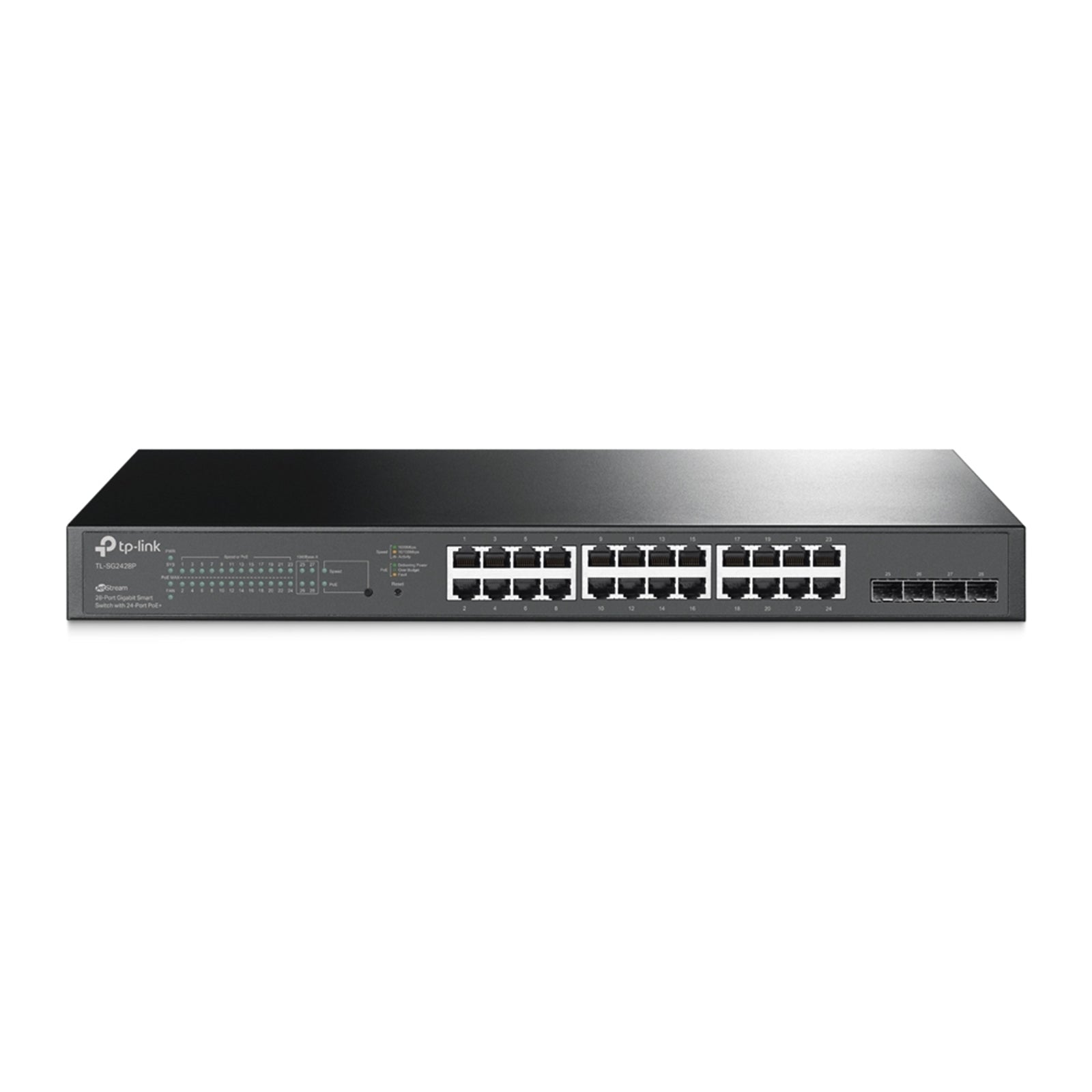

TP-Link JetStream TL-SG2428P 28-Port Metal Gigabit Smart PoE Switch with 24-Port PoE+ (250W)
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. Static Routing: Helps route internal traffic for more efficient use of network resources. IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery. Package Contents: TL-SG2428PPower CordInstallation GuideRackmount KitRubber Feet System Requirements: Microsoft Windows XP, Vista or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux. Environment: Operating Temperature: 050 C (32122 F);Storage Temperature: -4070 C (-40158 F)Operating Humidity: 1090% RH non-condensingStorage Humidity: 590% RH non-condensing
Specs
Memory
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9KB |
Network
| Full Gigabit Ports | 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections. |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)1000BASE-X: MMF, SMF |
| Bandwidth/Backplane | 56 Gbps |
Rear Panel I/O Ports
| PoE+ Ports(RJ45) | Standard: 802.3at/af compliantPoE+ Ports: 24 PortsPower Supply: 250 W |
Physical
| Dimensions ( W x D x H ) | 17.3 x 8.7 x 1.73 in (440 x 220 x 44 mm) |
Other
| 250 W PoE Budget | 24x 802.3at/af-compliant PoE+ ports with a total power supply of 250 W |
| Robust Security Strategies | IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. |
| Optimize Voice and Video Applications | L2/L3/L4 QoS and IGMP snooping. |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | 24 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)4 x Gigabit SFP Slots |
| Fan Quantity | 2 |
| Power Supply | 100-240V AC, 50/60Hz |
| Mounting | Rack Mountable |
| Max Power Consumption | 32.1 W (110 V/ 60 Hz with no PD connected)308.6 W (110 V/ 60 Hz with 250 W PD connected) |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.7 Mpps |
| Certification | CE, FCC, RoHS |
