Description

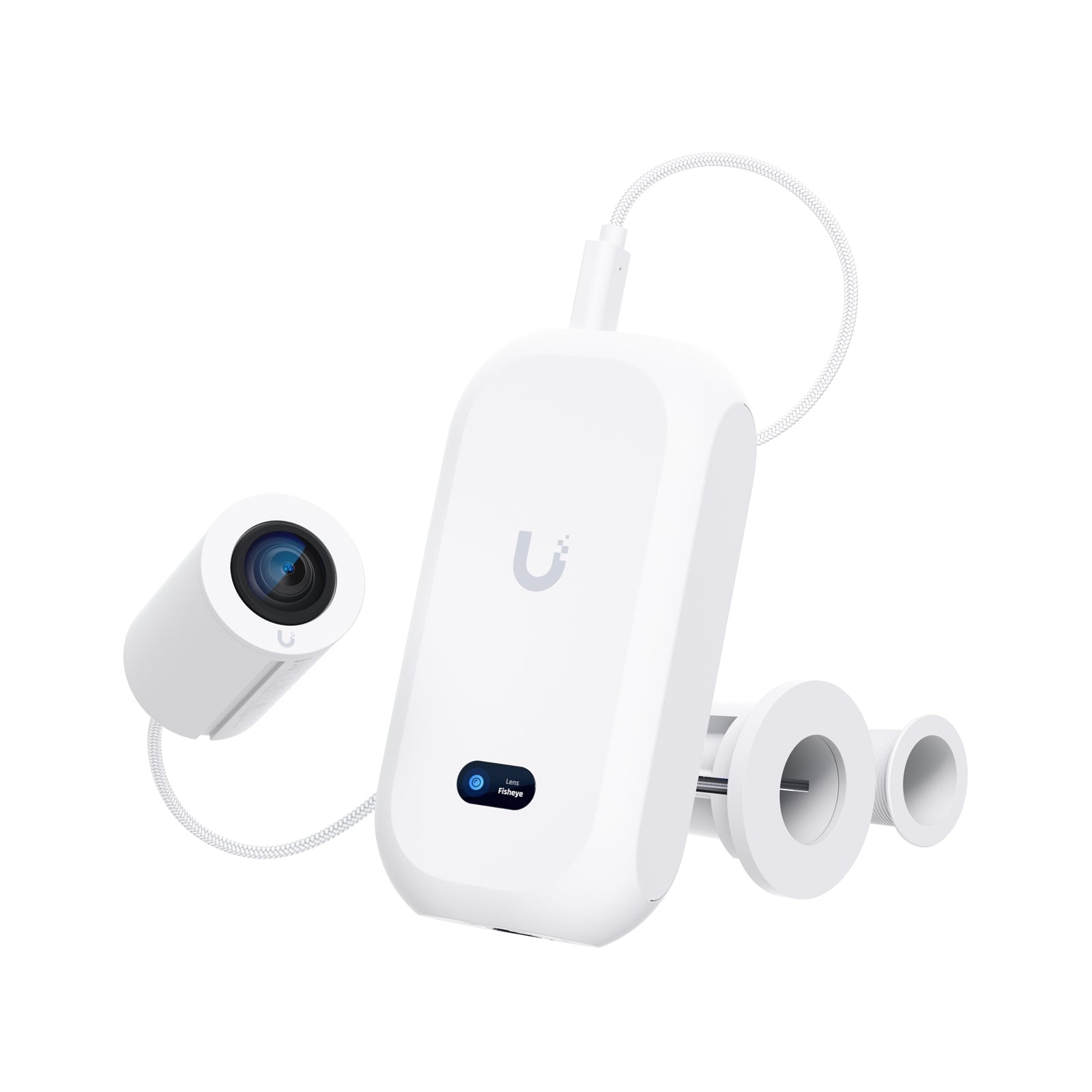

Ubiquiti UVC-AI-Theta-Pro Camera AI Theta Pro Ceiling Mount 360 Degree Camera
A complete ceiling 360 degree AI Theta system designed to discreetly provide a panoramic view of large, busy spaces. Enclosure Material: UVC-AI-Theta-Hub: aluminum alloyUVC-AI-Theta-ProLens360: aluminum alloy, polycarbonate Mount Material: UVC-AI-Theta-Hub: aluminum alloyUVC-AI-Theta-ProLens360 Flush Mount: polycarbonate Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Specs
Physical
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz)UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)UVC-AI-Theta-ProLens360: 58 g (2 oz)UVC-AI-Theta-ProLens360 Flush Mount: 24 g (0.8 oz) |
| Cable Jacket Enclosure Dimensions | 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3") |
| Cable Jacket Enclosure Material | PVC |
| Cable Length | 1m |
| Cable Diameter | 3.7mm |
| Cable Jacket Material | Woven Fabric |
| Cable Weight | 18g |
| Cable Connector Type | Theta Proprietary |
| Sensor | 8MP 1/1.8" CMOS |
| Lens | Fixed Focal Length |
| Viewing Angle | H: 180°, V: 180°, D: 180° |
| Resolution | 4MP 2160 x 2160 (1:1) |
| Max. Frame Rate | 24 FPS |
| Power Supply | 5V DC, 0.5A |
| Processor | Quad-core Arm Cortex-A53 based chip |
| Networking Interface | GbE RJ45 port |
| Max. Power Consumption | 12.5W |
| Power Method | PoE |
| Supported Voltage Range | 37—57V DC |
| Output Power | 5V DC, 1A per port |
| Display | 0.96" color display |
| Button | Factory Reset |
| Mounting | Wall/Ceiling Mount |
| Certifications | FCC, IC, CE |
