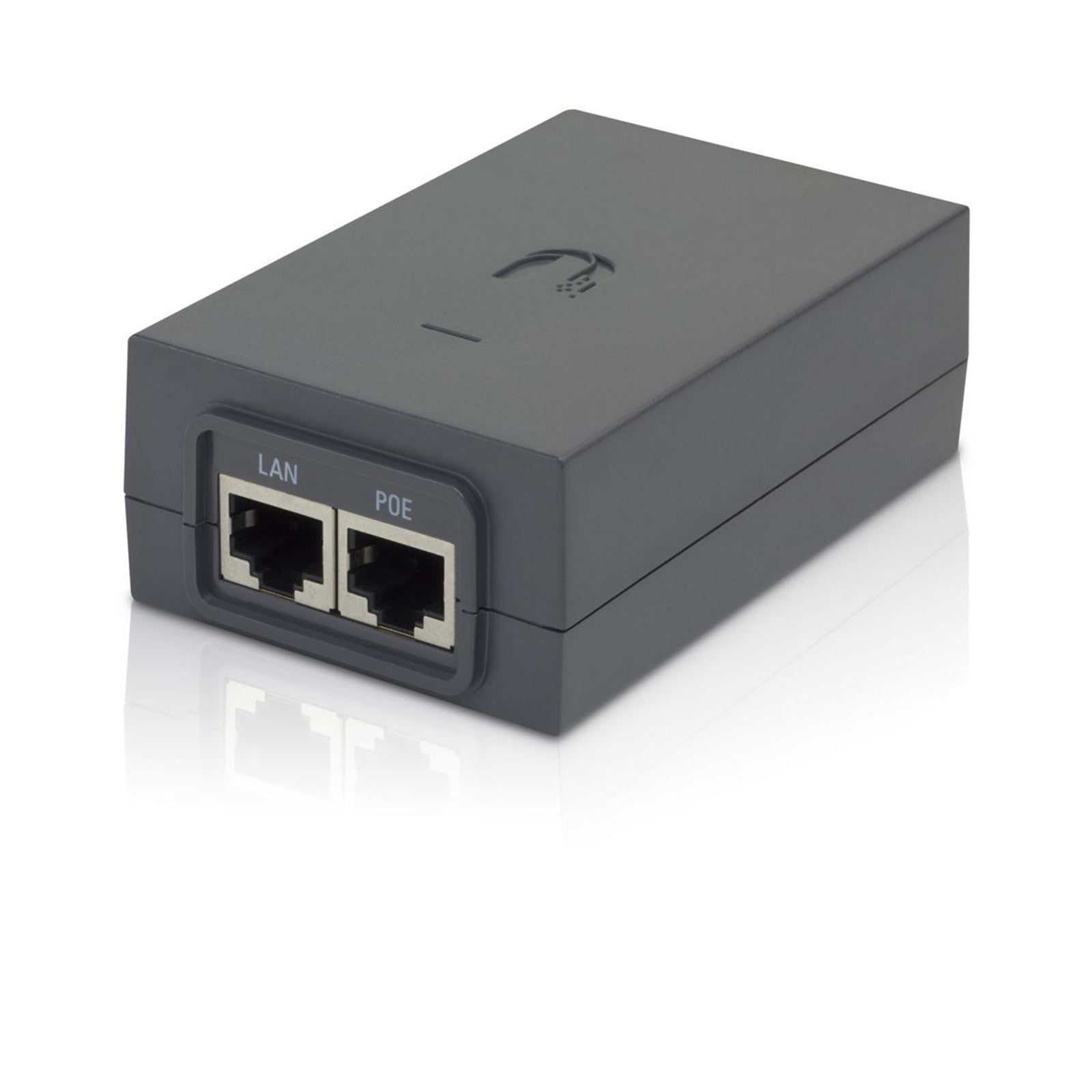

Ubiquiti POE-48-24W-G PoE Gigabit Injector

Ubiquiti POE-48-24W-G PoE Gigabit Injector

SKU:POE-48-24W-G

Regular price £21.46 GBP
Regular price Sale price £21.46 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
View full details

Description

Ubiquiti POE-48-24W-G PoE Gigabit Injector

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:- airFiber- airMAX- EdgeMAX- mFi- UniFi AP- UniFi Video / airVision*Check product specifications to verify PoE compatibility. Ubiquiti PoE Adapter Compatibility with the airGatewaySpecific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscribers local network to the WISP network.The airGateway is available in three models:- airGateway Standard model with an internal antenna- airGateway Pro Dual-Band Wi-Fi model with an internal antenna- airGateway-LR Long-range Wi-Fi model with an external antenna for extended range Compliance: IEC 60950-1:2005+A1UL60950-1EN55022:2010, EN55024:2010FCC Class B

Specs

Storage Controllers

Storage Temperature -30 to 70�C (-22 to 158� F)

Network

LAN Activity Indicator No
Gigabit LAN Port Yes

Physical

Dimensions ( W x H x D ) 96 x 62 x 35 mm

Other

Output Voltage 48VDC @ 0.5A
Remote Reset Capability No
Reset Button No
Input Voltage 90-260VAC @ 47-63 Hz
Input Current 0.6A @ 120VAC,0.4A @ 240VAC
Inrush Current <65A Peak @ 120VAC,<130A Peak @ 230VAC
Efficiency 80+%
Output Ripple 1% Max.
Switching Frequency 65 kHz
Line Regulation � 1%
Load Regulation � 3%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature 0 to 40� C (32 to 104� F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20) Power
Peak Pulse Current 36A (10/1000 ) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
