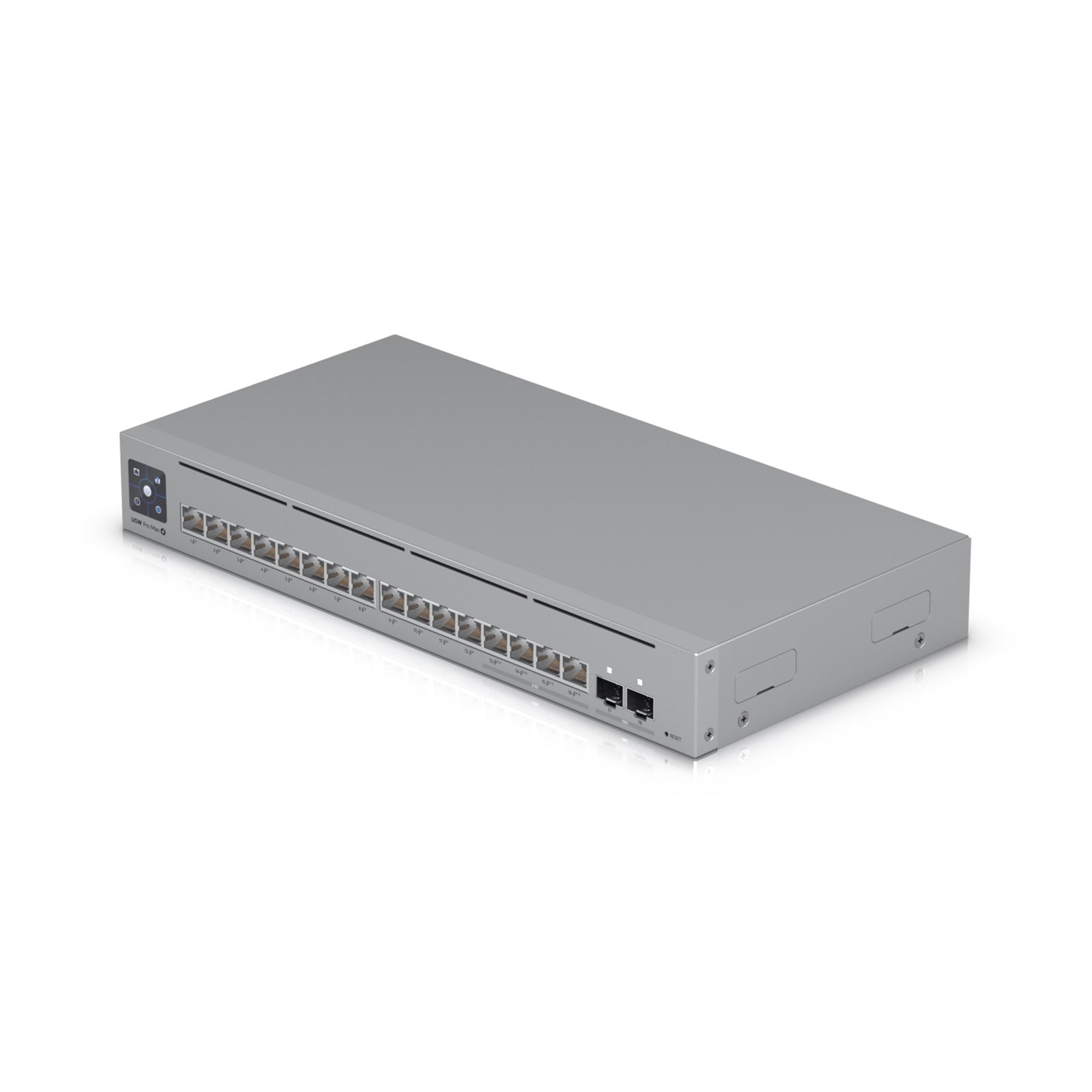

Ubiquiti USW-PRO-MAX-16-POE UniFi Pro Max 16 Port Gigabit Layer 3 Managed POE Switch
A 16-port, Layer 3 Etherlighting switch with 2.5 GbE, PoE++ output, and versatile mounting options. Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network. (4) 2.5 GbE PoE++ ports(12) GbE PoE+ ports(2) 10G SFP+ ports180W total PoE availabilityVersatile desktop, wall, and rack mounting (with optional rack mount kit)Silent, fanless cooling system Layer 3 Features: DHCP for locally-managed networksDHCP relayInter-VLAN routing between networks on same switchStatic routing between local networksNetwork isolation with ACLs
Specs
Physical
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
| Management Interface | Ethernet In-Band |
| Networking Interface | (12) GbE RJ45 ports(4) 1/2.5 GbE RJ45 ports(2) 10G SFP+ ports |
| POE Interface | (12) PoE/PoE+ (Pins 1, 2+; 3, 6-)(4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total Non-Blocking Throughput | 42 Gbps |
| Switching Capacity | 84 Gbps |
| Forwarding Rate | 62.496 Mpps |
| Power Method | DC adapter |
| Power Supply | 54V, 210W |
| Max Power Consumption | 30W (Excluding PoE output) |
| Total Available POE | 180W |
| Max POE Wattage per Port by PSE | PoE: 15.4WPoE+: 30WPoE++: 60W |
| Voltage Range POE Mode | PoE: 44—57VPoE+/PoE++: 50—57V |
| LCM Display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Layer 2 Features | IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limitLLDP-MEDPort restricted by MACDevice isolation with ACLs |
