Description

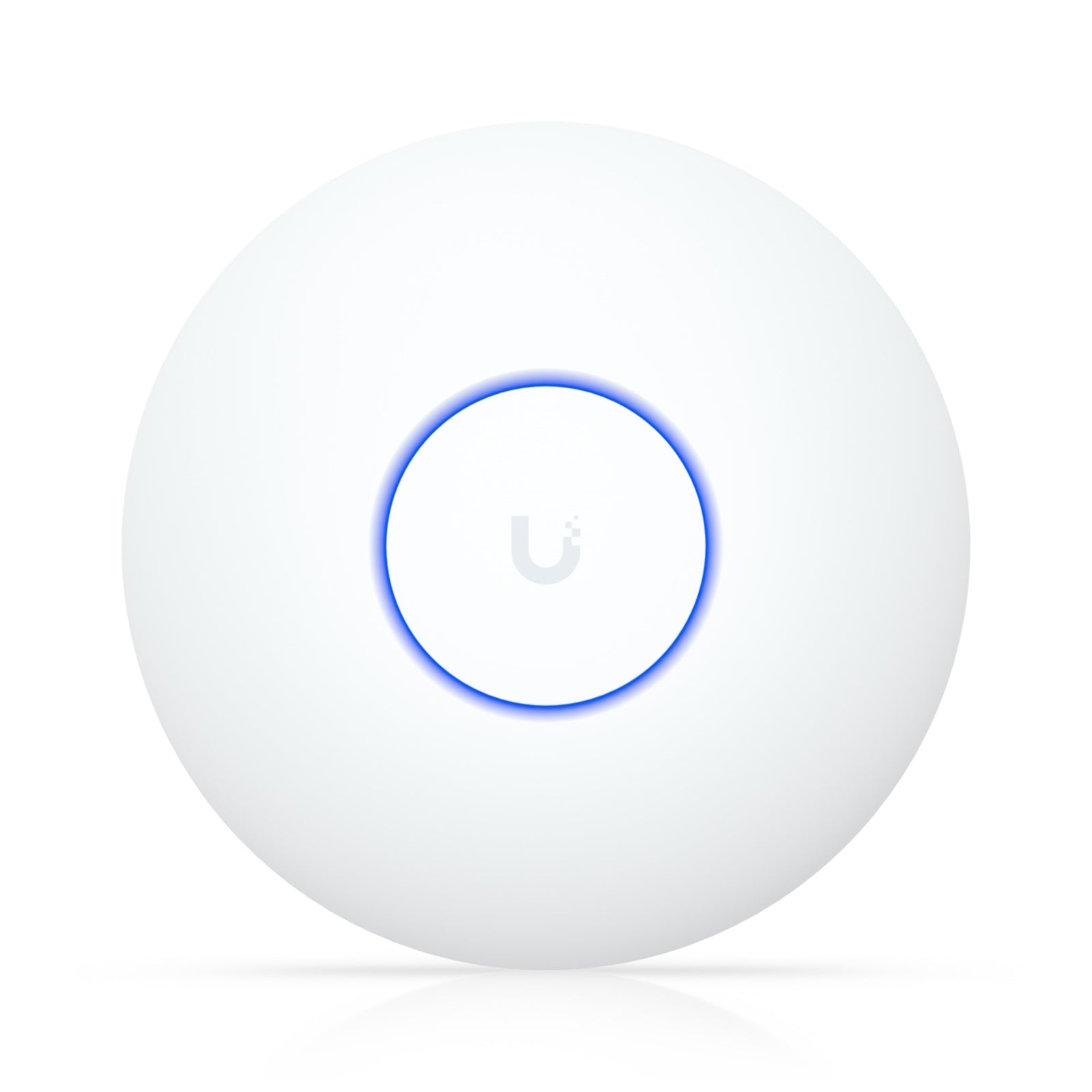

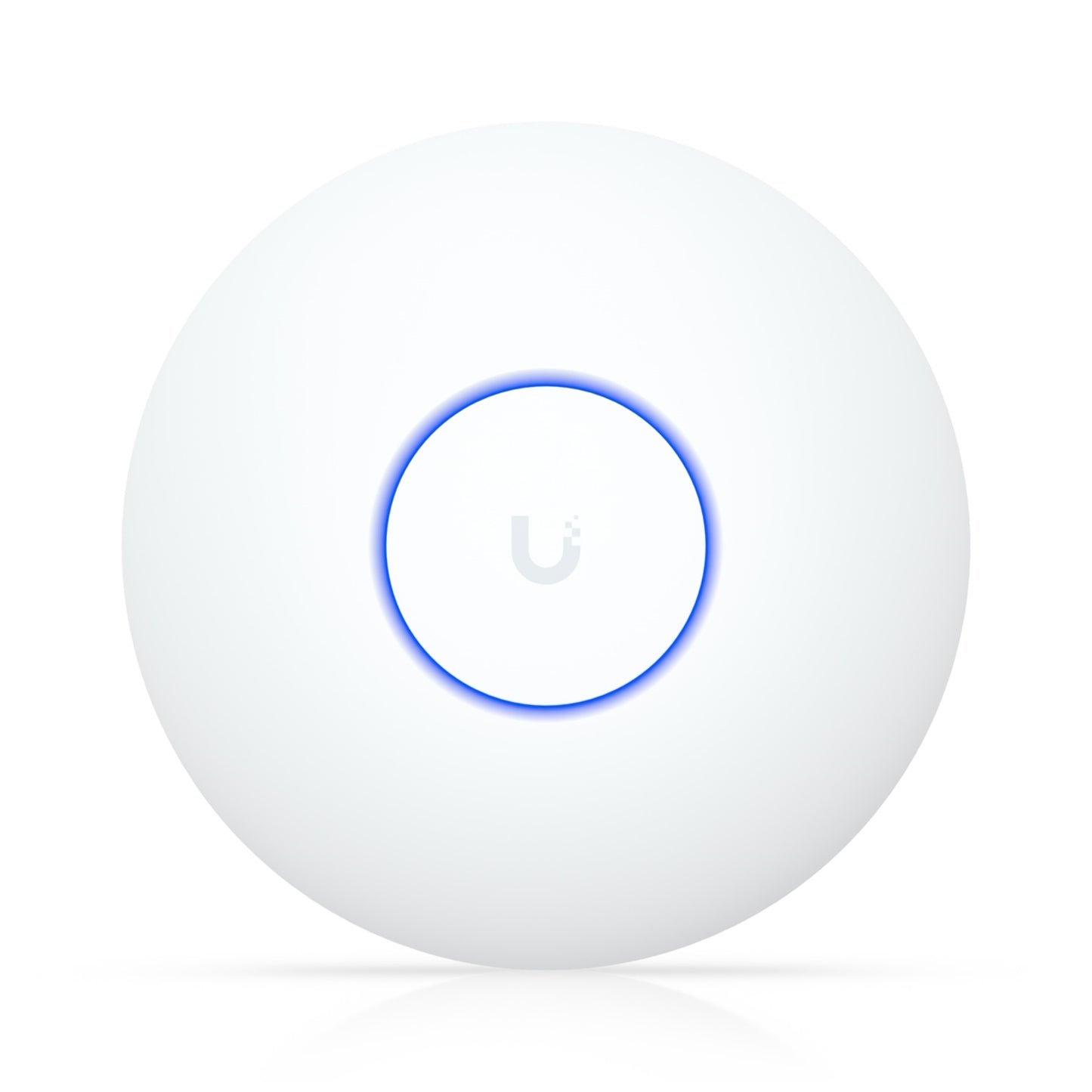

Ubiquiti U7-LITE UniFi 7 Lite Ceiling Mounted WiFi 7 Access Point
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink. 2.4 GHz2 x 2 (DL/UL MU-MIMO) 2.4 GHz688 Mbps (BW40) 2.4 GHz4 dBi 2.4 GHz23 dBm 802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5)6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Specs
What's Included
| Antenna Gain | 5 GHz5 dBi |
Network
| Wireless Meshing | Yes |
| WiFi Speed Limiting | Yes |
| WiFi Schedules | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Networking Interface | (1) 2.5 GbE RJ45 port |
Physical
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m2 (1,250 ft2) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall(Lite Mount Included) |
| Power Method | POE |
| Weight | 313 g (11 oz) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
Other
| Max. Data Rate | 5 GHz4.3 Gbps (BW240) |
| Max. TX Power | 5 GHz24 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| Client Device Isolation | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5—57V DC |
| Management | Ethernet |
| LEDs | System |
| Certifications | CE, FCC, IC |
