Description

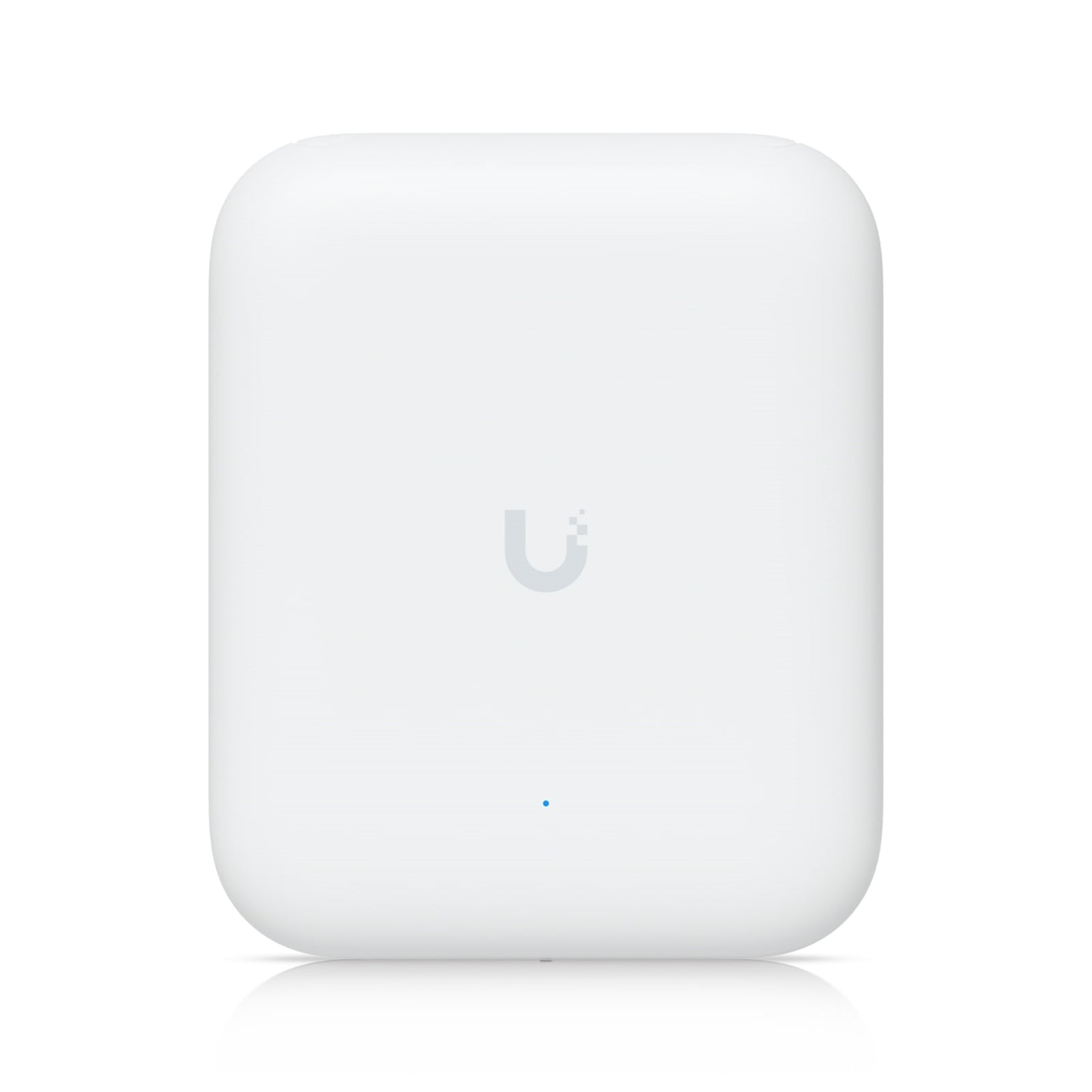

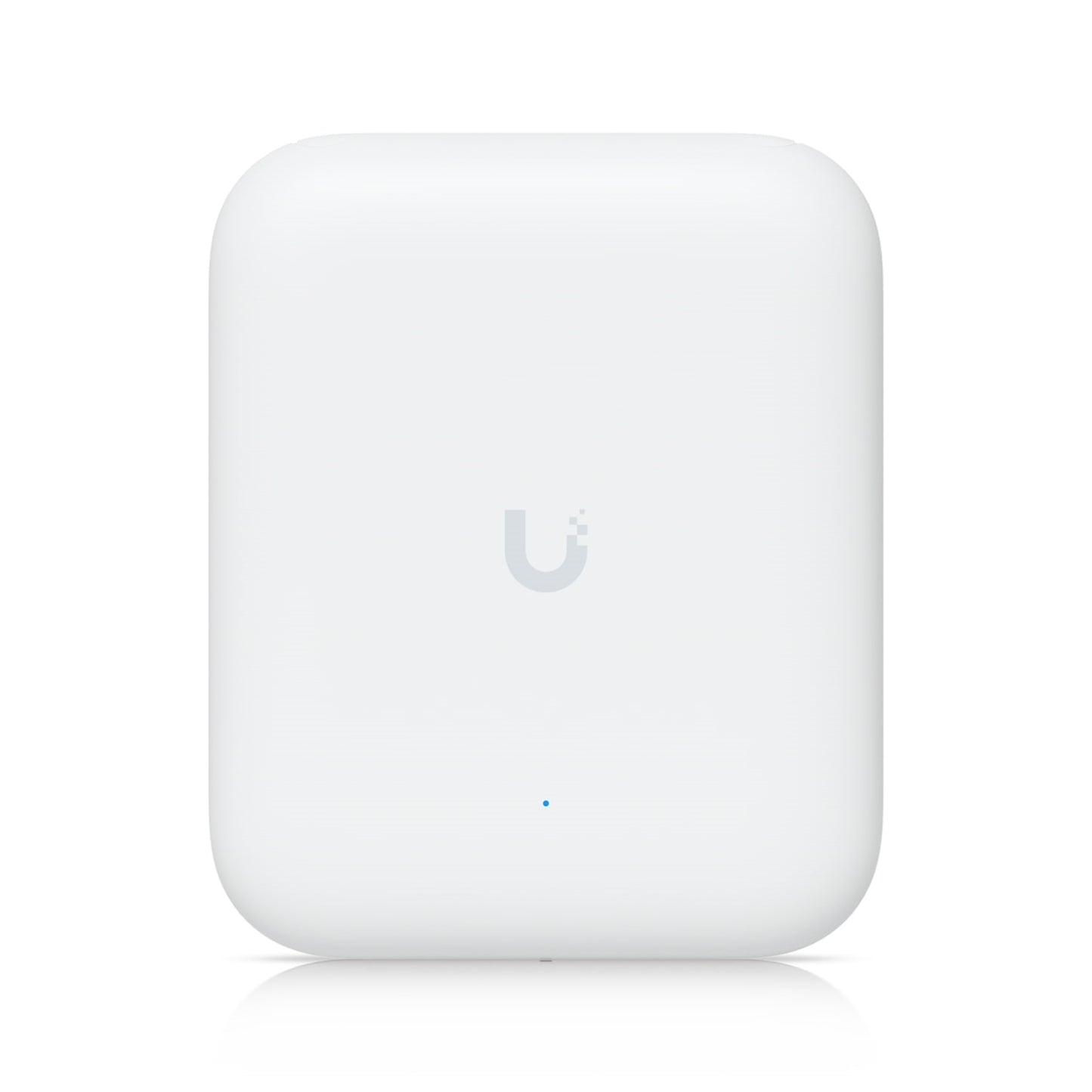

Ubiquiti U7-OUTDOOR UniFi U7 Outdoor WiFi 7 All Weather Access Point
Introducing the Ubiquiti UniFi U7-Outdoor, the ultimate solution for reliable outdoor WiFi 7 connectivity. Designed to withstand the elements, this access point features a durable, weather-resistant enclosure and delivers tri-band performance across the 2.4 GHz, 5 GHz, and 6 GHz bands. The UniFi U7-Outdoor ensures seamless, high-speed connectivity in outdoor environments. Advanced technologies like OFDMA and MU-MIMO enhance network efficiency, making it ideal for campuses, parks, and large outdoor events. Easy to install and manage, the U7-Outdoor is the perfect choice for extending your network outdoors. Antennas: (1) Directional internal antenna(2) External omni antennas(2) RP-SMA connectors for external antenna
Specs
What's Included
| Antenna Gain | 2.4 GHz - Directional internal: 8 dBi / External omni: 3 dBi5 GHz - Directional internal: 12.5 dBi / External omni: 4 dBi6 GHz - No |
| Antenna Beamwidth | 2.4 GHz - 90 degrees5 GHz - 45 degrees6 GHz - No |
Network
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| WiFi Standards | 802.11a/b/g/n/ac/ax/be |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 200+ |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
Physical
| Weight | 1.2 kg (2.6 lb) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, SGCC steel |
| Pole Mount Diameter | 25–60 mm (1–2.36") on pipe outer diameter |
| Wind Survivability | #74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
Other
| Management Interface | Ethernet |
| Power method | PoE+ |
| Power Supply | UniFi PoE Switch |
| Supported Voltage Range | 42.5—57V DC |
| Max. Power Consumption | 19W |
| Max. TX Power | 2.4 GHz - 23 dBm5 GHz - 26 dBm6 GHz - No |
| Throughput Rate | 2.4 GHz - 688 Mbps5 GHz - 4324 Mbps |
| LEDs | (1) Power: white/blue(4) Mesh signal: blue |
| Button | Factory reset |
| Mounting | Wall, ceiling, pole (Included) |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Box Contents | 1 x U7-Pro-Wall2 x External antennas1 x Wall plate template level1 x Wall plate mount1 x Multipurpose mount2 x Jubilee clipsAll mounting hardware |
