Description

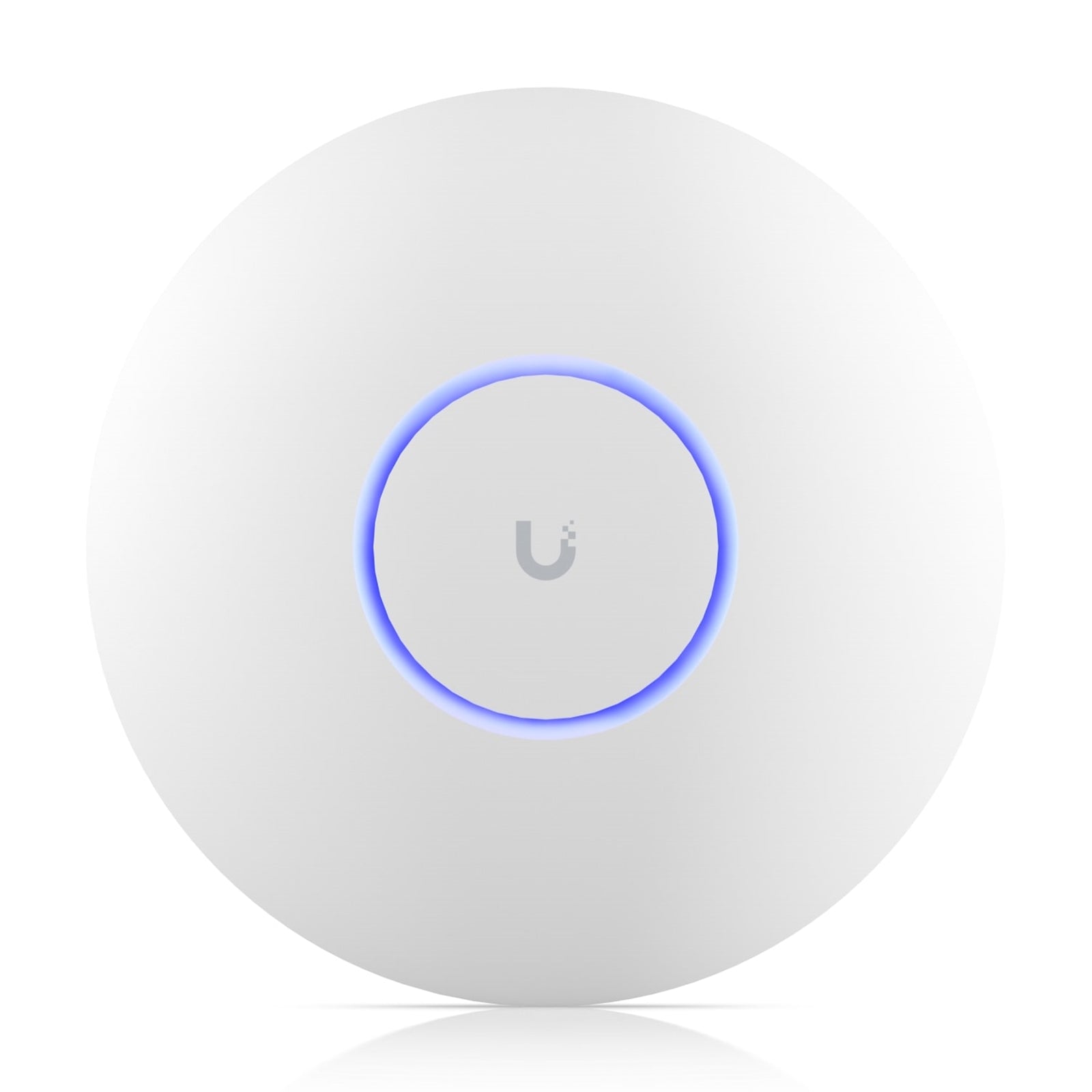

Ubiquiti U7-PRO-MAX U7 Pro Max WiFi 7 Ceiling Mounted Access Point with 2.5GbE Uplink
Introducing the Ubiquiti UniFi U7-Pro-Max, the pinnacle of WiFi 7 performance. This advanced access point supports tri-band operation, enhancing network capacity and speed with up to 15 Gbps aggregate throughput. UniFi U7 Pro Max is ideal for high-density environments, leveraging OFDMA and MU-MIMO technologies to manage network traffic efficiently. The U7-Pro-Max features advanced security protocols, and a sleek design for easy installation. Whether for enterprise, campus, or public venue deployments, the U7-Pro-Max access point ensures reliable, high-speed connectivity and a seamless user experience.
Specs
What's Included
| Antenna Gain | 2.4 GHz - 4dBi5 GHz - 6 dBi6 GHz - 5.9 dBi |
Network
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| WiFi Standards | 802.11a/b/g/n/ac/ax/be |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 500+ |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 5 GHz - 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)6 GHz - 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| UniFi Network | Version 8.2.93 and later |
Physical
| Weight | 680 g (1.5 lb) |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
Other
| Management Interface | Ethernet |
| Power Method | PoE+ |
| Power Supply | UniFi PoE switch |
| Supported Voltage Range | 44—57V DC |
| Max. Power Consumption | 22W |
| Max. TX Power | 2.4 GHz - 23 dBm5 GHz - 29 dBm6 GHz - 23 dBM |
| Throughput Rate | 2.4 GHz - 688 Mbps5 GHz - 8648 Mbps6 GHz - 5765 Mbps |
| LEDs | White/Blue |
| Button | Factory reset |
| Mounting | Wall, ceiling (Included) |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Box Contents | 1 x U7 Pro Max access point1 x Mounting template level1 x Wall mount plate1 x Multi-purpose mounting plateAll mounting hardware |
