Description

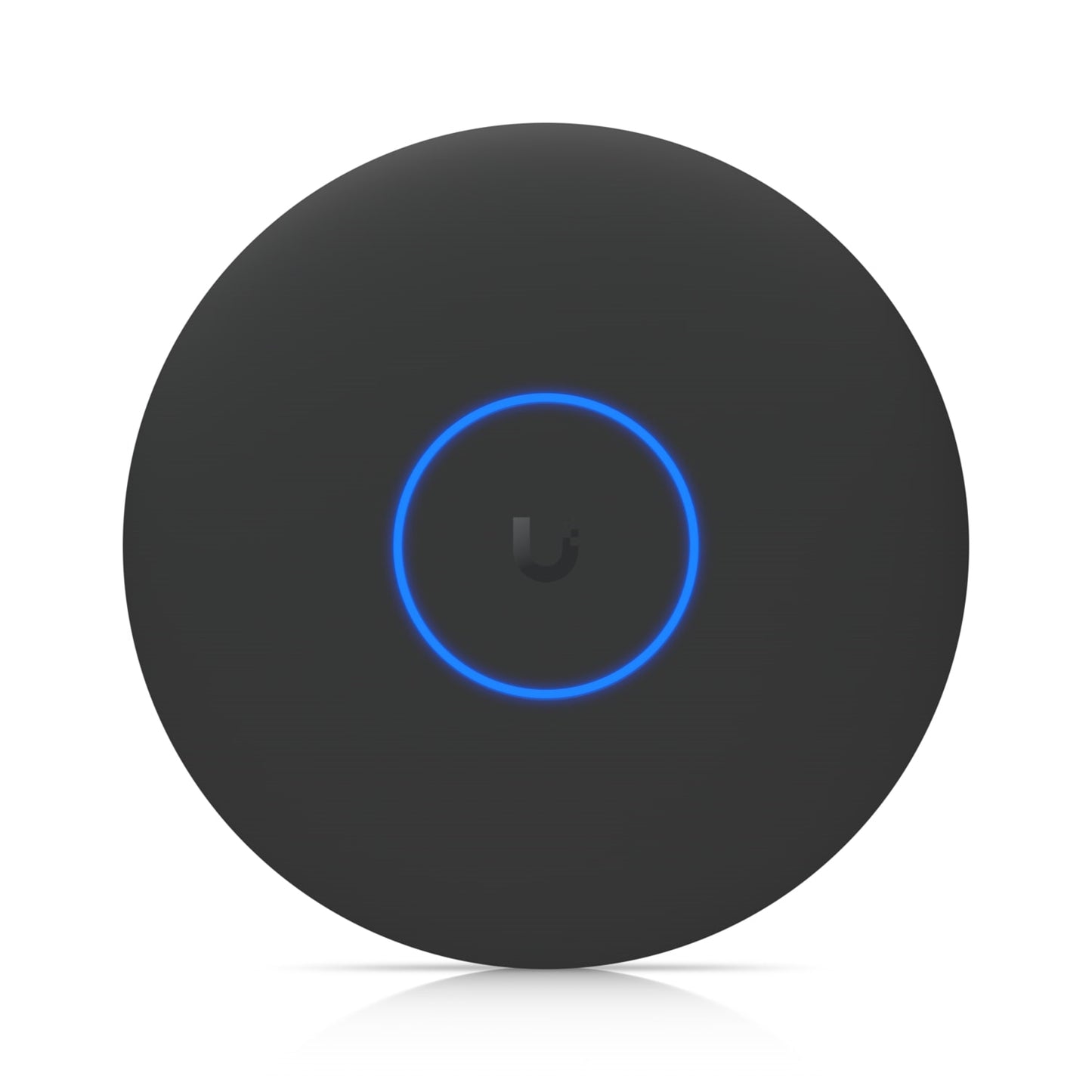

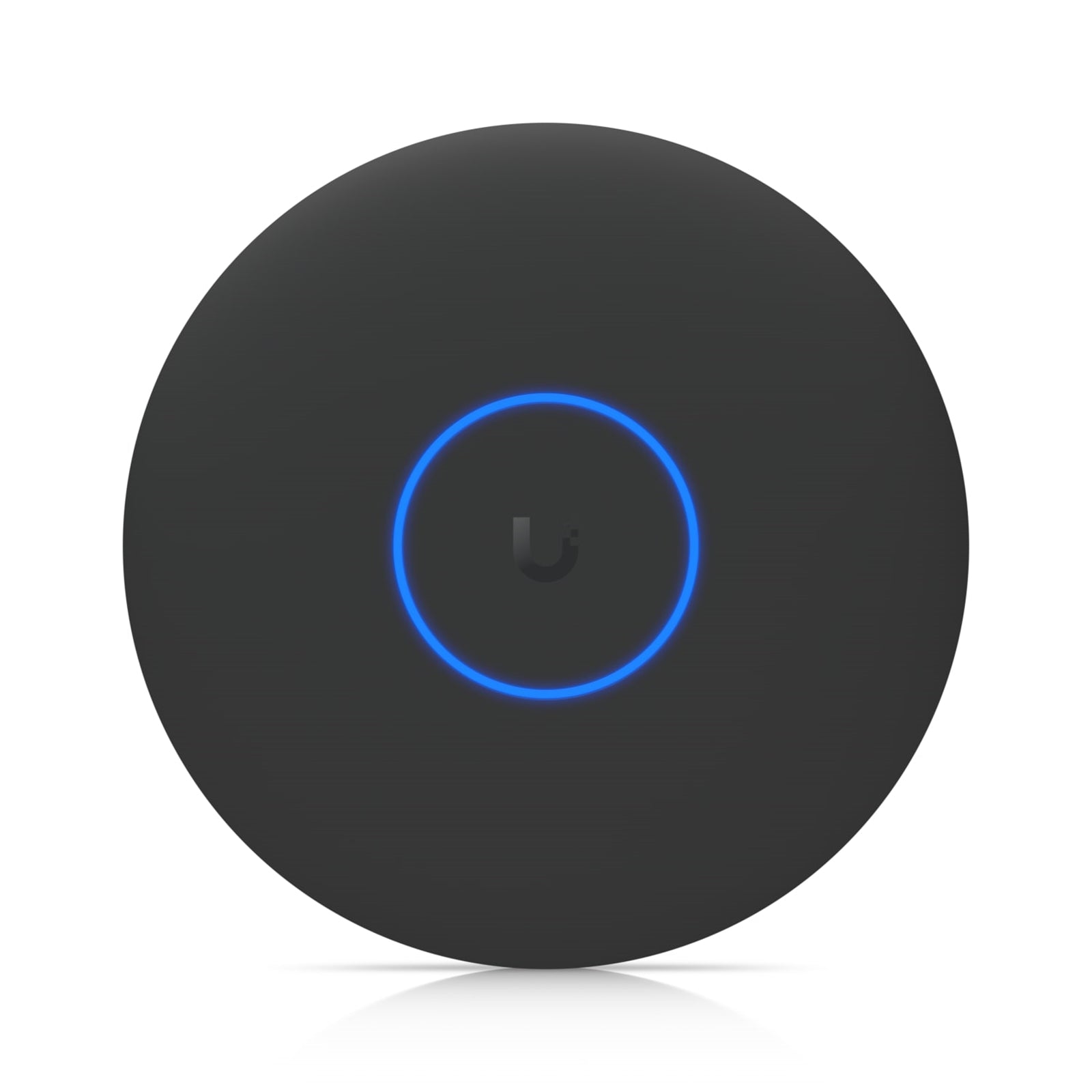

Ubiquiti U7-PRO-XGS UniFi 7 Pro XGS Ceiling Mounted 8 Stream WiFi 7 6GHz 10GbE Access Point - Black
WiFi 7 with 6 GHz support8 spatial streamsReal-time spectral analysis for enhanced channel selection160 m2 (1,750 ft2) coverage500+ connected devicesPowered using PoE++10 GbE uplink 5 GHz4 x 4 (DL/UL MU-MIMO) 2.4 GHz2 x 2 (DL/UL MU-MIMO) 5 GHz8.6 Gbps (BW240) 2.4 GHz688 Mbps (BW40) 5 GHz6 dBi 2.4 GHz4 dBi 5 GHz29 dBm 2.4 GHz23 dBm 802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5)6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Specs
What's Included
| Antenna Gain | 6 GHz6 dBi |
Network
| Wireless Meshing | Yes |
| WiFi Speed Limiting | Yes |
| WiFi Schedules | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Networking Interface | (1) 10 GbE RJ45 port |
Physical
| WiFi Standard | WiFi 7 |
| Spatial Streams | 8 |
| Coverage Area | 160 m2 (1,750 ft2) |
| Max. Client Count | 500+ |
| Uplink | 10 GbE |
| Mounting | Ceiling, Wall(Lite Mount Included) |
| Power Method | PoE++ |
| Weight | 800 g (1.8 lb) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
Other
| Max. Data Rate | 6 GHz5.8 Gbps (BW320) |
| Max. TX Power | 6 GHz24 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Zero-Wait DFS | Yes |
| Advanced Radio Management | Yes |
| Real-Time Spectral Analysis | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| Client Device Isolation | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Max. Power Consumption | 29W |
| Supported Voltage Range | 42.5 - 57V DC |
| Management | Ethernet |
| LEDs | System |
| Certifications | CE, FCC, IC |
