Description

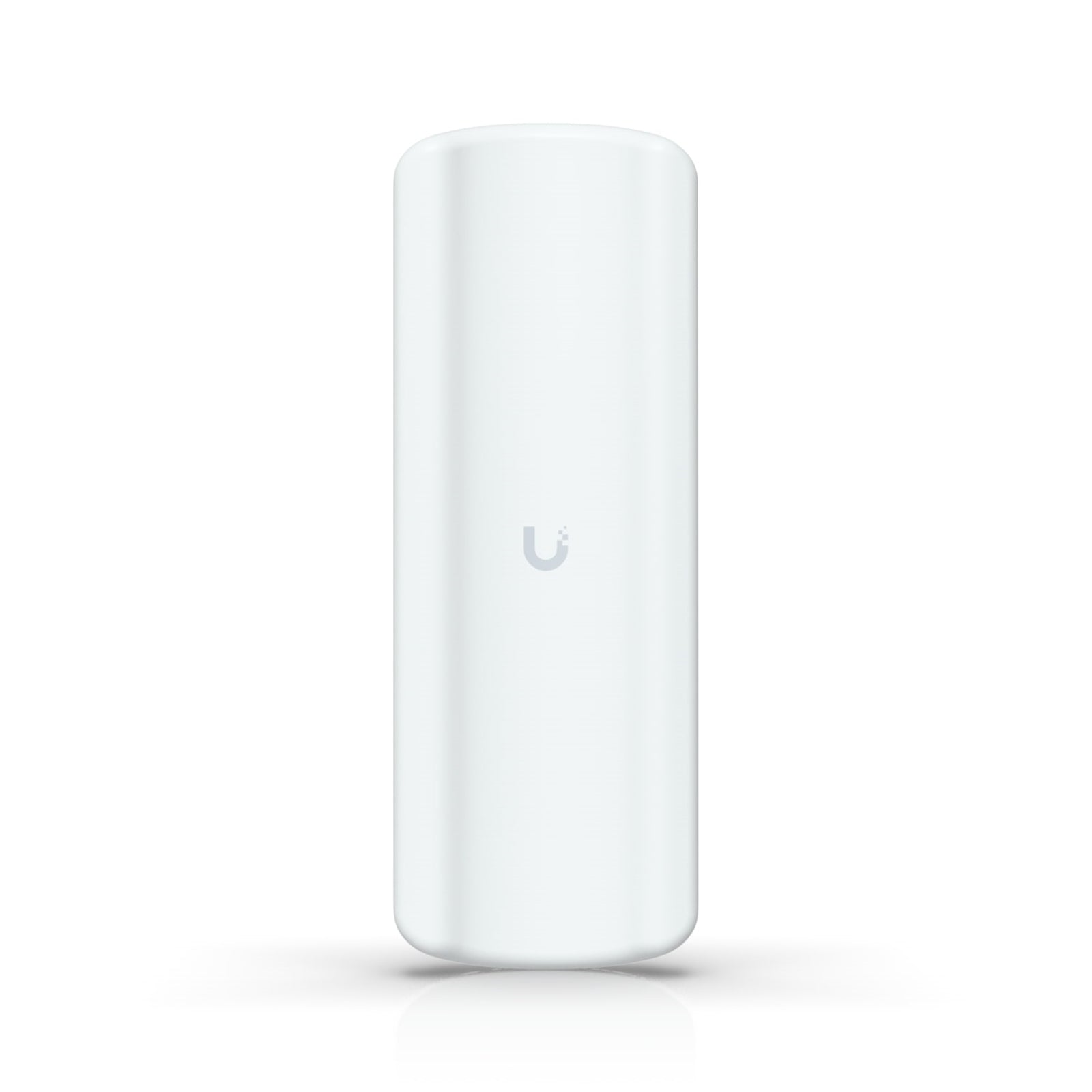

Ubiquiti UDB-Pro-Sector UniFi Device Bridge Pro Sector WiFi 5 Point To Multi-Point Link (PtMP)
5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.
Specs
What's Included
| Antenna Gain | 5 GHz - 17 dBi |
| Antennas | Internal |
Network
| Wireless Security | WPA2 AES |
| Networking Interface | (1) GbE RJ45 port |
Audio
| Channel Bandwidth | 20/40 MHz |
Physical
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| Weight | Device: 782 g (1.7 lb)With mount: 835 g (1.8 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
Other
| Max. Data Rate | 5 GHz - 400 Mbps (BW40) |
| Max. TX Power | 5 GHz - 25 dBm |
| Max. Conducted TX Power | 25 dBm (Combined) |
| Supported Data Rates | 802.11ac (WiFi 5) - 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5—57V DC |
| Management | EthernetWiFi |
| Wind Loading | 128.2N at 200 km/h |
| Pole Mount Diameter | 0.9—2.4" (24—60 mm) |
| Button | (1) Factory-reset |
| LEDs | System - Power, Ethernet |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
