Description

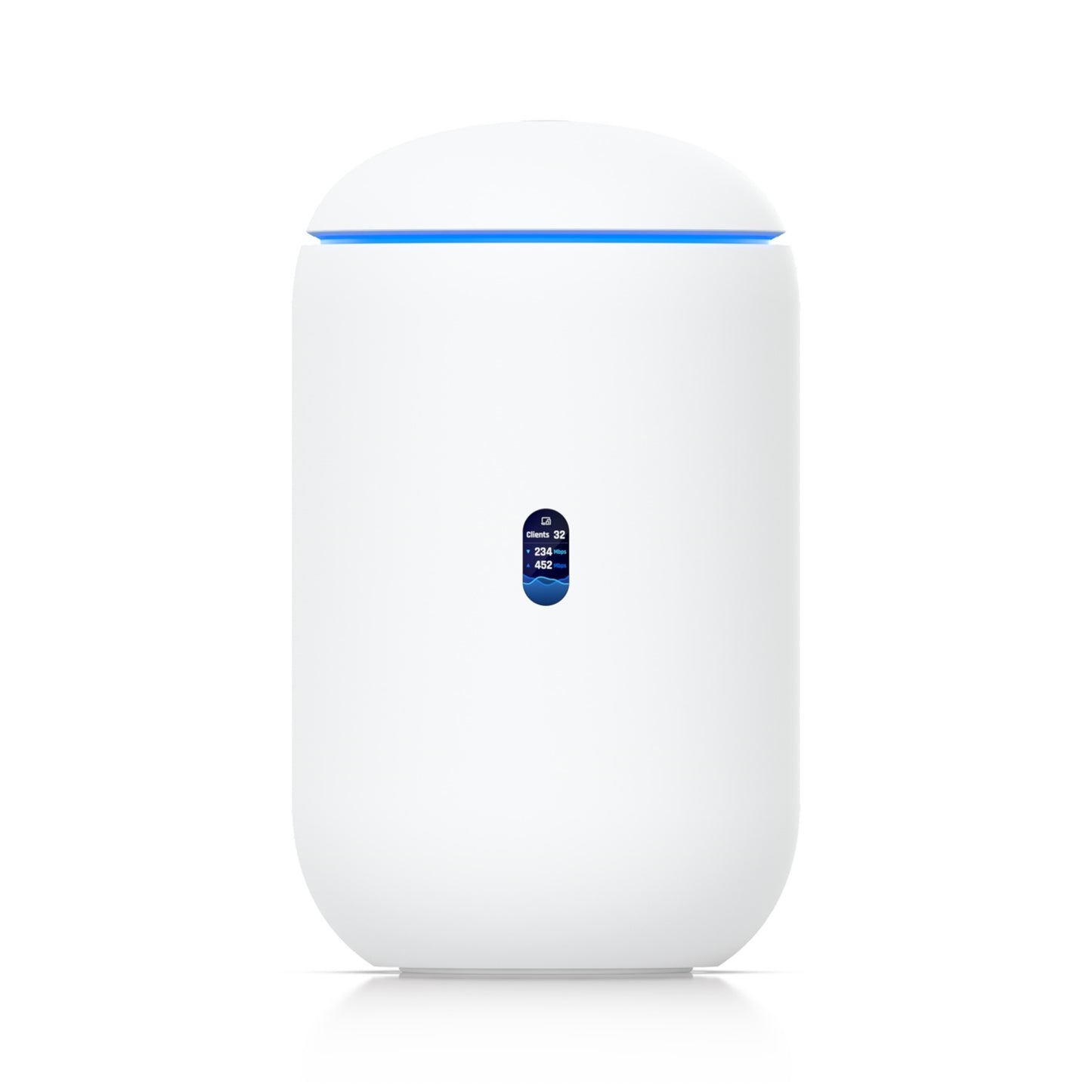

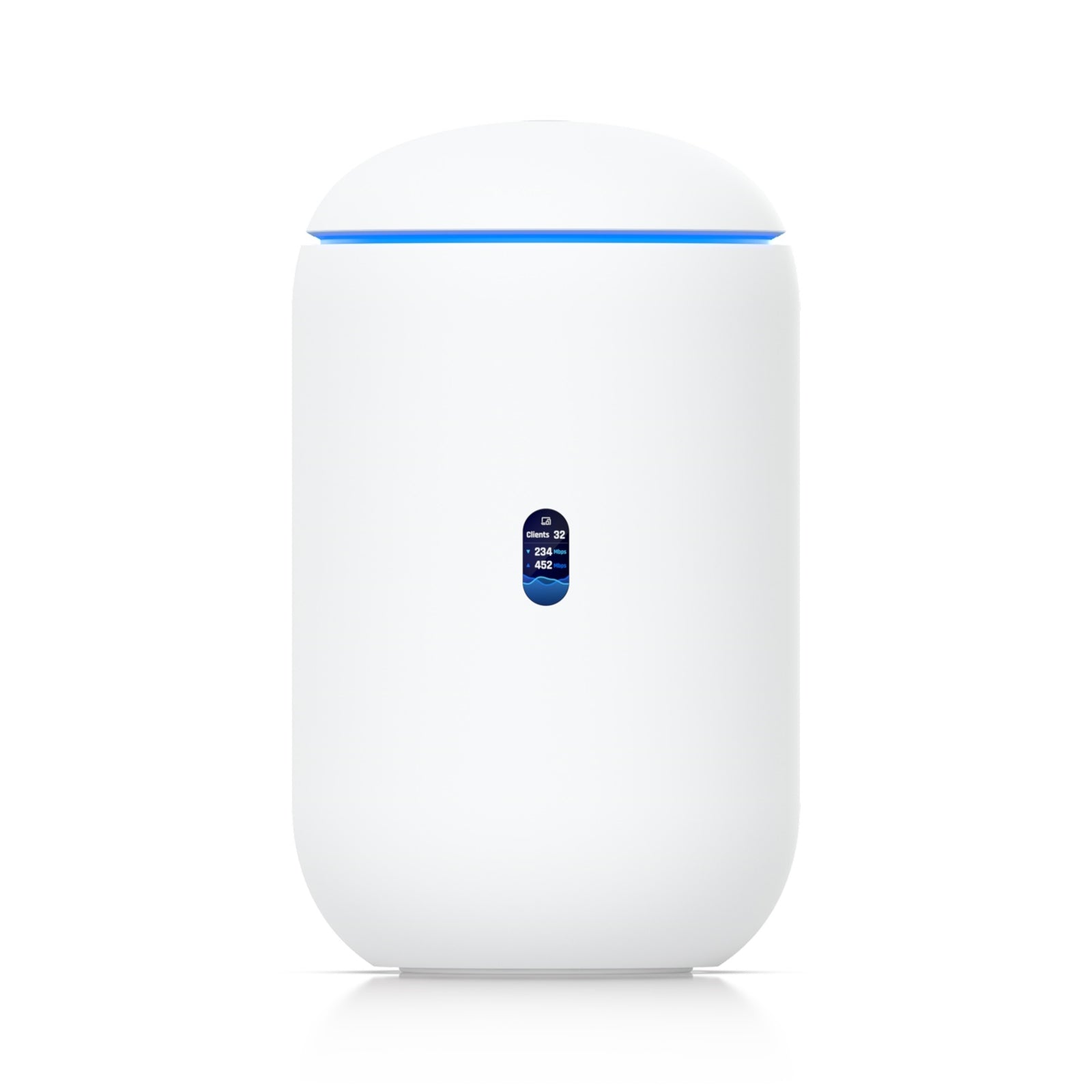

Ubiquiti UDR7 UniFi Dream Router 7 Combined 2.5 GBE Switch, NVR, Router, WiFi 7 Access Point and Gateway
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support. ProtectYes AccessYes TalkYes ConnectYes IPsecYes OpenVPNYes Teleport Zero-Configuration VPNYes WireGuardYes OpenVPNYes L2TPYes WireGuardYes 5 GHz4.3 Gbps 2.4 GHz688 Mbps 5 GHz2 x 2 (DL/UL MU-MIMO) 2.4 GHz2 x 2 (DL/UL MU-MIMO) 5 GHz7 dBi 2.4 GHz5 dBi 802.11b1, 2, 5.5, 11 Mbps 802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6/6E)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11be (WiFi 7)7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) 5 GHz26 dBm 2.4 GHz23 dBm
Specs
Processor
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
Memory
| System Memory | 3 GB |
Storage Controllers
| NVR Storage | Pre-installed 64GB microSD for NVR |
What's Included
| Antenna Gain | 6 GHz6 dBi |
Expansion Slots
| Expansion Slot | MicroSD Card |
Network
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
Physical
| UniFi Application Suite | NetworkYes |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD(2) 2K(1) 4K |
| Simultaneous Users Connected | 300+ |
| Default WAN Ports | (1) 10G SFP+(1) 2.5 GbE RJ45 |
| LAN Ports | (3) 2.5 GbE RJ45 including (1) PoE |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI and Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | Yes |
| License-Free SD-WAN | Yes |
| Site to Site VPN | Site MagicYes |
| VPN Server | Identity Endpoint One-Click VPNYes |
| VPN Client | OpenVPNYes |
| Multi-WAN Load Balancing | Yes |
| Dynamic Routing - OSPF | Yes |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| MAC Address Table Size | 2000 |
| Policy-based WAN and VPN Routing | Yes |
| Customizable DHCP Server | Yes |
| IPv6 ISP Support | Yes |
| IGMP Proxy | Yes |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput | 6 GHz5.7 Gbps |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |
Other
| Max. BSSIDs | 4 per Radio |
| Supported Data Rates | 802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| PoE Budget | 15.4W |
| Voltage Range POE Mode | 44-57V |
| Max. Power Consumption | 26W (Excluding PoE output) |
| Power Method | Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz |
| Max. TX Power | 6 GHz24 dBm |
| Supported Voltage Range | 100-240V AC |
| LCM Display | 0.96" status display |
| Management | EthernetBluetooth |
| System LEDs | System |
| Certifications | CE, FCC, IC |
