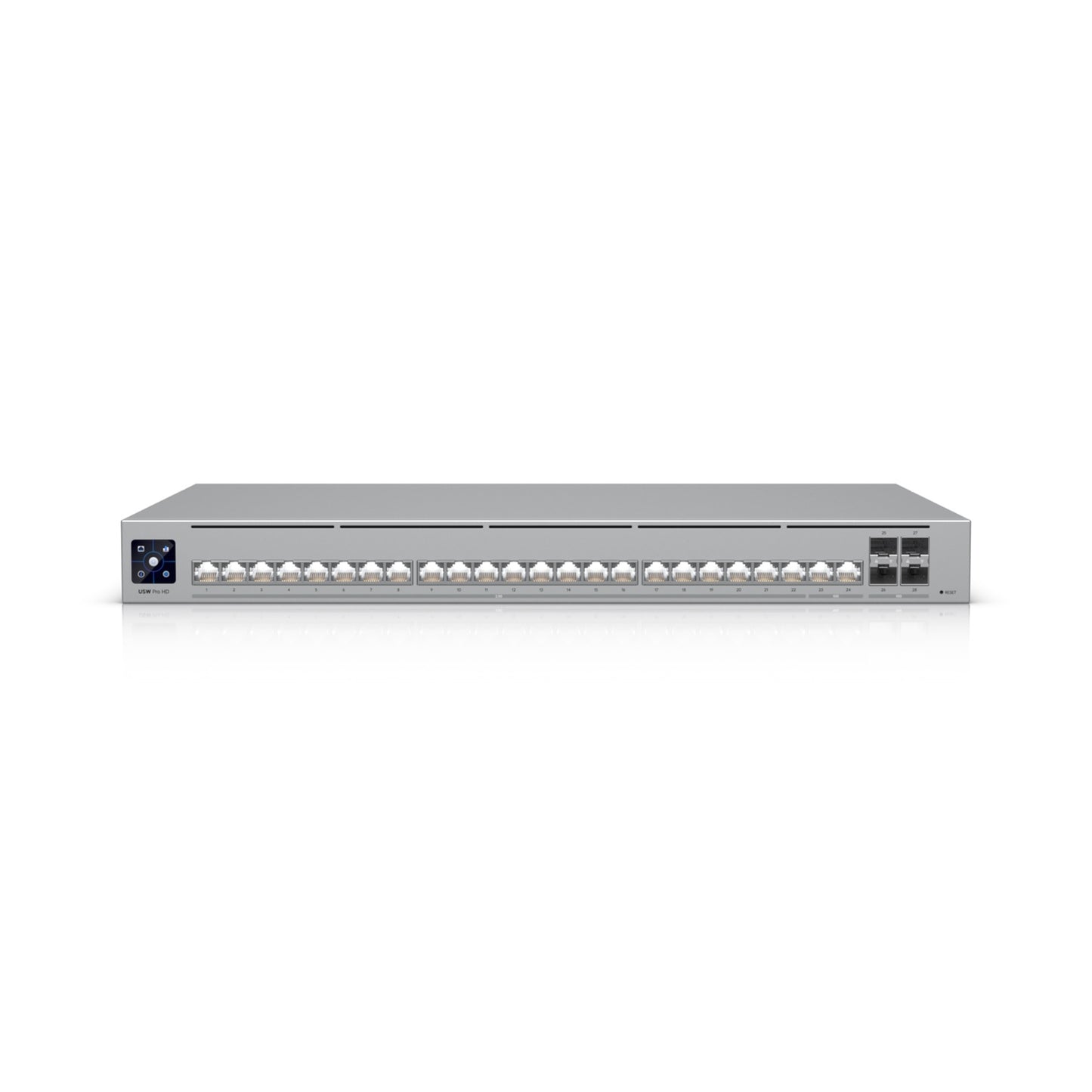

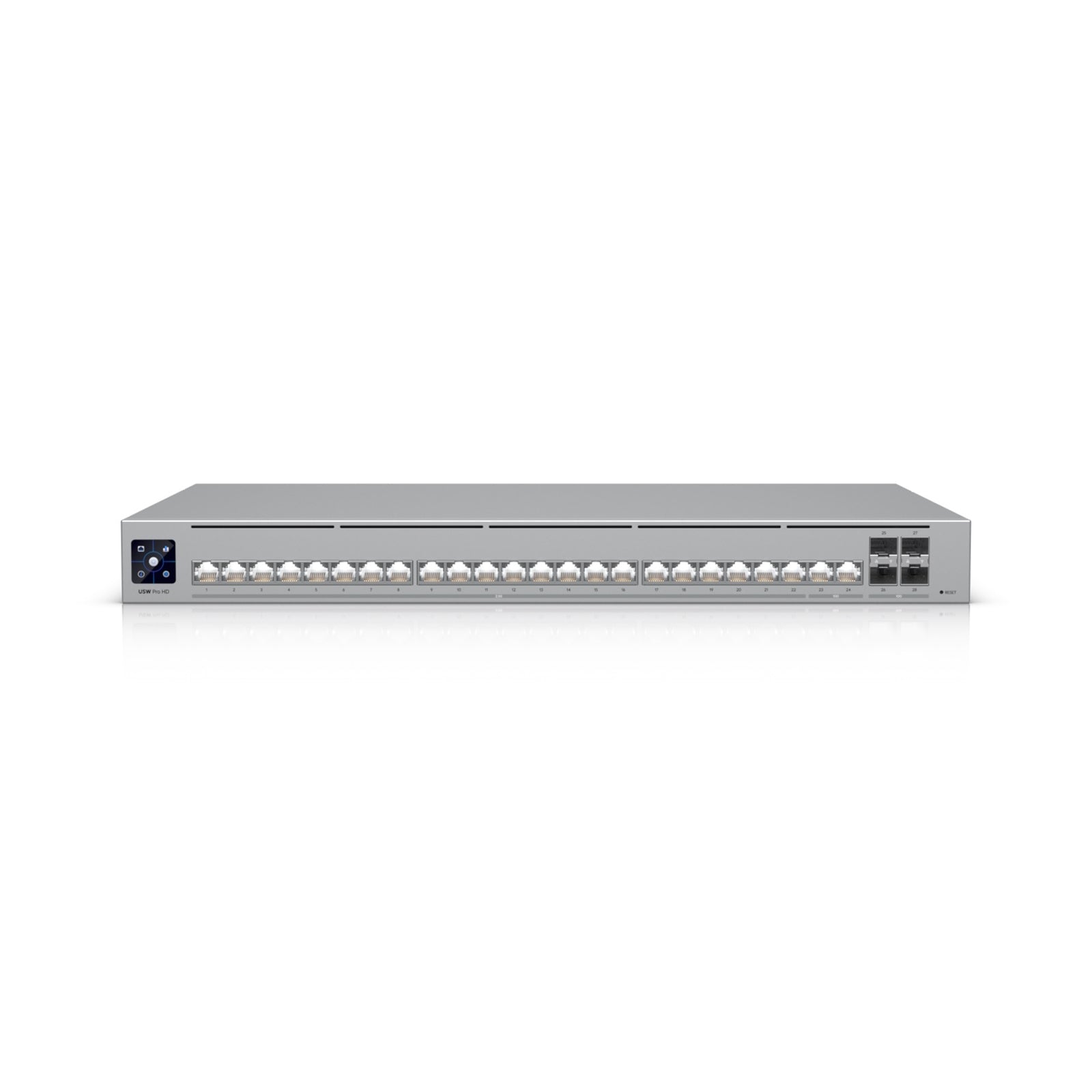

Ubiquiti USW-PRO-HD-24 UniFi Switch Pro HD 24 Professional Layer 3 Managed Switch
Professional-grade, Layer 3 Etherlighting switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports. 10 GbE RJ452 10G SFP+4 IPv4 Routes12,000
Specs
Rear Panel I/O Ports
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Max. Power Consumption | 60W |
| Power Method | (1) Universal input, 100—240V AC, 50/60 Hz(1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100—240V AC |
| Management | EthernetAR |
| Heat Dissipation (Excluding PoE Output) | 102.36 BTU/hr |
| Weight | Without mounting brackets: 4.2 kg (9.2 lb)With mounting brackets: 4.3 kg (9.4 lb) |
| Enclosure Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Certifications | CE, FCC, IC |
Physical
| Port Layout | 2.5 GbE RJ4522 |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting | Yes |
| Switching Capacity | 230 Gbps |
| Total Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171.12 Mpps |
| Supported VLANs | 1000 |
| MAC Address Table Size | 32000 |
| L3 Table Size | ARP Entries12,000 |
| Packet Buffer Size | 2 MB |
| DHCP Server (Local Networks) | Yes |
| STP and RSTP | Yes |
| QoS (DSCP | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping and Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
